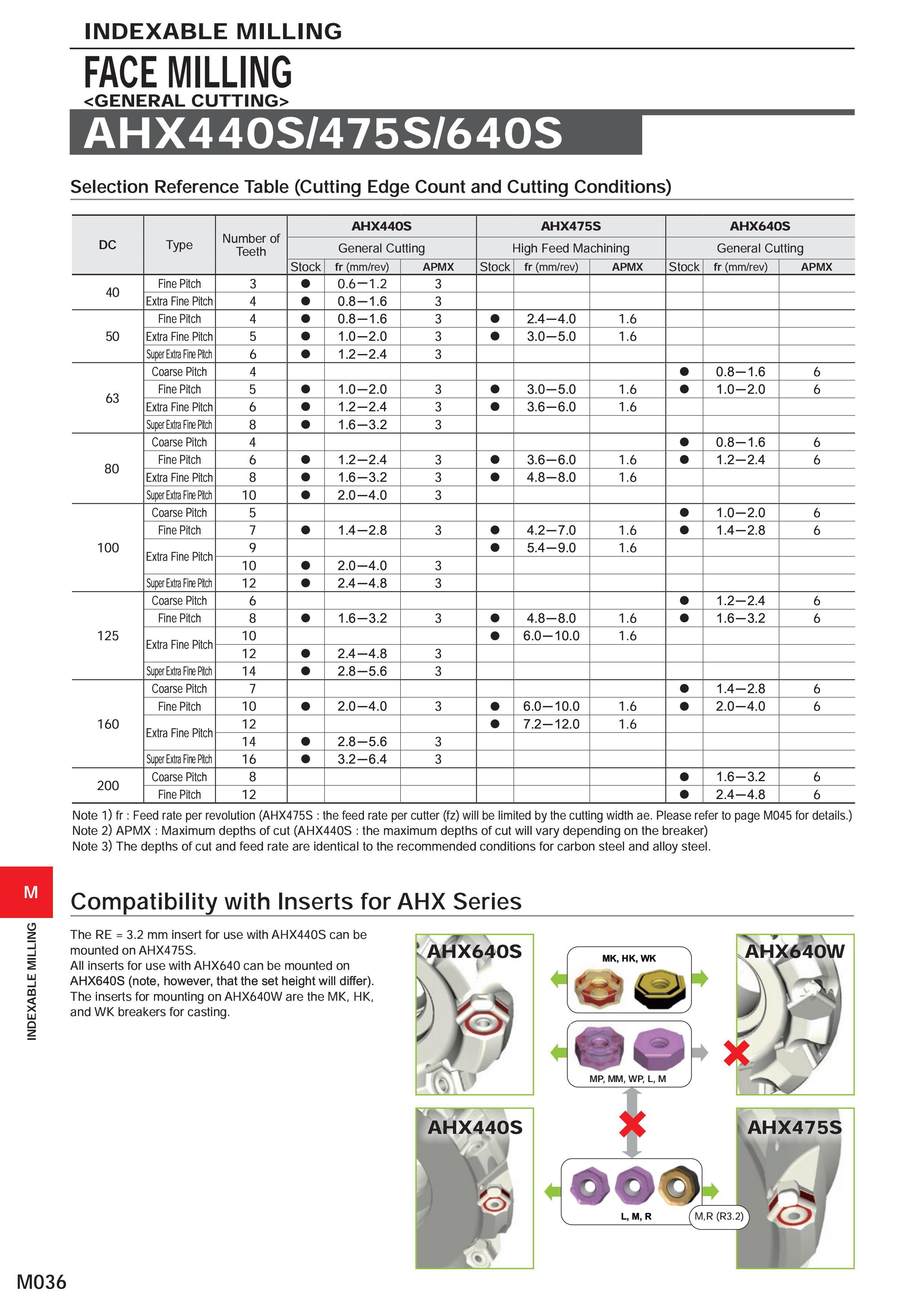

INDEXABLE MILLING M M036 INDEXABLE MILLING FACE MILLING GENERAL CUTTING> AHX440S/475S/640S Selection Reference Table (Cutting Edge Count and Cutting Conditions) DC Type Number of Teeth AHX440S AHX475S AHX640S General Cutting High Feed Machining General Cutting Stock fr (mm/rev) APMX Stock fr (mm/rev) APMX Stock fr (mm/rev) APMX 40 Fine Pitch 3 0.6-1.2 3 Extra Fine Pitch 4 0.8-1.6 3 50 Fine Pitch 4 0.8-1.6 3 2.4 4.0 1.6 Extra Fine Pitch 5 1.0-2.0 3 3.0 5.0 1.6 Super Extra Fine Ptch 6 1.2-2.4 3 63 Coarse Pitch 4 0.8 1.6 6 Fine Pitch 5 1.0-2.0 3 3.0 5.0 1.6 1.0-2.0 6 Extra Fine Pitch 6 1.2-2.4 3 3.6 6.0 1.6 Super Extra Fine Pitch 8 1.6-3.2 3 80 Coarse Pitch 4 0.8 1.6 6 Fine Pitch 6 1.2-2.4 3 3.6 6.0 1.6 1.2-2.4 6 Extra Fine Pitch 8 1.6-3.2 3 4.8 8.0 1.6 Super Extra Fine Ptch 10 2.0 4.0 3 100 Coarse Pitch 5 1.0-2.0 6 Fine Pitch 7 1.4-2.8 3 4.2 7.0 1.6 1.4-2.8 6 Extra Fine Pitch 9 5.4 9.0 1.6 10 2.0 4.0 3 Super Extra Fine Ptch 12 2.4 4.8 3 125 Coarse Pitch 6 1.2-2.4 6 Fine Pitch 8 1.6 3.2 3 4.8 8.0 1.6 1.6-3.2 6 Extra Fine Pitch 10 6.0-10.0 1.6 12 2.4 4.8 3 Super Extra Fine Plch 14 2.8 5.6 3 160 Coarse Pitch 7 1.4-2.8 6 Fine Pitch 10 2.0 4.0 3 6.0-10.0 1.6 2.0 4.0 6 Extra Fine Pitch 12 7.2-12.0 1.6 14 2.8 5.6 3 Super Extra Fine Plch 16 3.2 6.4 3 200 Coarse Pitch 8 1.6-3.2 6 Fine Pitch 12 2.4 4.8 6 Note 1) fr: Feed rate per revolution (AHX475S : the feed rate per cutter (fz) will be limited by the cutting width ae. Please refer to page M045 for details.) Note 2) APMX : Maximum depths of cut (AHX440S : the maximum depths of cut will vary depending on the breaker) Note 3) The depths of cut and feed rate are identical to the recommended conditions for carbon steel and alloy steel. Compatibility with Inserts for AHX Series The RE = 3.2 mm insert for use with AHX440S can be mounted on AHX475S. All inserts for use with AHX640 can be mounted on AHX640S (note, however, that the set height will differ). The inserts for mounting on AHX640W are the MK, HK, and WK breakers for casting. AHX475S ¥ 00 5) L, M, R
