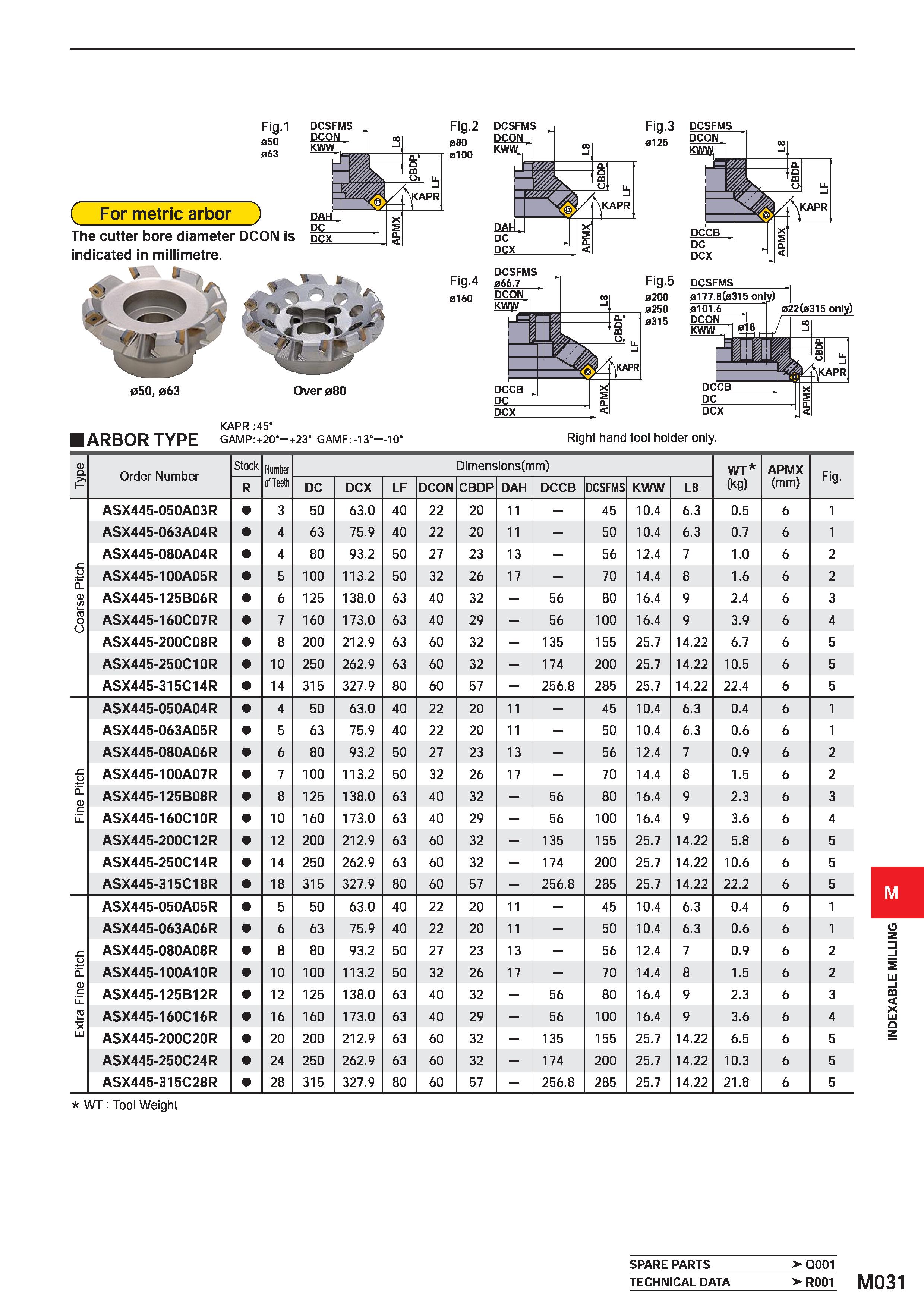

Fig-1 050 063 DCSFMS DCON is DCOIM Kww -m DAH DC DCX ( For metric arbor The cutter bore diameter indicated in millimetre. Fig.2 080 0100 DCSFMS Fig.4 0160 050, 063 IARBOR TYPE Over 080 KAPR :45° GAMP:+20’ +23" GAMF:-13' 10" Right hand tool holder only. o Q. Order Number Stock Number Dimensions(mm) WT APMX Fig. R of Teeth DC DCX LF DCON CBDP DAH DCCB DCSFMS KWW L8 (kg) (mm) ASX445-050A03R 3 50 63.0 40 22 20 11 - 45 10.4 6.3 0.5 6 1 ASX445-063A04R 4 63 75.9 40 22 20 11 - 50 10.4 6.3 0.7 6 1 ASX445-080A04R 4 80 93.2 50 27 23 13 - 56 12.4 7 1.0 6 2 .c o ASX445-100A05R 5 100 113.2 50 32 26 17 - 70 14.4 8 1.6 6 2 D 11 ASX445-125B06R 6 125 138.0 63 40 32 - 56 80 16.4 9 2.4 6 3 ra ASX445-160C07R 7 160 173.0 63 40 29 - 56 100 16.4 9 3.9 6 4 ASX445-200C08R 8 200 212.9 63 60 32 - 135 155 25.7 14.22 6.7 6 5 ASX445-250C1 OR 10 250 262.9 63 60 32 - 174 200 25.7 14.22 10.5 6 5 ASX445-315C14R 14 315 327.9 80 60 57 - 256.8 285 25.7 14.22 22.4 6 5 ASX445-050A04R 4 50 63.0 40 22 20 11 - 45 10.4 6.3 0.4 6 1 ASX445-063A05R 5 63 75.9 40 22 20 11 - 50 10.4 6.3 0.6 6 1 ASX445-080A06R 6 80 93.2 50 27 23 13 - 56 12.4 7 0.9 6 2 jz u ASX445-100A07R 7 100 113.2 50 32 26 17 - 70 14.4 8 1.5 6 2 E u ASX445-125B08R 8 125 138.0 63 40 32 - 56 80 16.4 9 2.3 6 3 c Ll. ASX445-160C10R 10 160 173.0 63 40 29 - 56 100 16.4 9 3.6 6 4 ASX445-200C12R 12 200 212.9 63 60 32 - 135 155 25.7 14.22 5.8 6 5 ASX445-250C14R 14 250 262.9 63 60 32 - 174 200 25.7 14.22 10.6 6 5 ASX445-315C18R 18 315 327.9 80 60 57 - 256.8 285 25.7 14.22 22.2 6 5 ASX445-050A05R 5 50 63.0 40 22 20 11 - 45 10.4 6.3 0.4 6 1 ASX445-063A06R 6 63 75.9 40 22 20 11 - 50 10.4 6.3 0.6 6 1 u E ASX445-080A08R 8 80 93.2 50 27 23 13 - 56 12.4 7 0.9 6 2 ASX445-100A1 OR 10 100 113.2 50 32 26 17 - 70 14.4 8 1.5 6 2 o c Ll. ASX445-125B12R 12 125 138.0 63 40 32 - 56 80 16.4 9 2.3 6 3 ra ASX445-160C16R 16 160 173.0 63 40 29 - 56 100 16.4 9 3.6 6 4 LU ASX445-200C20R 20 200 212.9 63 60 32 - 135 155 25.7 14.22 6.5 6 5 ASX445-250C24R 24 250 262.9 63 60 32 - 174 200 25.7 14.22 10.3 6 5 ASX445-315C28R 28 315 327.9 80 60 57 - 256.8 285 25.7 14.22 21.8 6 5 WT : Tool Weight SPARE PARTS TECHNICAL DATA > Q001 > R001
