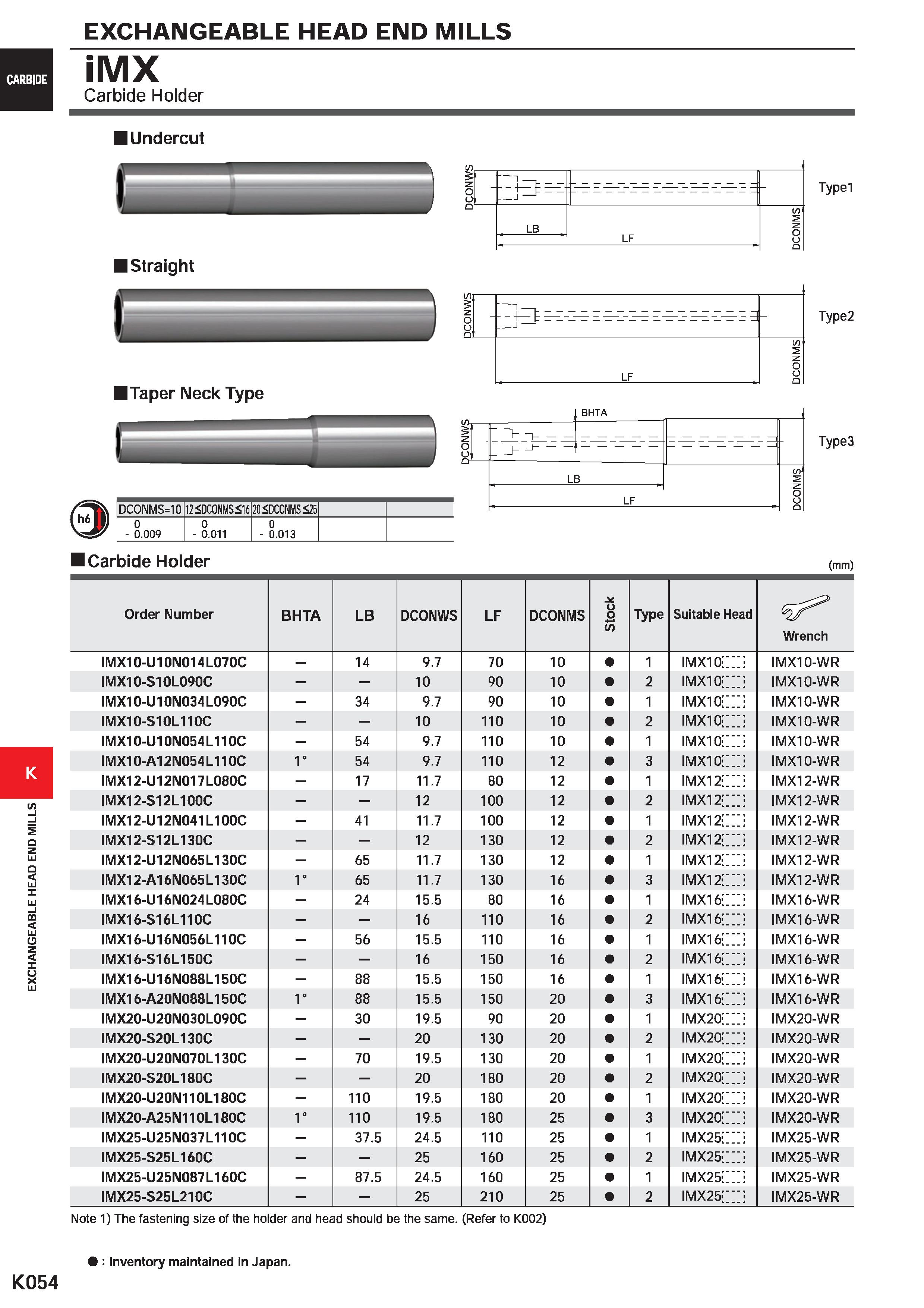

EXCHANGEABLE HEAD END MILLS EXCHANGEABLE HEAD END MILLS CARBIDE K iMX Carbide Holder Undercut LB /) 5 2 LF Typel I Straight ITaper Neck Type LF Type2 Type3 I Carbide Holder (mm) Order Number BHTA LB DCONWS LF DCONMS (/> Type Suitable Head Wrench IMX10-U10N014L070C 14 9.7 70 10 1 IMX10 - IMX10-WR IMX10-S10L090C - 10 90 10 2 IMX10 - IMX10-WR IMX10-U1ON034L090C - 34 9.7 90 10 1 IMX10 : IMX10-WR IMX10-S10L110C - 10 110 10 2 IMX10 IMX10-WR IMX10-U10N054L110C 54 9.7 110 10 1 IMX10 IMX10-WR IMX10-A12N054L110C 1° 54 9.7 110 12 3 IMX10 IMX10-WR IMX12-U12N017L080C 17 11.7 80 12 1 IMX12 IMX12-WR IMX12-S12L100C - 12 100 12 2 IMX12 : IMX12-WR IMX12-U12N041L100C - 41 11.7 100 12 1 IMX12 : IMX12-WR IMX12-S12L130C - 12 130 12 2 IMX12 IMX12-WR IMX12-U12N065L130C - 65 11.7 130 12 1 IMX12 IMX12-WR IMX12-A16N065L130C 1° 65 11.7 130 16 3 IMX12 IMX12-WR IMX16-U16N024L080C 24 15.5 80 16 1 IMX16 IMX16-WR IMX16-S16L110C 16 110 16 2 IMX16 IMX16-WR IMX16-U16N056L11OC 56 15.5 110 16 1 IMX16 IMX16-WR IMX16-S16L150C - 16 150 16 2 IMX16 IMX16-WR IMX16-U16N088L150C - 88 15.5 150 16 1 IMX16 : IMX16-WR IMX16-A20N088L150C 1° 88 15.5 150 20 3 IMX16 IMX16-WR IMX20-U20N030L090C 30 19.5 90 20 1 IMX20 IMX20-WR IMX20-S20L130C 20 130 20 2 IMX20 IMX20-WR IMX20-U20N070L130C 70 19.5 130 20 1 IMX20 IMX20-WR IMX20-S20L180C - 20 180 20 2 IMX20 IMX20-WR IMX20-U20N110L180C - 110 19.5 180 20 1 IMX20 : IMX20-WR IMX20-A25N110L180C 1° 110 19.5 180 25 3 IMX20 IMX20-WR IMX25-U25N037L110C 37.5 24.5 110 25 1 IMX25 IMX25-WR IMX25-S25L160C 25 160 25 2 IMX25 IMX25-WR IMX25-U25N087L160C 87.5 24.5 160 25 1 IMX25 IMX25-WR IMX25-S25L210C - 25 210 25 2 IMX25 : IMX25-WR Note 1) The fastening size of the holder and head should be the same. (Refer to K002) : Inventory maintained in Japan. K054
