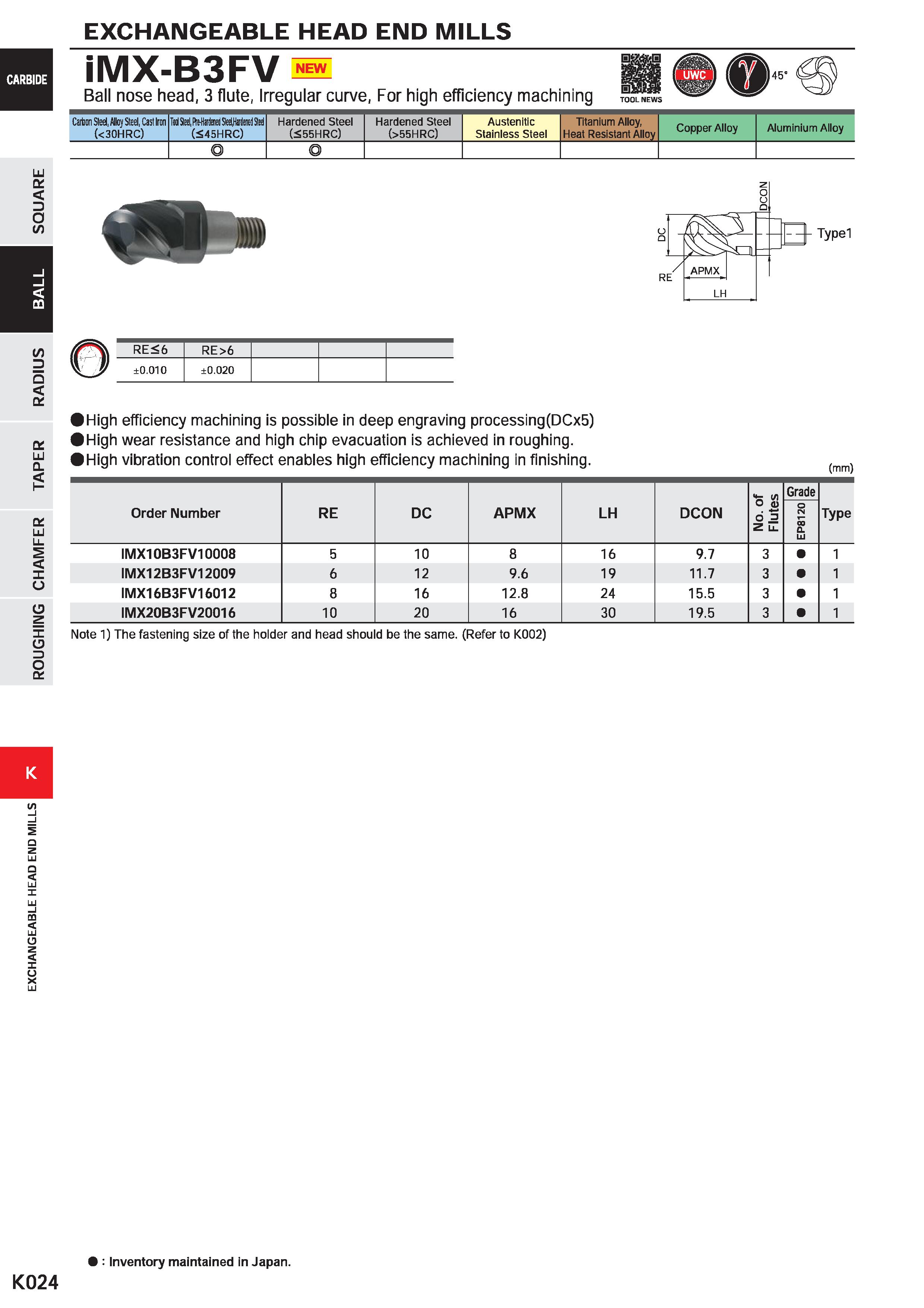

EXCHANGEABLE HEAD END MILLS iMX-B3FV NEW Ball nose head, 3 flute, Irregular curve, For high efficiency machining Carton Sled, Alloj Steel, Cast Iron (<30HRC) Tod Sari, fttMnerl SHIMnd SH (545HRC) Hardened Steel ( 55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy LU D o /> LU Q. X 0 cd z 1 CD 3 o a. RE<6 RE>6 ±0.010 ±0.020 (High efficiency machining is possible in deep engraving processing(DCx5) (High wear resistance and high chip evacuation is achieved in roughing. (High vibration control effect enables high efficiency machining in finishing. (mm) Order Number RE DC APMX LH DCON No. of 1 Flutes Grade o IN CO a UJ Type IMX10B3FV10008 5 10 8 16 9.7 3 1 IMX12B3FV12009 6 12 9.6 19 11.7 3 1 IMX16B3FV16012 8 16 12.8 24 15.5 3 1 IMX20B3FV20016 10 20 16 30 19.5 3 1 Note 1) The fastening size of the holder and head should be the same. (Refer to K002) : Inventory maintained in Japan. K024
