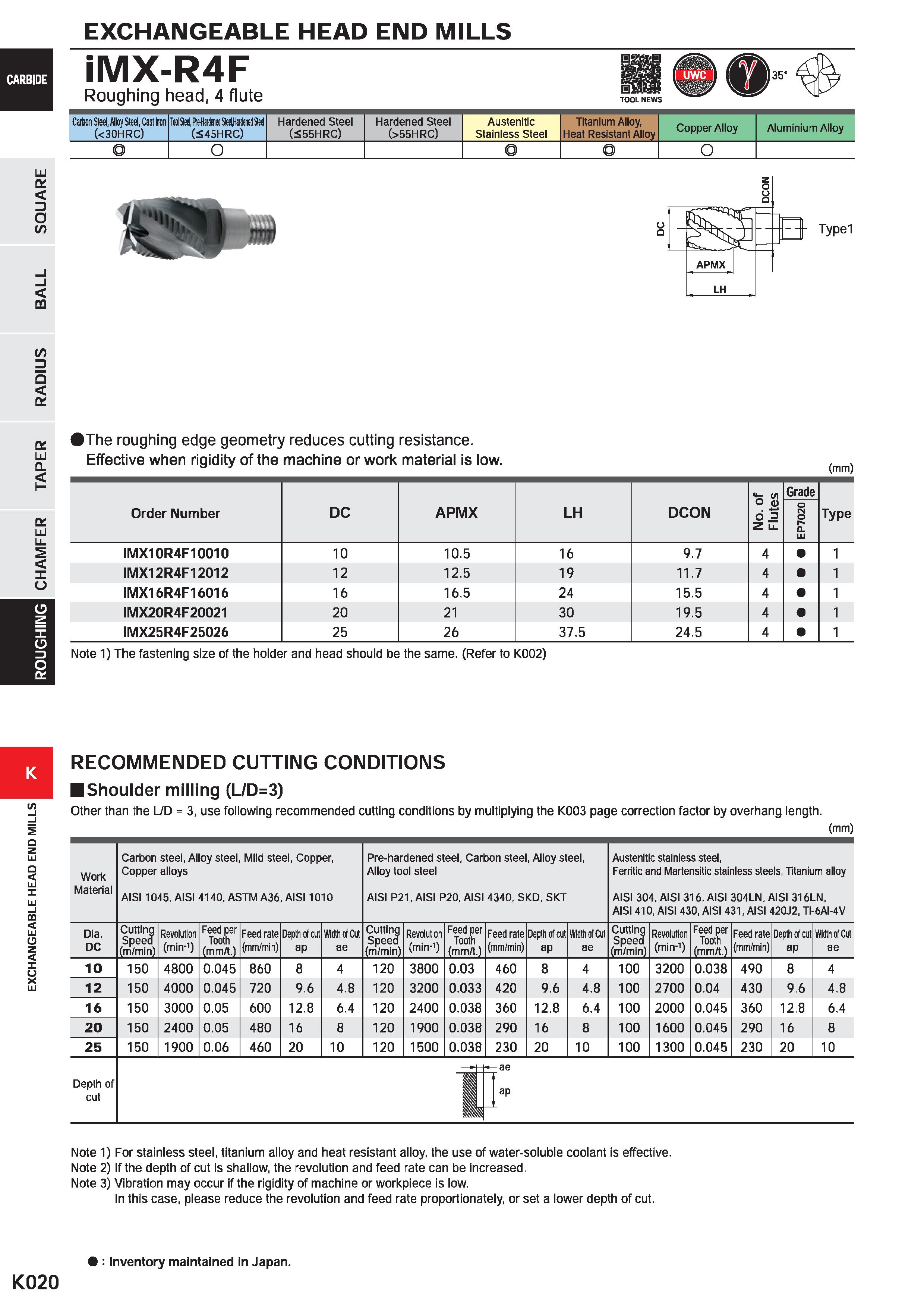

EXCHANGEABLE HEAD END MILLS iMX-R4F Roughing head, 4 flute Carton Sled, Alloj Steel, Cast Iron (<30HRC) Tod Steel, fttMnerl SHIMnd SH (545HRC) Hardened Steel ( 55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy o LU DC a 10 m /> D Q DC DC LlI Q. Uhe roughing edge geometry reduces cutting resistance. Effective when rigidity of the machine or work material is low. (mm) Order Number DC APMX LH DCON No. of 1 Flutes Grade o (N O r- 0. LU Type IMX10R4F10010 10 10.5 16 9.7 4 1 IMX12R4F12012 12 12.5 19 11.7 4 1 IMX16R4F16016 16 16.5 24 15.5 4 1 IMX20R4F20021 20 21 30 19.5 4 1 IMX25R4F25026 25 26 37.5 24.5 4 1 Note 1) The fastening size of the holder and head should be the same. (Refer to K002) 5 Q Z LU LlI X LU l GO LU 0 z 1 u X LU RECOMMENDED CUTTING CONDITIONS Shoulder milling (L/D=3) Other than the L/D = 3, use following recommended cutting conditions by multiplying the K003 page correction factor by overhang length. (mm) Work Material Carbon steel, Alloy steel, Mild steel, Copper, Copper alloys AISI 1045, AISI 4140, ASTM A36, AISI 1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloy AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 150 4800 0.045 860 8 4 120 3800 0.03 460 8 4 100 3200 0.038 490 8 4 12 150 4000 0.045 720 9.6 4.8 120 3200 0.033 420 9.6 4.8 100 2700 0.04 430 96 4.8 16 150 3000 0.05 600 12.8 6.4 120 2400 0.038 360 12.8 6.4 100 2000 0.045 360 12.8 6.4 20 150 2400 0.05 480 16 8 120 1900 0.038 290 16 8 100 1600 0.045 290 16 8 25 150 1900 0.06 460 20 10 120 1500 0.038 230 20 10 100 1300 0.045 230 20 10 Depth of cut 1 ae I ap Note 1) For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased, Note 3) Vibration may occur if the rigidity of machine or workpiece is low. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. : Inventory maintained in Japan. K020
