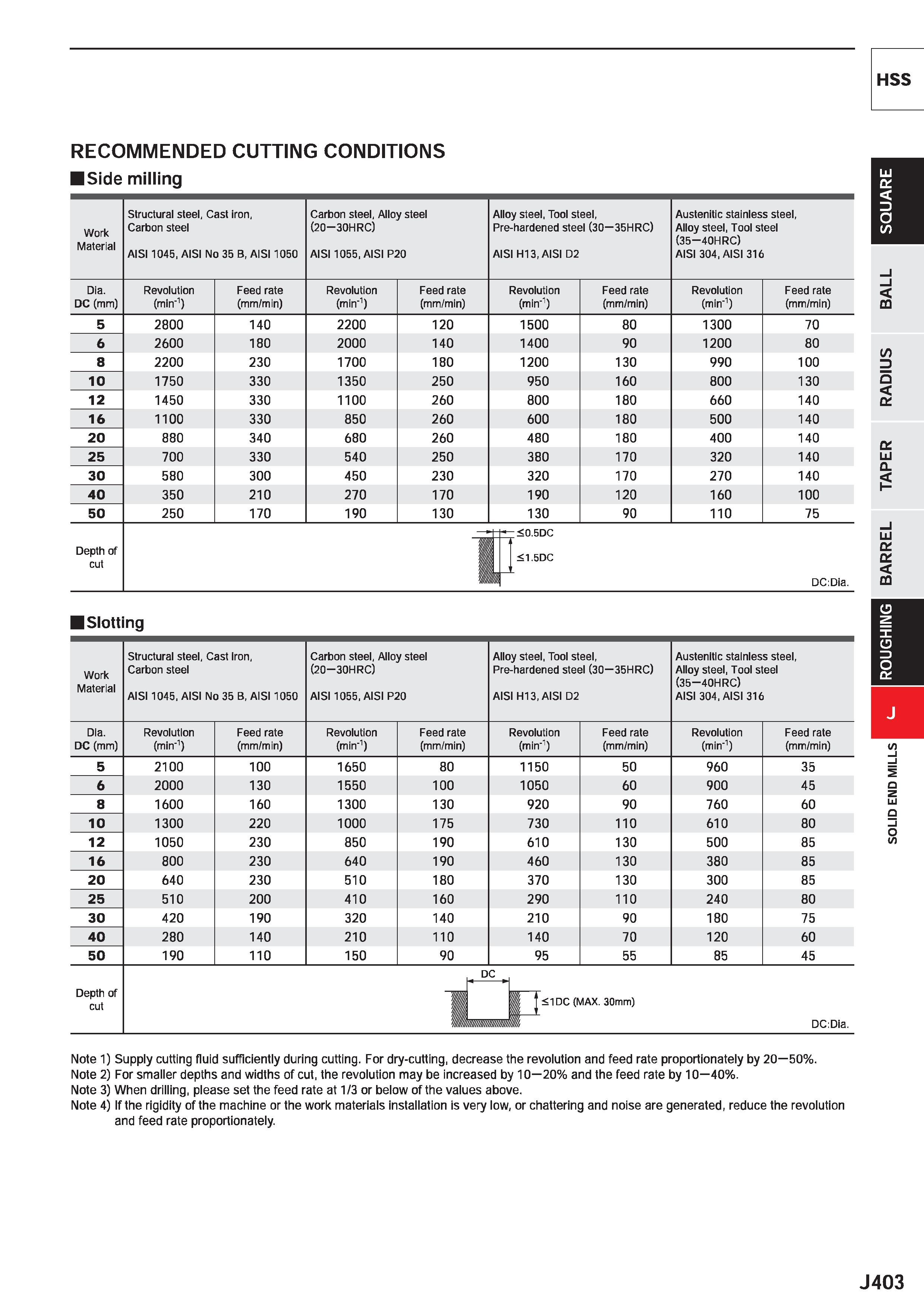

HSS RECOMMENDED CUTTING CONDITIONS Side milling Work Material Structural steel, Cast iron, Carbon steel AIS11045, AISI No 35 B, AIS11050 Carbon steel, Alloy steel (20-30HRC) AIS11055, AISI P20 Alloy steel, Tool steel, Pre-hardened steel (30 35HRC) AISI H13, AISI D2 Austenitic stainless steel, Alloy steel, Tool steel (35 40HRC) AISI 304, AISI 316 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 5 2800 140 2200 120 1500 80 1300 70 6 2600 180 2000 140 1400 90 1200 80 8 2200 230 1700 180 1200 130 990 100 10 1750 330 1350 250 950 160 800 130 12 1450 330 1100 260 800 180 660 140 16 1100 330 850 260 600 180 500 140 20 880 340 680 260 480 180 400 140 25 700 330 540 250 380 170 320 140 30 580 300 450 230 320 170 270 140 40 350 210 270 170 190 120 160 100 50 250 170 190 130 130 90 110 75 m /> 2 Q ct. cc l±j CL Depth of cut f<0.5DC 1.5DC DC: Dia. I Slotting Work Material Structural steel, Cast iron, Carbon steel AIS11045, AISI No 35 B, AIS11050 Carbon steel, Alloy steel (20-30HRC) AIS11055, AISI P20 Alloy steel, Tool steel, Pre-hardened steel (30 35HRC) AISI H13, AISI D2 Austenitic stainless steel, Alloy steel, Tool steel (35-40HRC) AISI 304, AISI 316 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 5 2100 100 1650 80 1150 50 960 35 6 2000 130 1550 100 1050 60 900 45 8 1600 160 1300 130 920 90 760 60 10 1300 220 1000 175 730 110 610 80 12 1050 230 850 190 610 130 500 85 16 800 230 640 190 460 130 380 85 20 640 230 510 180 370 130 300 85 25 510 200 410 160 290 110 240 80 30 420 190 320 140 210 90 180 75 40 280 140 210 110 140 70 120 60 50 190 110 150 90 95 55 85 45 o in Depth of cut 1 DC (MAX. 30mm) DC: Dia. Note 1) Supply cutting fluid sufficiently during cutting. For dry-cutting, decrease the revolution and feed rate proportionately by 20 50%. Note 2) For smaller depths and widths of cut, the revolution may be increased by 10 20% and the feed rate by 10 40%. Note 3) When drilling, please set the feed rate at 1/3 or below of the values above. Note 4) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. J403
