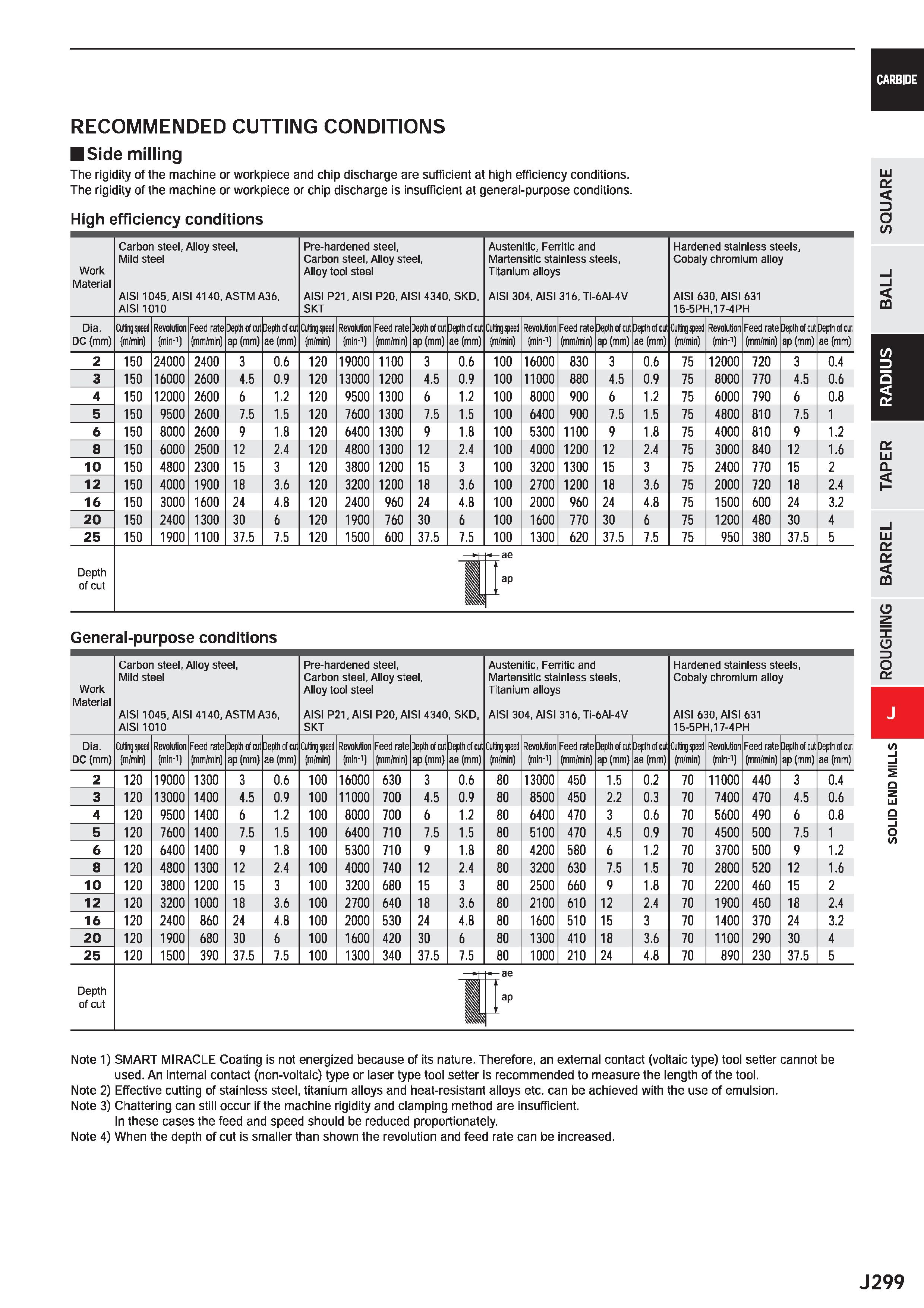

CARBIDE RECOMMENDED CUTTING CONDITIONS Side milling The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work Material Carbon steel, Alloy steel, Mild steel AISI 1045, AISI 4140, ASTM A36, AISI 1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic, Ferritic and Martensltlc stainless steels, Titanium alloys AISI 304, AISI 316, TI-6AI-4V Hardened stainless steels, Cobaly chromium alloy AISI 630, AISI 631 15-5PH.17-4PH Dia. DC (mm) Cutlng speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 2 150 24000 2400 3 0.6 120 19000 1100 3 0.6 100 16000 830 3 0.6 75 12000 720 3 0.4 3 150 16000 2600 4.5 0.9 120 13000 1200 4.5 0.9 100 11000 880 4.5 0.9 75 8000 770 4.5 0.6 4 150 12000 2600 6 1.2 120 9500 1300 6 1.2 100 8000 900 6 1.2 75 6000 790 6 0.8 5 150 9500 2600 7.5 1.5 120 7600 1300 7.5 1.5 100 6400 900 7.5 1.5 75 4800 810 7.5 1 6 150 8000 2600 9 1.8 120 6400 1300 9 1.8 100 5300 1100 9 1.8 75 4000 810 9 1.2 8 150 6000 2500 12 2.4 120 4800 1300 12 2.4 100 4000 1200 12 2.4 75 3000 840 12 1.6 10 150 4800 2300 15 3 120 3800 1200 15 3 100 3200 1300 15 3 75 2400 770 15 2 12 150 4000 1900 18 3.6 120 3200 1200 18 3.6 100 2700 1200 18 3.6 75 2000 720 18 2.4 16 150 3000 1600 24 4.8 120 2400 960 24 4.8 100 2000 960 24 4.8 75 1500 600 24 3.2 20 150 2400 1300 30 6 120 1900 760 30 6 100 1600 770 30 6 75 1200 480 30 4 25 150 1900 1100 37.5 7.5 120 1500 600 37.5 7.5 100 1300 620 37.5 7.5 75 950 380 37.5 5 Depth of cut + ae ap General-purpose conditions Work Material Carbon steel, Alloy steel, Mild steel AISI 1045, AISI 4140, ASTM A36, AISI 1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic, Ferritic and Martensitic stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Hardened stainless steels, Cobaly chromium alloy AISI 630, AISI 631 15-5PH.17-4PH Dia. DC (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 2 120 19000 1300 3 0.6 100 16000 630 3 0.6 80 13000 450 1.5 0.2 70 11000 440 3 0.4 3 120 13000 1400 4.5 0.9 100 11000 700 4.5 0.9 80 8500 450 2.2 0.3 70 7400 470 4.5 0.6 4 120 9500 1400 6 1.2 100 8000 700 6 1.2 80 6400 470 3 0.6 70 5600 490 6 0.8 5 120 7600 1400 7.5 1.5 100 6400 710 7.5 1.5 80 5100 470 4.5 0.9 70 4500 500 7.5 1 6 120 6400 1400 9 1.8 100 5300 710 9 1.8 80 4200 580 6 1.2 70 3700 500 9 1.2 8 120 4800 1300 12 2.4 100 4000 740 12 2.4 80 3200 630 7.5 1.5 70 2800 520 12 1.6 10 120 3800 1200 15 3 100 3200 680 15 3 80 2500 660 9 1.8 70 2200 460 15 2 12 120 3200 1000 18 3.6 100 2700 640 18 3.6 80 2100 610 12 2.4 70 1900 450 18 2.4 16 120 2400 860 24 4.8 100 2000 530 24 4.8 80 1600 510 15 3 70 1400 370 24 3.2 20 120 1900 680 30 6 100 1600 420 30 6 80 1300 410 18 3.6 70 1100 290 30 4 25 120 1500 390 37.5 7.5 100 1300 340 37.5 7.5 80 1000 210 24 4.8 70 890 230 37.5 5 Depth of cut h ae ap o in Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Note 2) Effective cutting of stainless steel, titanium alloys and heat-resistant alloys etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. Note 4) When the depth of cut is smaller than shown the revolution and feed rate can be increased. J299 ROUGHING BARREL TAPER rlilrillfcM BALL SQUARE
