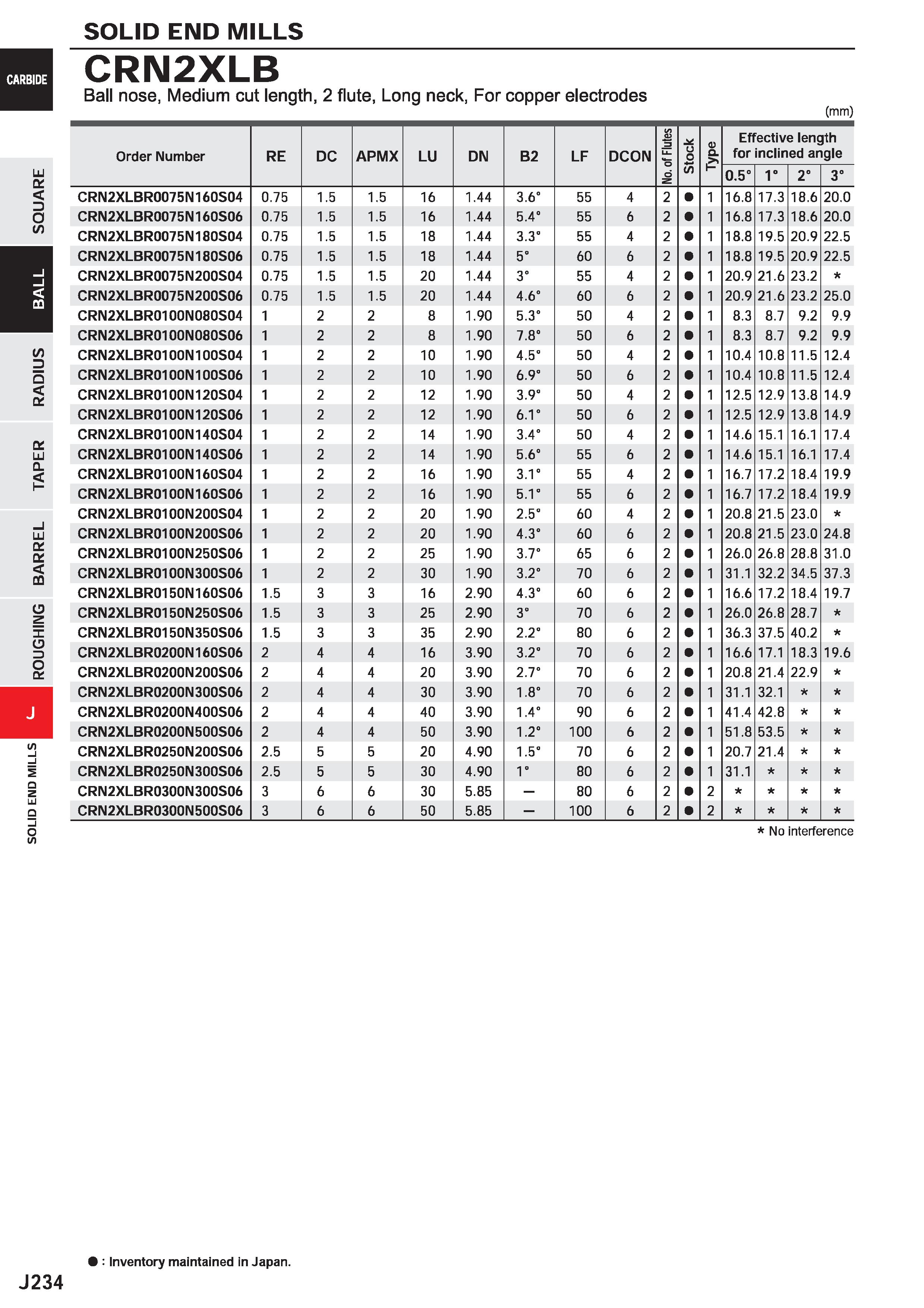

SOLID END MILLS CRN2XLB Ball nose, Medium cut length, 2 flute, Long neck, For copper electrodes (mm) Order Number RE DC APMX LU DN B2 LF DCON No. of Flutes Stock 0) Q. Effective length for inclined angle 0.5° 1° 2= 3° CRN2XLBR0075N160S04 0.75 1.5 1.5 16 1.44 3.6° 55 4 2 1 16.8 17.3 18.6 20.0 CRN2XLBR0075N160S06 0.75 1.5 1.5 16 1.44 5.4° 55 6 2 1 16.8 17.3 18.6 20.0 CRN2XLBR0075N180S04 0.75 1.5 1.5 18 1.44 3.3° 55 4 2 1 18.8 19.5 20.9 22.5 CRN2XLBR0075N180S06 0.75 1.5 1.5 18 1.44 5° 60 6 2 1 18.8 19.5 20.9 22.5 CRN2XLBR0075N200S04 0.75 1.5 1.5 20 1.44 3° 55 4 2 1 20.9 21.6 23.2 CRN2XLBR0075N200S06 0.75 1.5 1.5 20 1.44 4.6° 60 6 2 1 20.9 21.6 23.2 25.0 CRN2XLBR0100N080S04 1 2 2 8 1.90 5.3° 50 4 2 1 8.3 8.7 9.2 9.9 CRN2XLBR0100N080S06 1 2 2 8 1.90 7.8° 50 6 2 1 8.3 8.7 9.2 9.9 CRN2XLBR0100N100S04 1 2 2 10 1.90 4.5° 50 4 2 1 10.4 10.8 11.5 12.4 CRN2XLBR0100N100S06 1 2 2 10 1.90 6.9° 50 6 2 1 10.4 10.8 11.5 12.4 CRN2XLBR0100N120S04 1 2 2 12 1.90 3.9° 50 4 2 1 12.5 12.9 13.8 14.9 CRN2XLBR0100N120S06 1 2 2 12 1.90 6.1° 50 6 2 1 12.5 12.9 13.8 14.9 CRN2XLBR0100N140S04 1 2 2 14 1.90 3.4° 50 4 2 1 14.6 15.1 16.1 17.4 CRN2XLBR0100N140S06 1 2 2 14 1.90 5.6° 55 6 2 1 14.6 15.1 16.1 17.4 CRN2XLBR0100N160S04 1 2 2 16 1.90 3.1° 55 4 2 1 16.7 17.2 18.4 19.9 CRN2XLBR0100N160S06 1 2 2 16 1.90 5.1° 55 6 2 1 16.7 17.2 18.4 19.9 CRN2XLBR0100N200S04 1 2 2 20 1.90 2.5° 60 4 2 1 20.8 21.5 23.0 CRN2XLBR0100N200S06 1 2 2 20 1.90 4.3° 60 6 2 1 20.8 21.5 23.0 24.8 CRN2XLBR0100N250S06 1 2 2 25 1.90 CO o 65 6 2 1 26.0 26.8 28.8 31.0 CRN2XLBR0100N300S06 1 2 2 30 1.90 3.2° 70 6 2 1 31.1 32.2 34.5 37.3 CRN2XLBR0150N160S06 1.5 3 3 16 2.90 4.3° 60 6 2 1 16.6 17.2 18.4 19.7 CRN2XLBR0150N250S06 1.5 3 3 25 2.90 3° 70 6 2 1 26.0 26.8 28.7 CRN2XLBR0150N350S06 1.5 3 3 35 2.90 2.2° 80 6 2 1 36.3 37.5 40.2 CRN2XLBR0200N160S06 2 4 4 16 3.90 3.2° 70 6 2 1 16.6 17.1 18.3 19.6 CRN2XLBR0200N200S06 2 4 4 20 3.90 2.7° 70 6 2 1 20.8 21.4 22.9 CRN2XLBR0200N300S06 2 4 4 30 3.90 1.8° 70 6 2 1 31.1 32.1 CRN2XLBR0200N400S06 2 4 4 40 3.90 1.4° 90 6 2 1 41.4 42.8 CRN2XLBR0200N500S06 2 4 4 50 3.90 1.2° 100 6 2 1 51.8 53.5 CRN2XLBR0250N200S06 2.5 5 5 20 4.90 1.5° 70 6 2 1 20.7 21.4 CRN2XLBR0250N300S06 2.5 5 5 30 4.90 1° 80 6 2 1 31.1 ★ CRN2XLBR0300N300S06 3 6 6 30 5.85 80 6 2 2 CRN2XLBR0300N500S06 3 6 6 50 5.85 100 6 2 2 LlI Q. LU O' 0£ CQ CD z I CD 3 o a. UJ Q O in No interference : Inventory maintained in Japan. J234
