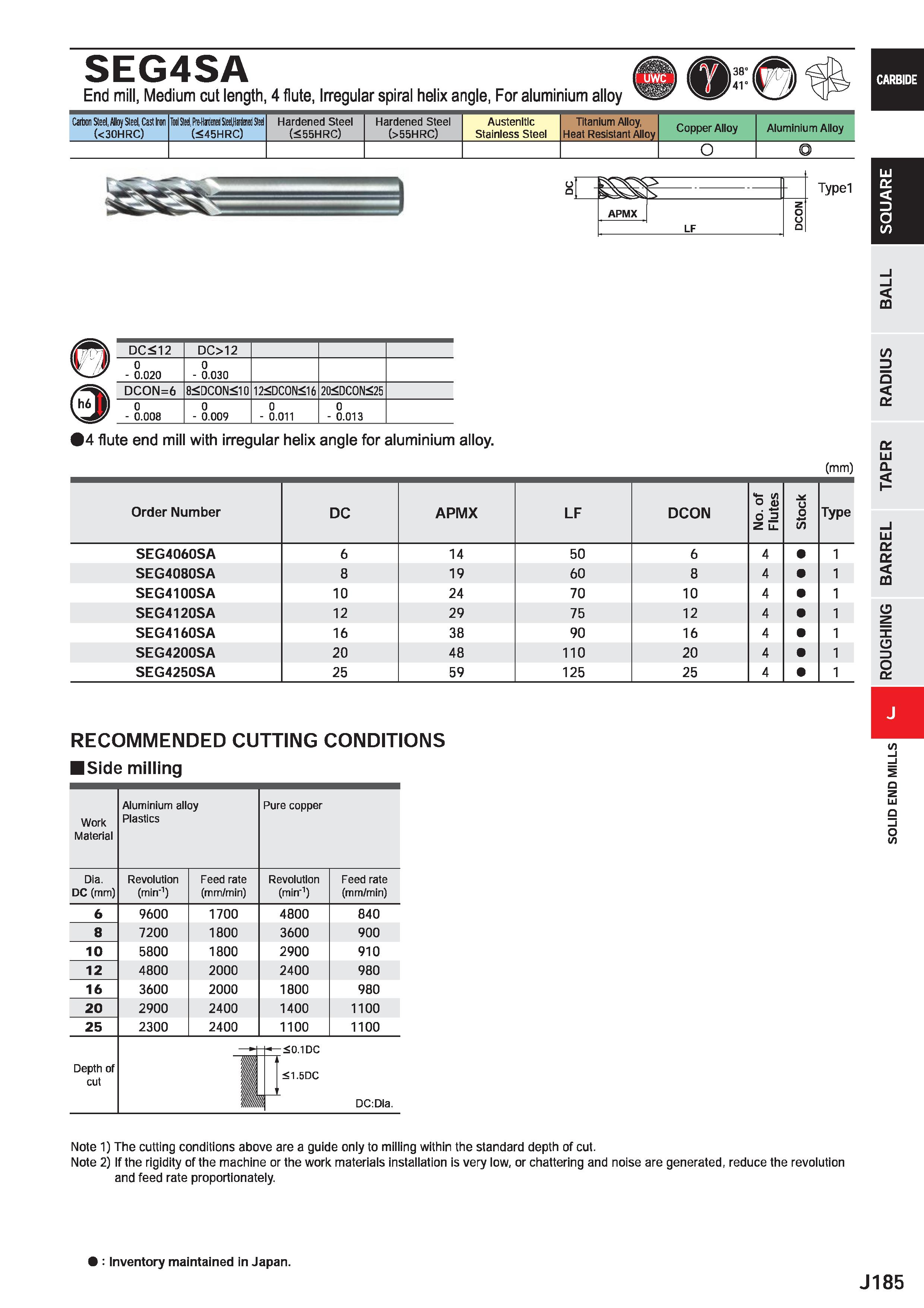

SEG4SA End mill, Medium cut length, 4 flute, Irregular spiral helix angle, For aluminium alloy Carbon Steel, Alloy Steel, Cast iron (<30HRC) Tool Steel, Pre-Hjrdaneil Steei.HaritoiedSteel (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy o APMX DCON LF Typel m DC 12 DC>12 0 - 0.020 0 - 0.030 DCON=6 8 Type SEG4060SA 6 14 50 6 4 1 SEG4080SA 8 19 60 8 4 1 SEG4100SA 10 24 70 10 4 1 SEG4120SA 12 29 75 12 4 1 SEG4160SA 16 38 90 16 4 1 SEG4200SA 20 48 110 20 4 1 SEG4250SA 25 59 125 25 4 1 /> 2 Q dc dc LlI a. LU dc DC m 3 o cx RECOMMENDED CUTTING CONDITIONS Side milling Work Material Aluminium alloy Plastics Pure copper Dia. Revolution Feed rate Revolution Feed rate DC (mm) (min'1) (mm/min) (min'1) (mm/min) 6 9600 1700 4800 840 8 7200 1800 3600 900 10 5800 1800 2900 910 12 4800 2000 2400 980 16 3600 2000 1800 980 20 2900 2400 1400 1100 25 2300 2400 1100 1100 Depth of cut -30.1 DC 1.5DC O in DC: Dia. Note 1) The cutting conditions above are a guide only to milling within the standard depth of cut. Note 2) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. : Inventory maintained in Japan. J185
