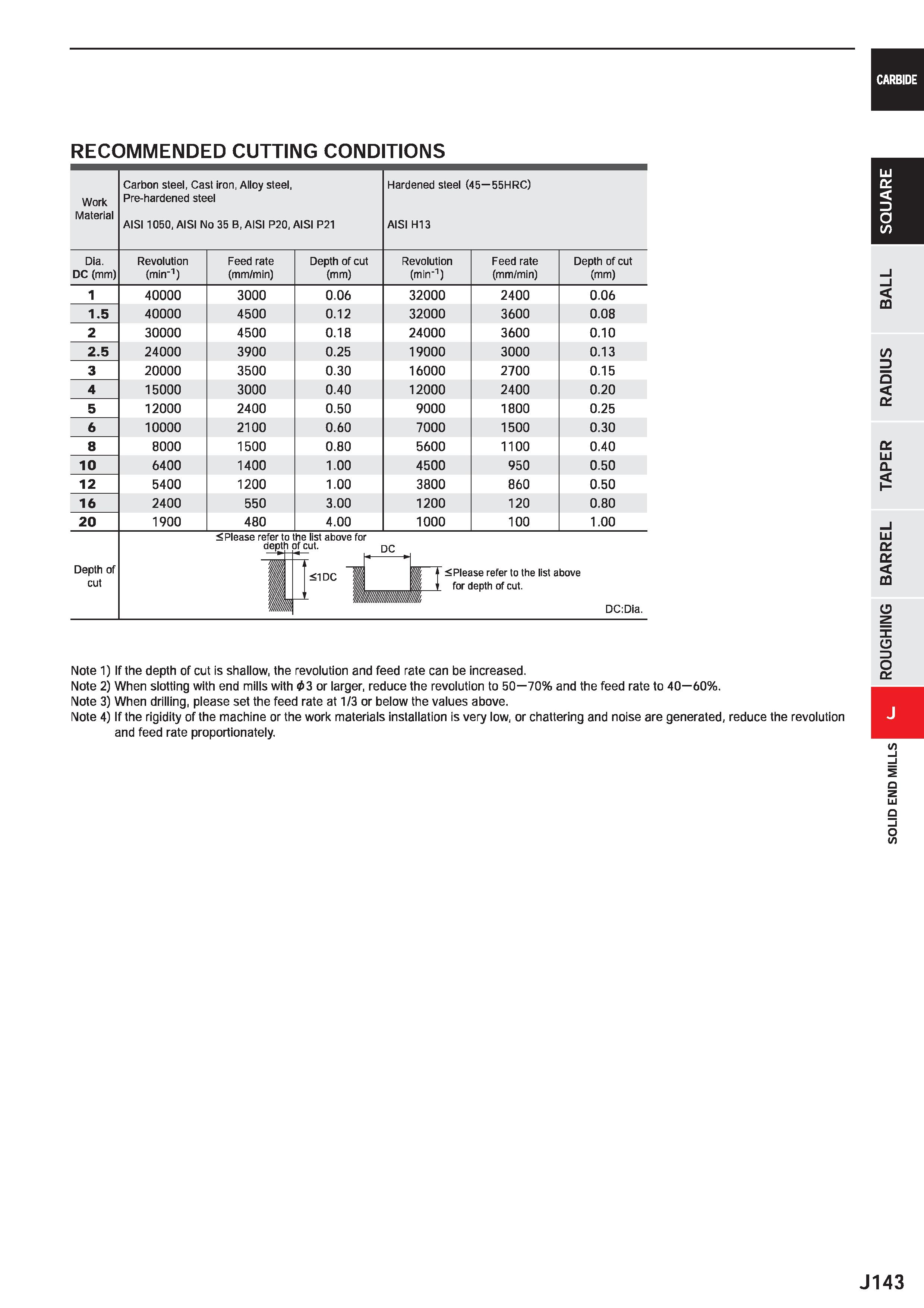

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Carbon steel, Cast iron, Alloy steel, Pre-hardened steel Hardened steel (45 55HRC) Material AIS11050, AISI No 35 B, AISI P20, AISI P21 AISI H13 Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Depth of cut (mm) Revolution (min'1) Feed rate (mm/min) Depth of cut (mm) 1 40000 3000 0.06 32000 2400 0.06 1.5 40000 4500 0.12 32000 3600 0.08 2 30000 4500 0.18 24000 3600 0.10 2.5 24000 3900 0.25 19000 3000 0.13 3 20000 3500 0.30 16000 2700 0.15 4 15000 3000 0.40 12000 2400 0.20 5 12000 2400 0.50 9000 1800 0.25 6 10000 2100 0.60 7000 1500 0.30 8 8000 1500 0.80 5600 1100 0.40 10 6400 1400 1.00 4500 950 0.50 12 5400 1200 1.00 3800 860 0.50 16 2400 550 3.00 1200 120 0.80 20 1900 480 4.00 1000 100 1.00 Depth of cut Please refer to the list above for depth of cut. tJt- DC Please refer to the list above for depth of cut. DC: Dia. Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) When slotting with end mills with t> 3 or larger, reduce the revolution to 50 70% and the feed rate to 40 60%. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. LU D o 10 a Ld Q J143 ROUGHING BARREL TAPER RADIUS BALL
