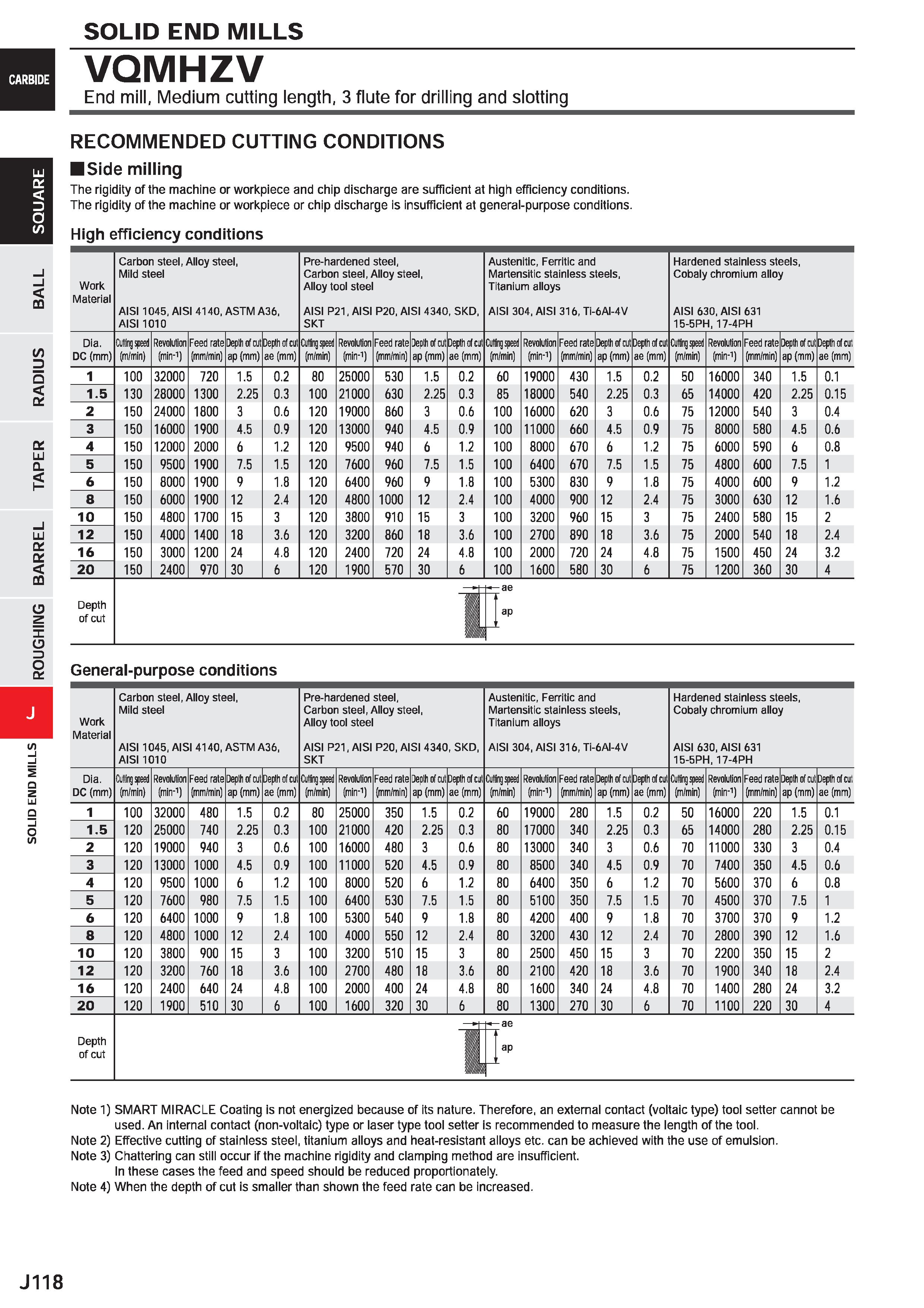

SOLID END MILLS VQMHZV End mill, Medium cutting length, 3 flute for drilling and slotting RECOMMENDED CUTTING CONDITIONS Side milling The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work Material Carbon steel, Alloy steel, Mild steel AISI 1045, AISI 4140, ASTM A36, AISI 1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic, Ferritic and Martensitic stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Hardened stainless steels, Cobaly chromium alloy AISI 630, AISI 631 15-5PH, 17-4PH Dia. DC (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 1 100 32000 720 1.5 0.2 80 25000 530 1.5 0.2 60 19000 430 1.5 0.2 50 16000 340 1.5 0.1 1.5 130 28000 1300 2.25 0.3 100 21000 630 2.25 0.3 85 18000 540 2.25 0.3 65 14000 420 2.25 0.15 2 150 24000 1800 3 0.6 120 19000 860 3 0.6 100 16000 620 3 0.6 75 12000 540 3 0.4 3 150 16000 1900 4.5 0.9 120 13000 940 4.5 0.9 100 11000 660 4.5 0.9 75 8000 580 4.5 0.6 4 150 12000 2000 6 1.2 120 9500 940 6 1.2 100 8000 670 6 1.2 75 6000 590 6 0.8 5 150 9500 1900 7.5 1.5 120 7600 960 7.5 1.5 100 6400 670 7.5 1.5 75 4800 600 7.5 1 6 150 8000 1900 9 1.8 120 6400 960 9 1.8 100 5300 830 9 1.8 75 4000 600 9 1.2 8 150 6000 1900 12 2.4 120 4800 1000 12 2.4 100 4000 900 12 2.4 75 3000 630 12 1.6 10 150 4800 1700 15 3 120 3800 910 15 3 100 3200 960 15 3 75 2400 580 15 2 12 150 4000 1400 18 3.6 120 3200 860 18 3.6 100 2700 890 18 3.6 75 2000 540 18 2.4 16 150 3000 1200 24 4.8 120 2400 720 24 4.8 100 2000 720 24 4.8 75 1500 450 24 3.2 20 150 2400 970 30 6 120 1900 570 30 6 100 1600 580 30 6 75 1200 360 30 4 Depth of cut h ae ill ap P General-purpose conditions Work Material Carbon steel, Alloy steel, Mild steel AISI 1045, AISI 4140, ASTM A36, AISI 1010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic, Ferritic and Martensitic stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V Hardened stainless steels, Cobaly chromium alloy AISI 630, AISI 631 15-5PH, 17-4PH Dia. DC (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting speed (m/min) Revolution (min-1) Feed rate (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 1 100 32000 480 1.5 0.2 80 25000 350 1.5 0.2 60 19000 280 1.5 0.2 50 16000 220 1.5 0.1 1.5 120 25000 740 2.25 0.3 100 21000 420 2.25 0.3 80 17000 340 2.25 0.3 65 14000 280 2.25 0.15 2 120 19000 940 3 0.6 100 16000 480 3 0.6 80 13000 340 3 0.6 70 11000 330 3 0.4 3 120 13000 1000 4.5 0.9 100 11000 520 4.5 0.9 80 8500 340 4.5 0.9 70 7400 350 4.5 0.6 4 120 9500 1000 6 1.2 100 8000 520 6 1.2 80 6400 350 6 1.2 70 5600 370 6 0.8 5 120 7600 980 7.5 1.5 100 6400 530 7.5 1.5 80 5100 350 7.5 1.5 70 4500 370 7.5 1 6 120 6400 1000 9 1.8 100 5300 540 9 1.8 80 4200 400 9 1.8 70 3700 370 9 1.2 8 120 4800 1000 12 2.4 100 4000 550 12 2.4 80 3200 430 12 2.4 70 2800 390 12 1.6 10 120 3800 900 15 3 100 3200 510 15 3 80 2500 450 15 3 70 2200 350 15 2 12 120 3200 760 18 3.6 100 2700 480 18 3.6 80 2100 420 18 3.6 70 1900 340 18 2.4 16 120 2400 640 24 4.8 100 2000 400 24 4.8 80 1600 340 24 4.8 70 1400 280 24 3.2 20 120 1900 510 30 6 100 1600 320 30 6 80 1300 270 30 6 70 1100 220 30 4 Depth of cut t ae i ap Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Note 2) Effective cutting of stainless steel, titanium alloys and heat-resistant alloys etc. can be achieved with the use of emulsion. Note 3) Chattering can still occur if the machine rigidity and clamping method are insufficient. In these cases the feed and speed should be reduced proportionately. Note 4) When the depth of cut is smaller than shown the feed rate can be increased.
