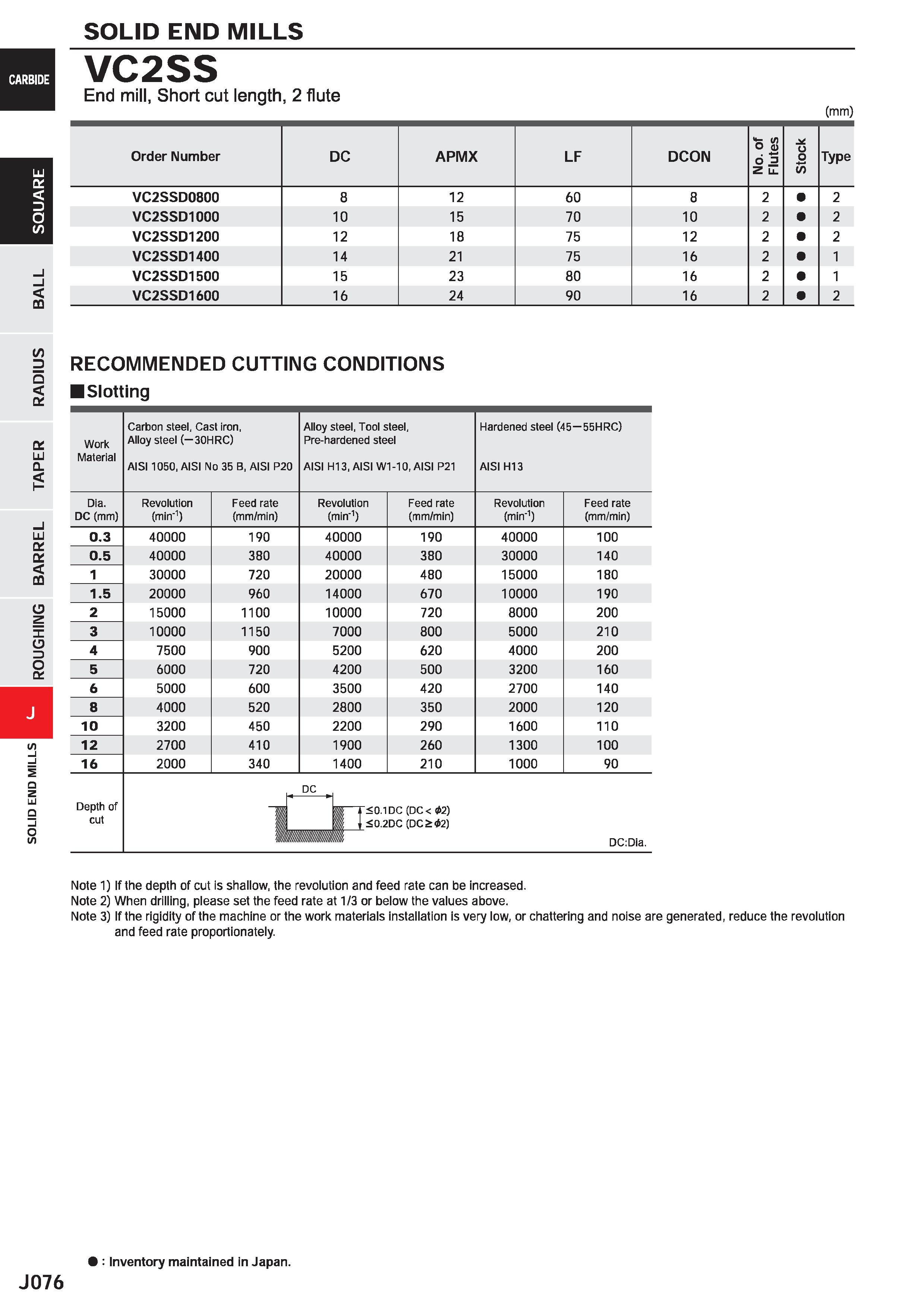

SOLID END MILLS End mill, Short cut length , 2 flute (mm) Order Number DC APMX LF DCON No. Of Flutes Stock Type VC2SSD0800 8 12 60 8 2 2 VC2SSD1000 10 15 70 10 2 2 VC2SSD1200 12 18 75 12 2 2 VC2SSD1400 14 21 75 16 2 1 VC2SSD1500 15 23 80 16 2 1 VC2SSD1600 16 24 90 16 2 2 m /> D O o: a LU o. UJ O' 0£ ca cd z I CD 3 o a. UJ Q O in RECOMMENDED CUTTING CONDITIONS Slotting Work Carbon steel, Cast iron, Alloy steel (-30HRC) Alloy steel, Tool steel, Pre-hardened steel Hardened steel (45 55HRC) Material AIS11050, AISI No 35 B, AISI P20 AISI H13, AISI W1-10, AISI P21 AISI H13 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 0.3 40000 190 40000 190 40000 100 0.5 40000 380 40000 380 30000 140 1 30000 720 20000 480 15000 180 1.5 20000 960 14000 670 10000 190 2 15000 1100 10000 720 8000 200 3 10000 1150 7000 800 5000 210 4 7500 900 5200 620 4000 200 5 6000 720 4200 500 3200 160 6 5000 600 3500 420 2700 140 8 4000 520 2800 350 2000 120 10 3200 450 2200 290 1600 110 12 2700 410 1900 260 1300 100 16 2000 340 1400 210 1000 90 Depth of cut 0.1 DC (DC< t>2) 30.2DC (DC£ 2) DC: Dia. Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) When drilling, please set the feed rate at 1/3 or below the values above. Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. : Inventory maintained in Japan. J076
