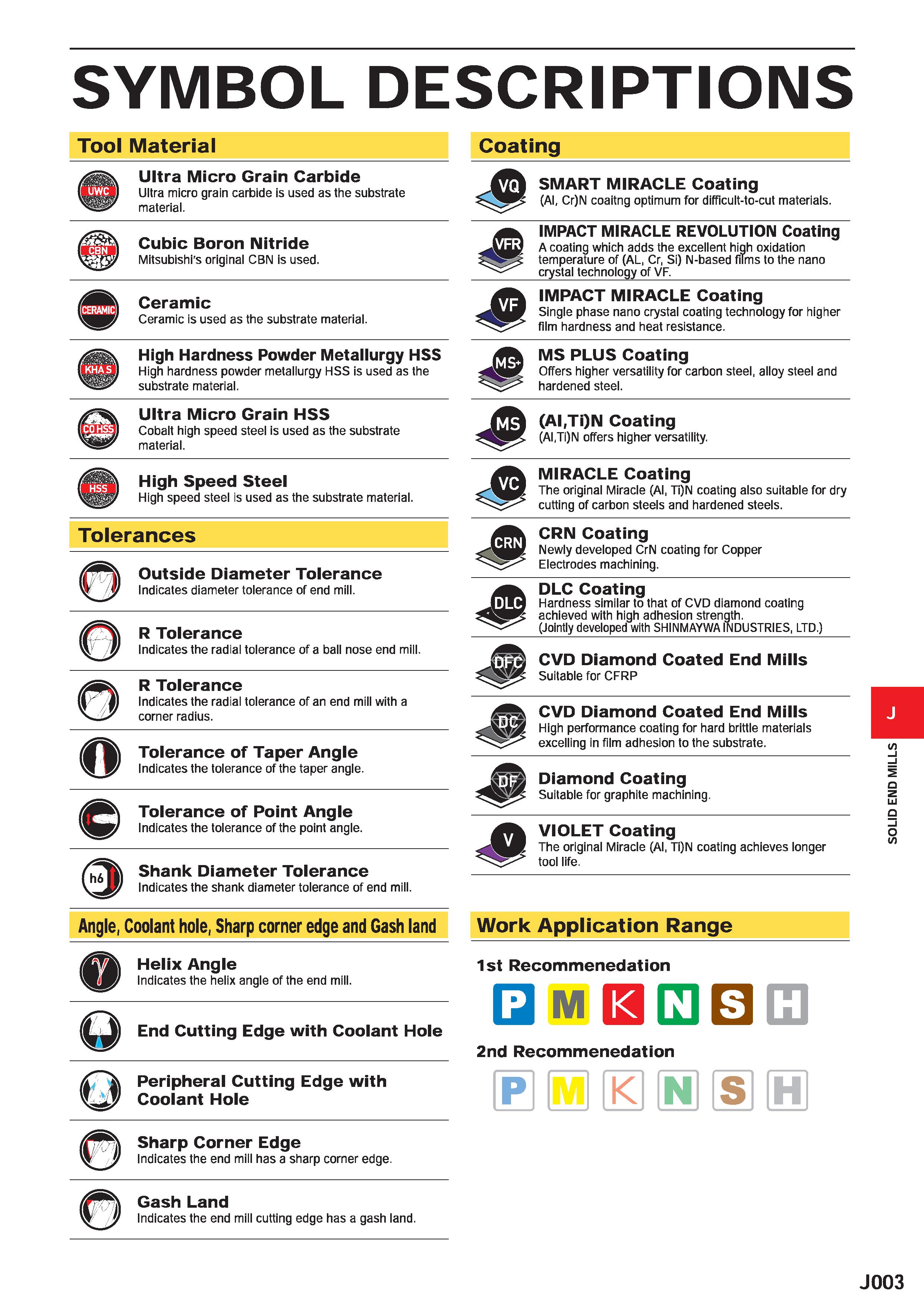

SYMBOL DESCRIPTIONS Tool Material Coating o Ultra Micro Grain Carbide Ultra micro grain carbide is used as the substrate material. s SMART MIRACLE Coating (Al, Cr)N coaitng optimum for difficult-to-cut materials. Cubic Boron Nitride Mitsubishi's original CBN is used. s IMPACT MIRACLE REVOLUTION Coating A coating which adds the excellent high oxidation temperature of (AL, Cr, Si) N-based films to the nano crystal technology of VF. Ceramic Ceramic is used as the substrate material. s IMPACT MIRACLE Coating Single phase nano crystal coating technology for higher film hardness and heat resistance. High Hardness Powder Metallurgy HSS High hardness powder metallurgy HSS is used as the substrate material. s MS PLUS Coating Offers higher versatility for carbon steel, alloy steel and hardened steel. Ultra Micro Grain HSS Cobalt high speed steel is used as the substrate material. s (AI.TQN Coating (AI,Ti)N offers higher versatility. High Speed Steel High speed steel is used as the substrate material. s MIRACLE Coating The original Miracle (Al, Ti)N coating also suitable for dry cutting of carbon steels and hardened steels. Tolerances Outside Diameter Tolerance IV Indicates diameter tolerance of end mill. R Tolerance Indicates the radial tolerance of a ball nose end mill. R Tolerance , fj Indicates the radial tolerance of an end mill with a corner radius. Tolerance of Taper Angle Indicates the tolerance of the taper angle. Tolerance of Point Angle Indicates the tolerance of the point angle. Shank Diameter Tolerance Indicates the shank diameter tolerance of end mill. CRN Coating Newly developed CrN coating for Copper Electrodes machining. DLC Coating Hardness similar to that of CVD diamond coating achieved with high adhesion strength. (Jointly developed with SHINMAYWA INDUSTRIES, LTD.) 'ijs53 CVD Diamond Coated End Mills Suitable for CFRP A CVD Diamond Coated End Mills High performance coating for hard brittle materials excelling in film adhesion to the substrate. Diamond Coating Suitable for graphite machining. S VIOLET Coating The original Miracle (Al, Ti)N coating achieves longer tool life. Angle, Coolant hole, Sharp corner edge and Gash land Work Application Range a Helix Angle ' Indicates the helix angle of the end mill. End Cutting Edge with Coolant Hole Peripheral Cutting Edge with Coolant Hole 1st Recommenedation QmQQ 2nd Recommenedation K S H a Sharp Corner Edge v Indicates the end mill has a sharp corner edge. Gash Land Indicates the end mill cutting edge has a gash land. J003 SOLID END MILLS
