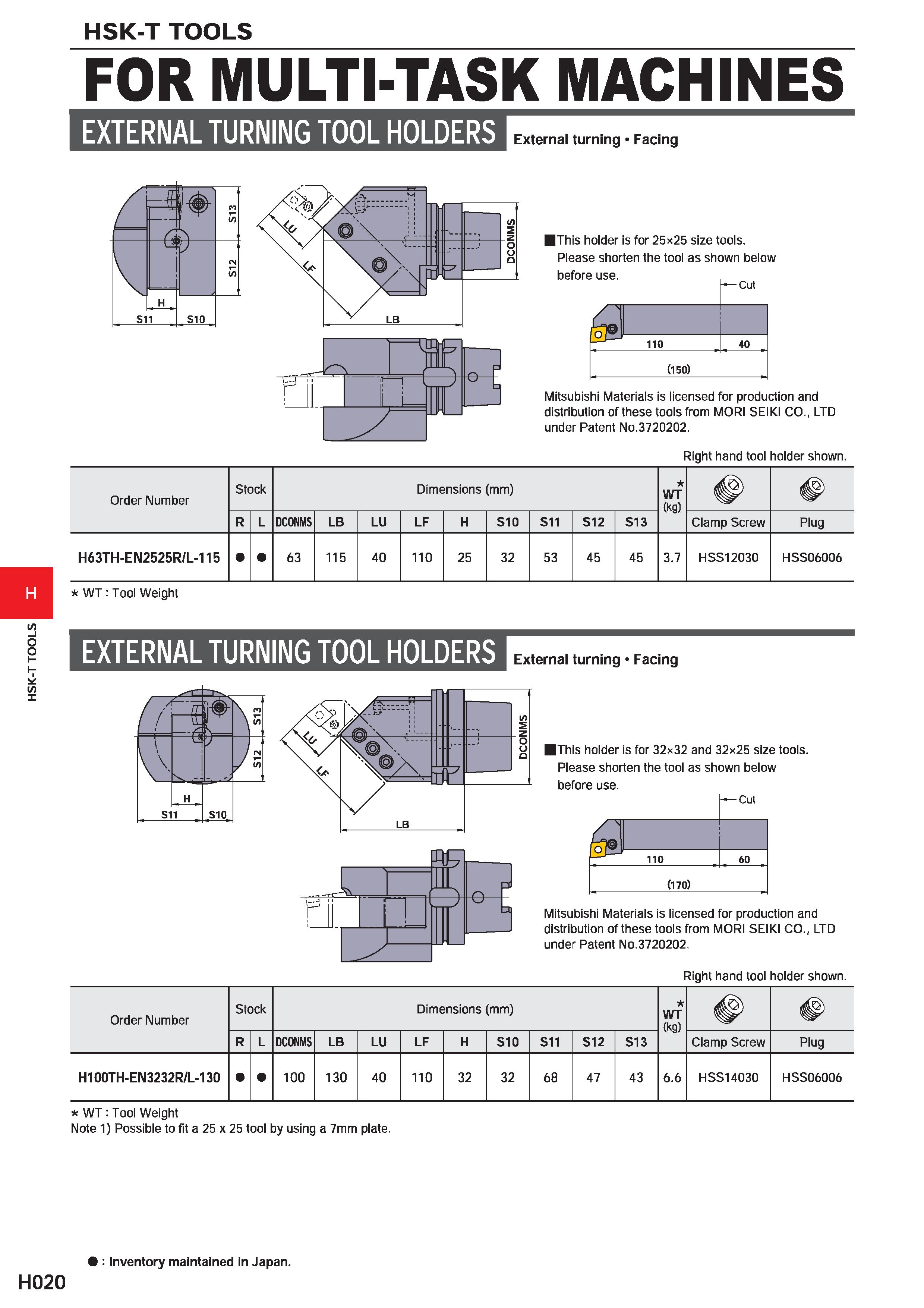

HSK-T TOOLS H H020 HSK-T TOOLS FOR MULTI-TASK MACHINES EXTERNAL TURNING TOOL HOLDERS External turning Facing This holder is for 25x25 size tools. Please shorten the tool as shown below Mitsubishi Materials is licensed for production and distribution of these tools from MORI SEIKI CO., LTD under Patent No.3720202. Right hand tool holder shown. Order Number Stock Dimensions (mm) WT (kg) R L DCONMS LB LU LF H S10 S11 S12 S13 Clamp Screw Plug H63TH-EN2525R/L-115 63 115 40 110 25 32 53 45 45 3.7 HSS12030 HSS06006 WT: Tool Weight EXTERNAL TURNING TOOL HOLDERS External turning Facing IThis holder is for 32x32 and 32x25 size tools. Please shorten the tool as shown below before use. 1 4 r hi-, hi i i o 3 h Cut o 110 60 (170) Mitsubishi Materials is licensed for production and distribution of these tools from MORI SEIKI CO., LTD under Patent No.3720202. Right hand tool holder shown. Order Number Stock Dimensions (mm) WT (kg) R L DCONMS LB LU LF H S10 S11 S12 S13 Clamp Screw Plug H100TH-EN3232R/L-130 100 130 40 110 32 32 68 47 43 6.6 HSS14030 HSS06006 WT : Tool Weight Note 1) Possible to fit a 25 x 25 tool by using a 7mm plate. : Inventory maintained in Japan.
