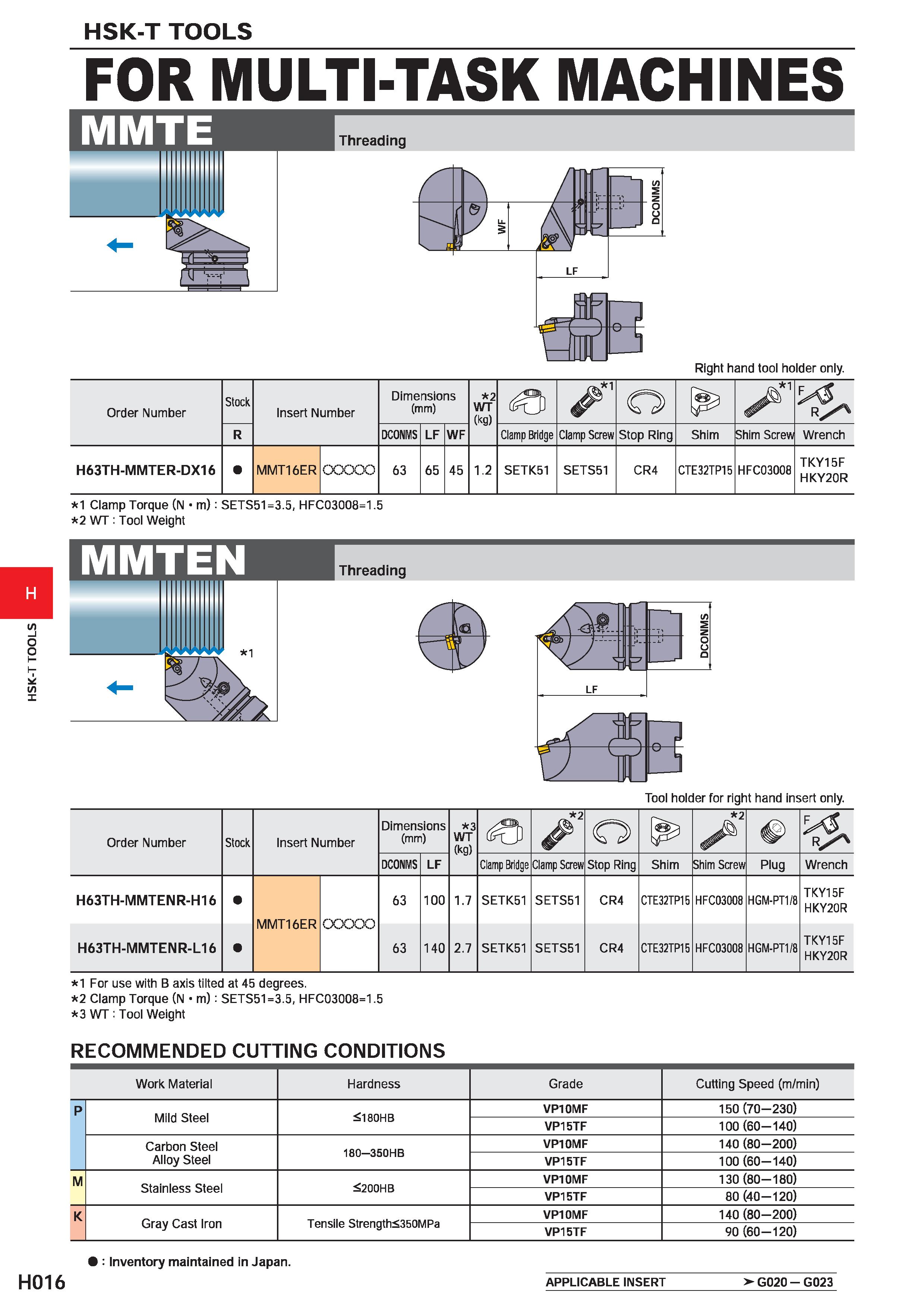

HSK-T TOOLS H H016 HSK-T TOOLS FOR MULTI-TASK MACHINES Threading Right hand tool holder only. Order Number Stock Insert Number Dimensions (mm) 2 WT (kg) o R DCONMS LF WF Clamp Bridge Clamp Screw Stop Ring Shim Shim Screw Wrench H63TH-MMTER-DX16 MMT16ER ODGOO 63 65 45 1.2 SETK51 SETS51 CR4 CTE32TP15 HFC03008 TKY15F HKY20R 1 Clamp Torque (N m): SETS51=3.5, HFC03008=1.5 2 WT : Tool Weight Threading Tool holder for right hand insert only. Order Number Stock Insert Number Dimensions (mm) 3 WT (kg) 6t3) 2 o & DCONMS LF Clamp Bridge Clamp Screw Stop Ring Shim Shim Screw Plug Wrench H63TH-MMTENR-H16 MMT16ER /"V'V VTi 63 100 1.7 SETK51 SETS51 CR4 CTE32TP15 HFC03008 HGM-PT1/8 TKY15F HKY20R H63TH-MMTENR-L16 63 140 2.7 SETK51 SETS51 CR4 CTE32TP15 HFC03008 HGM-PT1/8 TKY15F HKY20R 1 For use with B axis tilted at 45 degrees. 2 Clamp Torque (N m): SETS51=3.5, HFC03008=1.5 3 WT : Tool Weight RECOMMENDED CUTTING CONDITIONS Work Material Hardness Grade Cutting Speed (m/min) P Mild Steel 180HB VP10MF 150(70-230) VP15TF 100(60-140) Carbon Steel 180 350HB VP10MF 140(80-200) Alloy Steel VP15TF 100(60-140) M Stainless Steel 200HB VP10MF 130(80-180) VP15TF 80(40-120) K Gray Cast Iron Tensile Strength<350MPa VP10MF 140(80-200) VP15TF 90(60-120) : Inventory maintained in Japan. APPLICABLE INSERT > G020 G023
