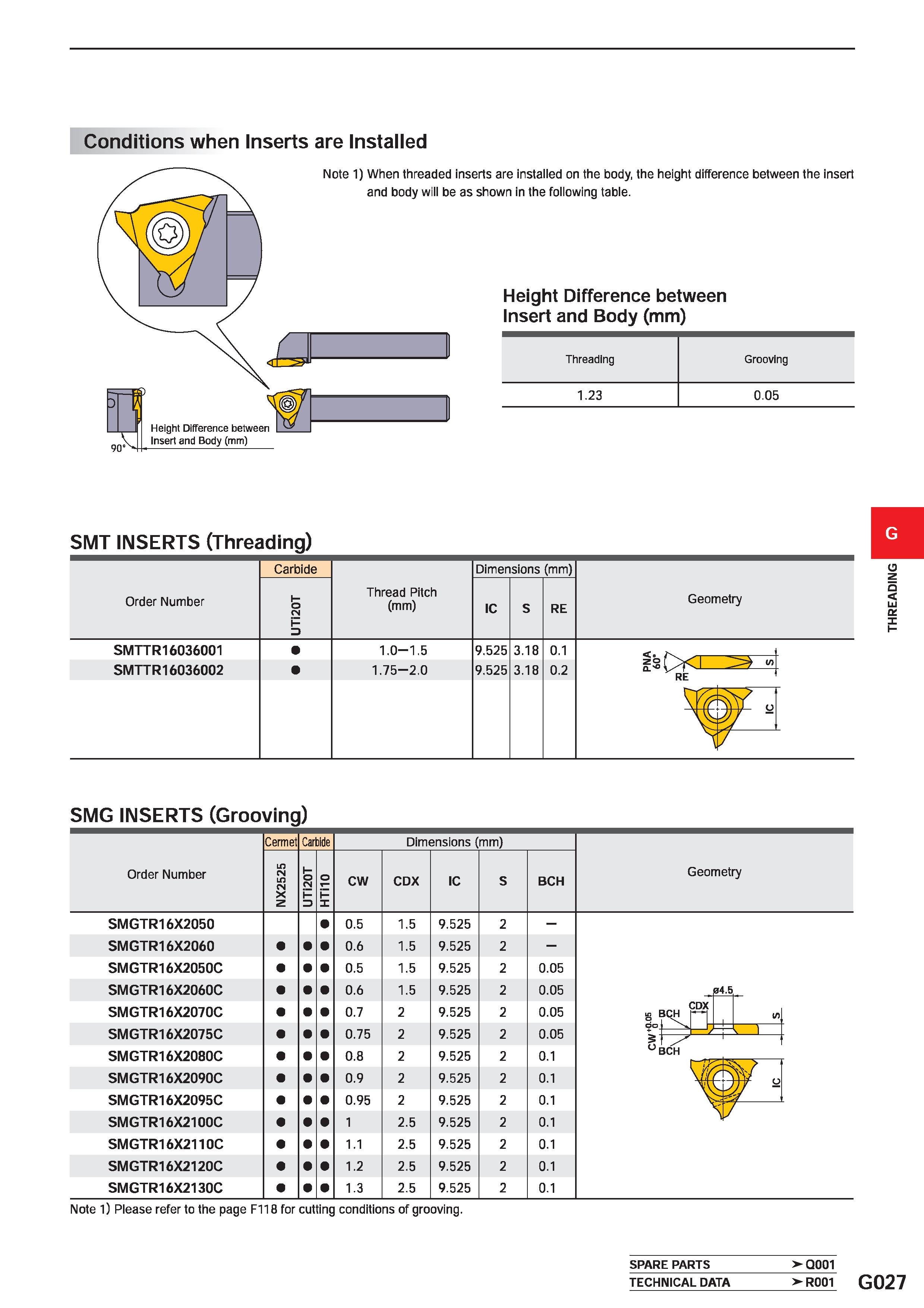

Conditions when Inserts are Installed Height Difference betweer Insert and Body (mm) Note 1) When threaded inserts are installed on the body, the height difference between the insert and body will be as shown in the following table. Height Difference between Insert and Body (mm) Threading Grooving 1.23 0.05 SMT INSERTS (Threading) Order Number Carbide Thread Pitch (mm) Dimensions (mm) Geometry UTi20T IC S RE SMTTR16036001 1.0-1.5 9.525 3.18 0.1 -.=-,- SMTTR16036002 1.75-2.0 9.525 3.18 0.2 RE /> % SMG INSERTS (Grooving) Order Number Cermet Carbide Dimensions (mm) Geometry NX2525 i- H HTi10 CW CDX IC S BCH SMGTR16X2050 0.5 1.5 9.525 2 - SMGTR16X2060 0.6 1.5 9.525 2 - SMGTR16X2050C 0.5 1.5 9.525 2 0.05 SMGTR16X2060C 0.6 1.5 9.525 2 0.05 04.5 SMGTR16X2070C 0.7 2 9.525 2 0.05 CDX Li ru , SMGTR16X2075C 0.75 2 9.525 2 0.05 1 SMGTR16X2080C 0.8 2 9.525 2 0.1 BCH r SMGTR16X2090C 0.9 2 9.525 2 0.1 \///" f 77/ SMGTR16X2095C 0.95 2 9.525 2 0.1 V SMGTR16X2100C 1 2.5 9.525 2 0.1 SMGTR16X2110C 1.1 2.5 9.525 2 0.1 SMGTR16X2120C 1.2 2.5 9.525 2 0.1 SMGTR16X2130C 1.3 2.5 9.525 2 0.1 Note 1) Please refer to the page F118 for cutting conditions of grooving. SPARE PARTS >Q001 TECHNICAL DATA > R001 G G027 THREADING
