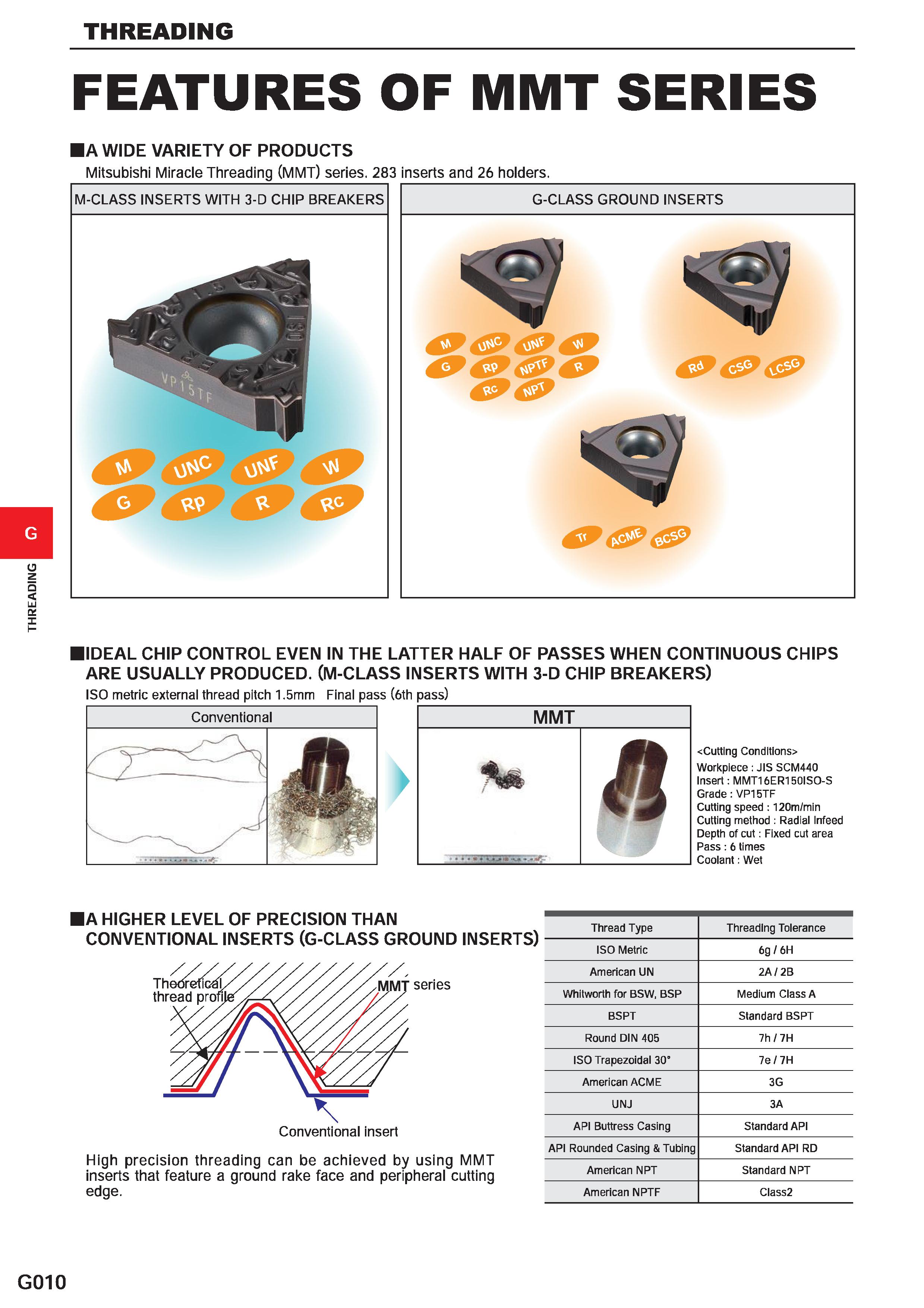

THREADING THREADING FEATURES OF MMT SERIES A WIDE VARIETY OF PRODUCTS Mitsubishi Miracle Threading (MMT) series. 283 inserts and 26 holders. G M-CLASS INSERTS WITH 3-D CHIP BREAKERS G-CLASS GROUND INSERTS IDEAL CHIP CONTROL EVEN IN THE LATTER HALF OF PASSES WHEN CONTINUOUS CHIPS ARE USUALLY PRODUCED. (M-CLASS INSERTS WITH 3-D CHIP BREAKERS) ISO metric external thread pitch 1,5mm Final pass (6th pass) MMT n Cuttlng Conditions Workpiece: JIS SCM440 Insert: MMT16ER150ISO-S Grade: VP15TF Cutting speed : 120m/min Cutting method : Radial Infeed Depth of cut: Fixed cut area Pass: 6 times Coolant: Wet IA HIGHER LEVEL OF PRECISION THAN CONVENTIONAL INSERTS (G-CLASS GROUND INSERTS) High precision threading can be achieved by using MMT inserts that feature a ground rake face and peripheral cutting edge. Thread Type Threading Tolerance ISO Metric 6g/6H American UN 2A/2B Whitworth for BSW, BSP Medium Class A BSPT Standard BSPT Round DIN 405 7h/7H ISO Trapezoidal 30’ 7e/7H American ACME 3G UNJ 3A API Buttress Casing Standard API API Rounded Casing & Tubing Standard API RD American NPT Standard NPT American NPTF Class2 Conventional G010
