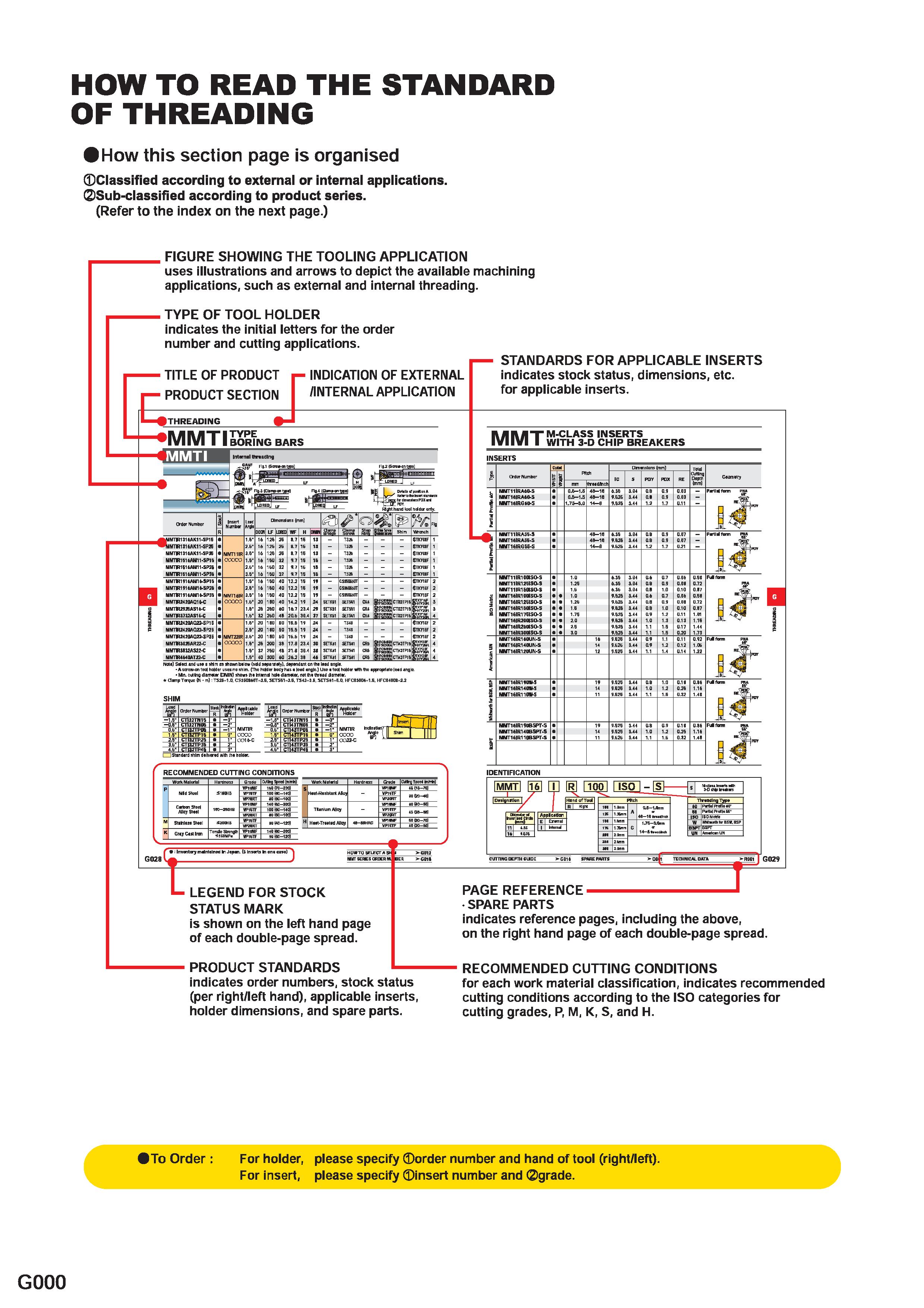

HOW TO READ THE STANDARD OF THREADING How this section page is organised Classified according to external or internal applications. (2)Sub-classified according to product series. (Refer to the index on the next page.) , FIGURE SHOWING THE TOOLING APPLICATION uses illustrations and arrows to depict the available machining applications, such as external and internal threading. . TYPE OF TOOL HOLDER indicates the initial letters for the order number and cutting applications. INDICATION OF EXTERNAL /INTERNAL APPLICATION - STANDARDS FOR APPLICABLE INSERTS indicates stock status, dimensions, etc. for applicable inserts. LEGEND FOR STOCK STATUS MARK is shown on the left hand page of each double-page spread. PRODUCT STANDARDS indicates order numbers, stock status (per right/left hand), applicable inserts holder dimensions, and spare parts. indicates reference pages, including the above, on the right hand page of each double-page spread. RECOMMENDED CUTTING CONDITIONS for each work material classification, indicates recommended cutting conditions according to the ISO categories for cutting grades, P, M, K, S, and H. >To Order: For holder, please specify order number and hand of tool (right/left). For insert, please specify insert number and grade. G000
