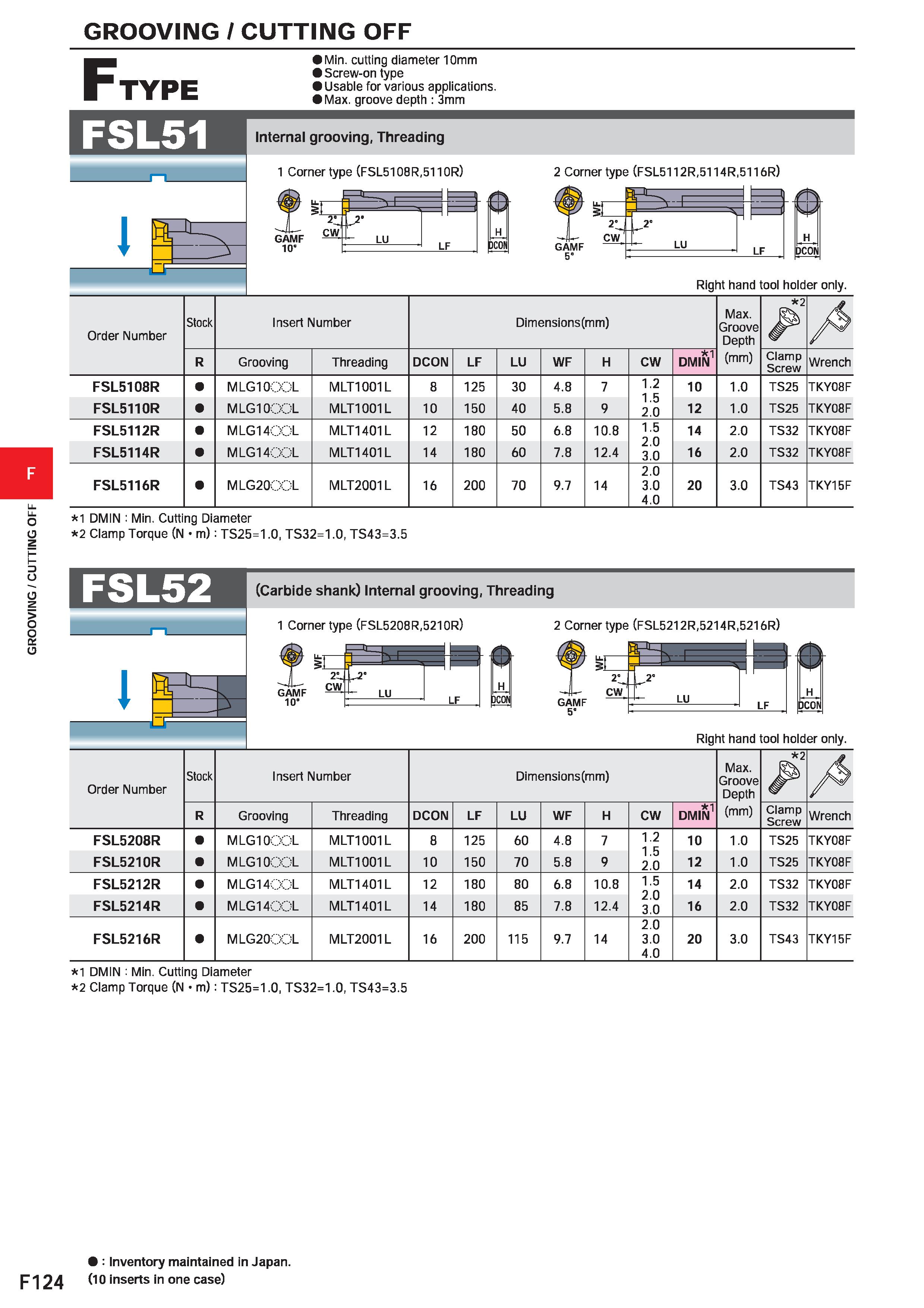

GROOVING / CUTTING OFF TYPE F FSL51 Min. cutting diameter 10mm Screw-on type Usable for various applications. Max. groove depth : 3mm \ Internal grooving, Threading 1 Corner type (FSL5108R.5110R) 2 Corner type (FSL5112R,5114R,5116R) \ i-h-' I Sr f2' LU - LF H DCON Right hand tool holder only. Order Number Stock Insert Number Dimensions(mm) Max. Groove Depth (mm) / R Grooving Threading DCON LF LU WF H CW 1 DMIN Clamp Screw Wrench FSL5108R MLG10GGL MLT1001L 8 125 30 4.8 7 1.2 1.5 2.0 10 1.0 TS25 TKY08F FSL5110R MLG10GGL MLT1001L 10 150 40 5.8 9 12 1.0 TS25 TKY08F FSL5112R MLG14CXX MLT1401L 12 180 50 6.8 10.8 1.5 2.0 3.0 14 2.0 TS32 TKY08F FSL5114R MLG14C.CL MLT1401L 14 180 60 7.8 12.4 16 2.0 TS32 TKY08F FSL5116R MLG2QCOL MLT2001L 16 200 70 9.7 14 2.0 3.0 4.0 20 3.0 TS43 TKY15F 1 DMIN : Min. Cutting Diameter 2 Clamp Torque (N m): TS25=1.0, TS32=1.0, TS43=3.5 (Carbide shank) Internal grooving, Threading 1 Corner type (FSL5208R.5210R) 2 Corner type (FSL5212R,5214R,5216R) Right hand tool holder only. Order Number Stock Insert Number Dimensions(mm) Max. Groove Depth (mm) 2 / R Grooving Threading DCON LF LU WF H CW 1 DMIN Clamp Screw Wrench FSL5208R MLG10CXX MLT1001L 8 125 60 4.8 7 1.2 1.5 2.0 10 1.0 TS25 TKY08F FSL5210R MLGIOCOL MLT1001L 10 150 70 5.8 9 12 1.0 TS25 TKY08F FSL5212R MLG14COL MLT1401L 12 180 80 6.8 10.8 1.5 2.0 3.0 14 2.0 TS32 TKY08F FSL5214R MLG14COL MLT1401L 14 180 85 7.8 12.4 16 2.0 TS32 TKY08F FSL5216R M LG20GGL MLT2001L 16 200 115 9.7 14 2.0 3.0 4.0 20 3.0 TS43 TKY15F 1 DMIN : Min. Cutting Diameter 2 Clamp Torque (N m): TS25=1.0, TS32=1.0, TS43=3.5 : Inventory maintained in Japan. (10 inserts in one case)
