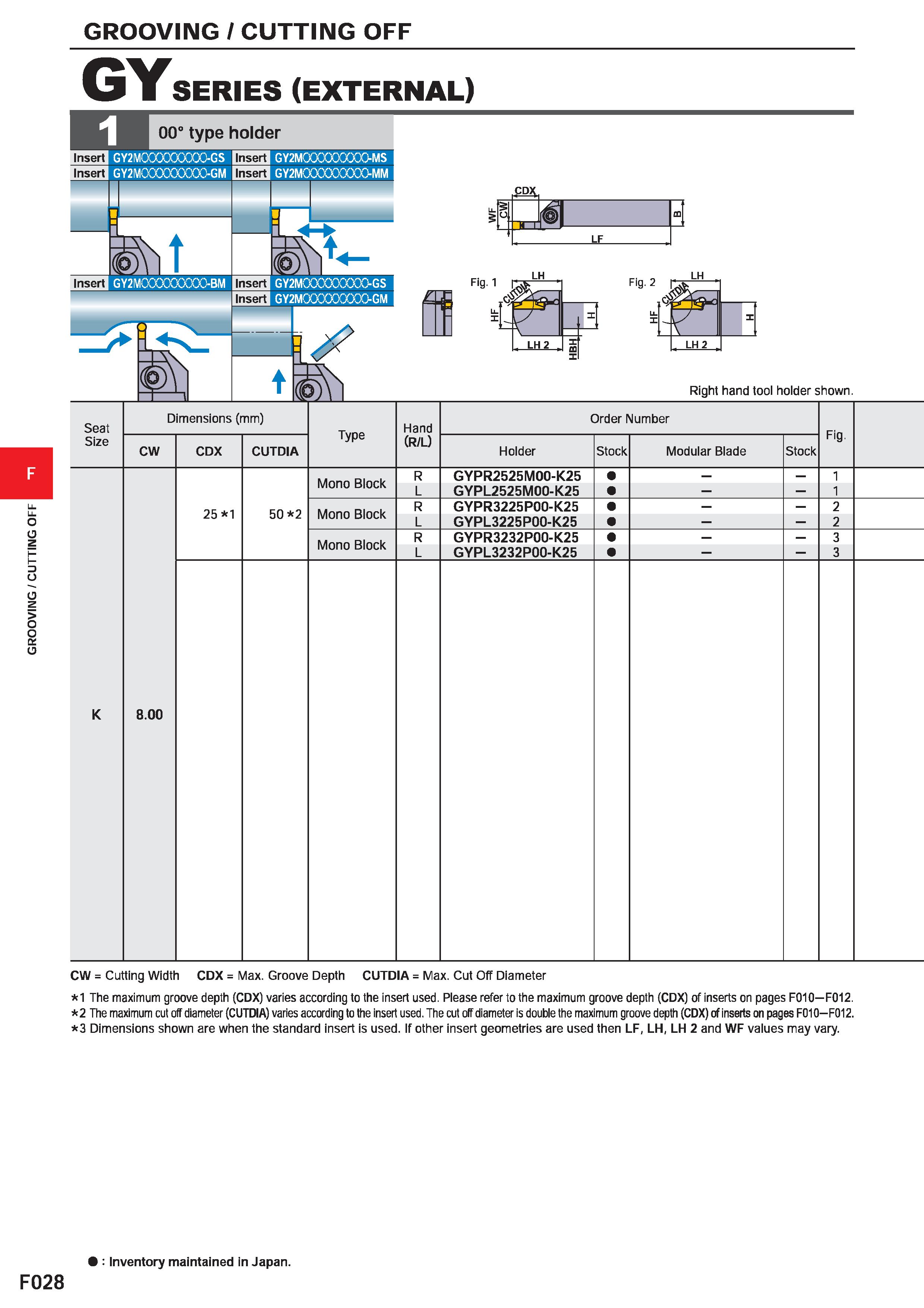

GROOVING / CUTTING OFF GROOVING / CUTTING OFF GY SERIES (EXTERNAL) 00° type holder Insert Insert GY2MOOOOOOOOOGS GY2MCXXXXXX30Q-GM Insert Insert GY2M000000000-MS GY2M0000CXXX30-MM 5 o m CQ LF Insert GY2MCX0XKXOO-BM Insert Insert GY2M000000000-GS GY2M000000000-GM Fig. 1 r Fig. 2 r LH LH 2 Right hand tool holder shown. Seat Size Dimensions (mm) CW CDX CUTDIA Type Hand (R/L) Order Number Holder Stock Modular Blade Stock Fig. Mono Block R L GYPR2525M00-K25 GYPL2525M00-K25 25 1 50 2 Mono Block R L GYPR3225P00-K25 GYPL3225P00-K25 Mono Block R L GYPR3232P00-K25 GYPL3232P00-K25 K 8.00 CW = Cutting Width CDX = Max. Groove Depth CUTDIA = Max. Cut Off Diameter 1 The maximum groove depth (CDX) varies according to the insert used. Please refer to the maximum groove depth (CDX) of inserts on pages F010 F012. 2 The maximum cut off diameter (CUTDIA) varies according to the insert used. The cut off diameter is double the maximum groove depth (CDX) of inserts on pages F010-F012. 3 Dimensions shown are when the standard insert is used. If other insert geometries are used then LF, LH, LH 2 and WF values may vary. : Inventory maintained in Japan. F028
