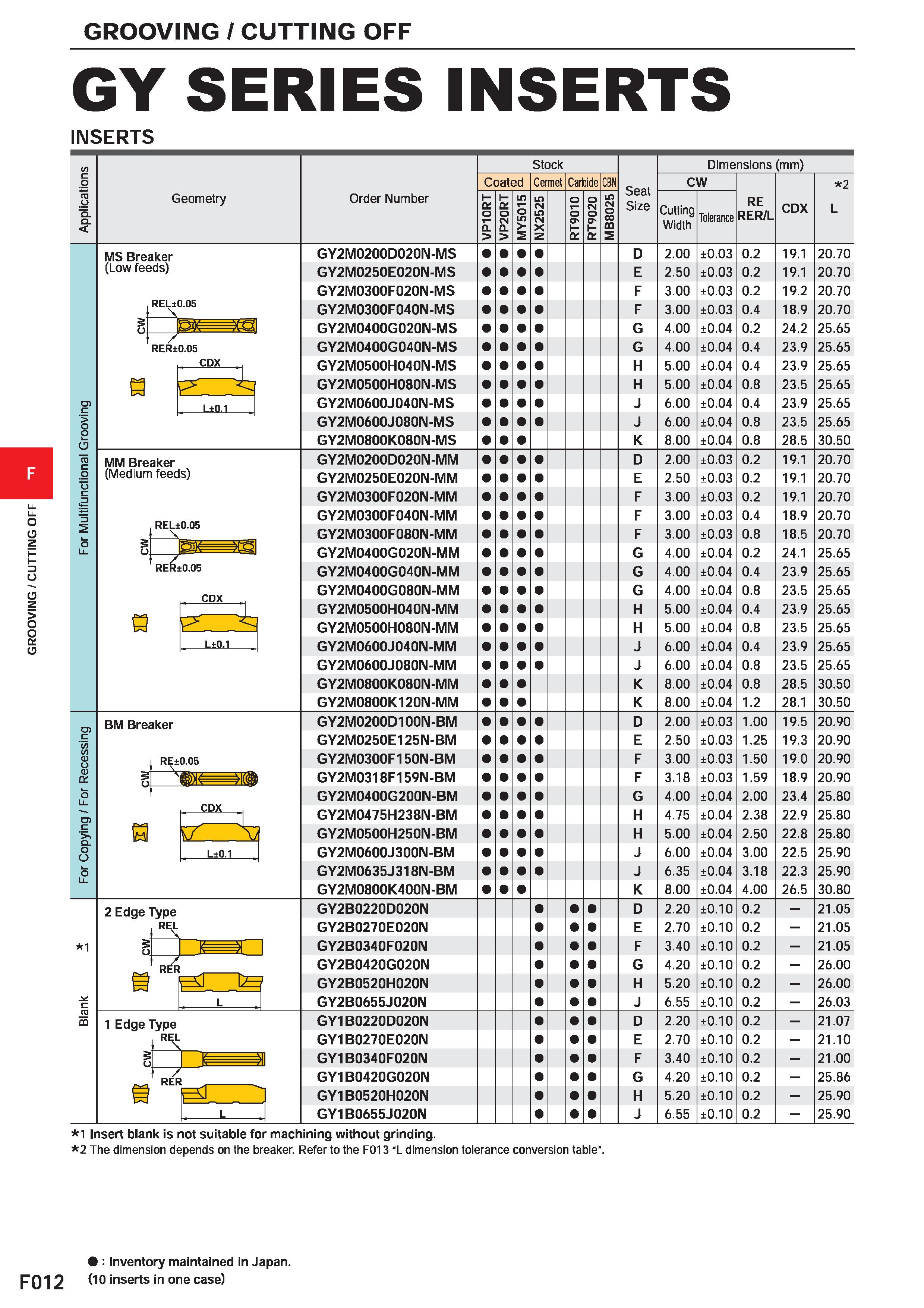

GROOVING / CUTTING OFF GROOVING / CUTTING OFF GY SERIES INSERTS INSERTS Stock Dimensions (mm) Coated Cermet Carbide CBN Seat Size CW 2 Order Number VP10RT VP20RT MY5015 NX2525 RT9010 RT9020 MB8025 Cutting Width Tolerance RE RER/L CDX L GY2M0200D020N-MS D 2.00 ±0.03 0.2 19.1 20.70 GY2M0250E020N-MS E 2.50 ±0.03 0.2 19.1 20.70 GY2M0300F020N-MS F 3.00 ±0.03 0.2 19.2 20.70 GY2M0300F040N-MS F 3.00 ±0.03 0.4 18.9 20.70 GY2M0400G020N-MS G 4.00 ±0.04 0.2 24.2 25.65 GY2M0400G040N-MS G 4.00 ±0.04 0.4 23.9 25.65 GY2M0500H040N-MS H 5.00 ±0.04 0.4 23.9 25.65 GY2M0500H080IM-MS H 5.00 ±0.04 0.8 23.5 25.65 GY2M0600J040N-MS J 6.00 ±0.04 0.4 23.9 25.65 GY2M0600J080N-MS J 6.00 ±0.04 0.8 23.5 25.65 GY2M0800K080N-MS K 8.00 ±0.04 0.8 28.5 30.50 GY2M0200D020N-MM D 2.00 ±0.03 0.2 19.1 20.70 GY2M0250E020IM-MM E 2.50 ±0.03 0.2 19.1 20.70 GY2M0300F020N-MM F 3.00 ±0.03 0.2 19.1 20.70 GY2M0300F040N-MM F 3.00 ±0.03 0.4 18.9 20.70 GY2M0300F080N-MM F 3.00 ±0.03 0.8 18.5 20.70 GY2M0400G020N-MM G 4.00 ±0.04 0.2 24.1 25.65 GY2M0400G040N-MM G 4.00 ±0.04 0.4 23.9 25.65 GY2M0400G080N-MM G 4.00 ±0.04 0.8 23.5 25.65 GY2M0500H040N-MM H 5.00 ±0.04 0.4 23.9 25.65 GY2M0500H080N-MM H 5.00 ±0.04 0.8 23.5 25.65 GY2M0600J040N-MM J 6.00 ±0.04 0.4 23.9 25.65 GY2M0600J080N-MM J 6.00 ±0.04 0.8 23.5 25.65 GY2M0800K080N-MM K 8.00 ±0.04 0.8 28.5 30.50 GY2M0800K120N-MM K 8.00 ±0.04 1.2 28.1 30.50 GY2M0200D100IM-BM D 2.00 ±0.03 1.00 19.5 20.90 GY2M0250E125N-BM E 2.50 ±0.03 1.25 19.3 20.90 GY2M0300F150N-BM F 3.00 ±0.03 1.50 19.0 20.90 GY2M0318F159N-BM F 3.18 ±0.03 1.59 18.9 20.90 GY2M0400G200N-BM G 4.00 ±0.04 2.00 23.4 25.80 GY2M0475H238N-BM H 4.75 ±0.04 2.38 22.9 25.80 GY2M0500H250IM-BM H 5.00 ±0.04 2.50 22.8 25.80 GY2M0600J300N-BM J 6.00 ±0.04 3.00 22.5 25.90 GY2M0635J318N-BM J 6.35 ±0.04 3.18 22.3 25.90 GY2M0800K400N-BM K 8.00 ±0.04 4.00 26.5 30.80 GY2B0220D020N D 2.20 ±0.10 0.2 21.05 GY2B0270E020N E 2.70 ±0.10 0.2 21.05 GY2B0340F020N F 3.40 ±0.10 0.2 21.05 GY2B0420G020N G 4.20 ±0.10 0.2 26.00 GY2B0520H020N H 5.20 ±0.10 0.2 26.00 GY2B0655J020N J 6.55 ±0.10 0.2 26.03 GY1B0220D020N D 2.20 ±0.10 0.2 21.07 GY1B0270E020N E 2.70 ±0.10 0.2 21.10 GY1B0340F020N F 3.40 ±0.10 0.2 21.00 GY1B0420G020IM G 4.20 ±0.10 0.2 25.86 GY1B0520H020N H 5.20 ±0.10 0.2 25.90 GY1B0655J020N J 6.55 ±0.10 0.2 - 25.90 Q. Q. Geometry MS Breaker (Low feeds) REL±0.05 / RER±0.05 > 1 o CDX 'si L±0.1 MM Breaker (Medium feeds) REL±0.05 CDX L±0.1 BM Breaker D DC 05 C ‘>1 Q. CDX LlO.I 2 Edge Type REL 1 ro QQ 1 Insert blank is not suitable for machining without grinding. 2 The dimension depends on the breaker. Refer to the F013 'L dimension tolerance conversion table", : Inventory maintained in Japan. F012 (10 inserts in one case)
