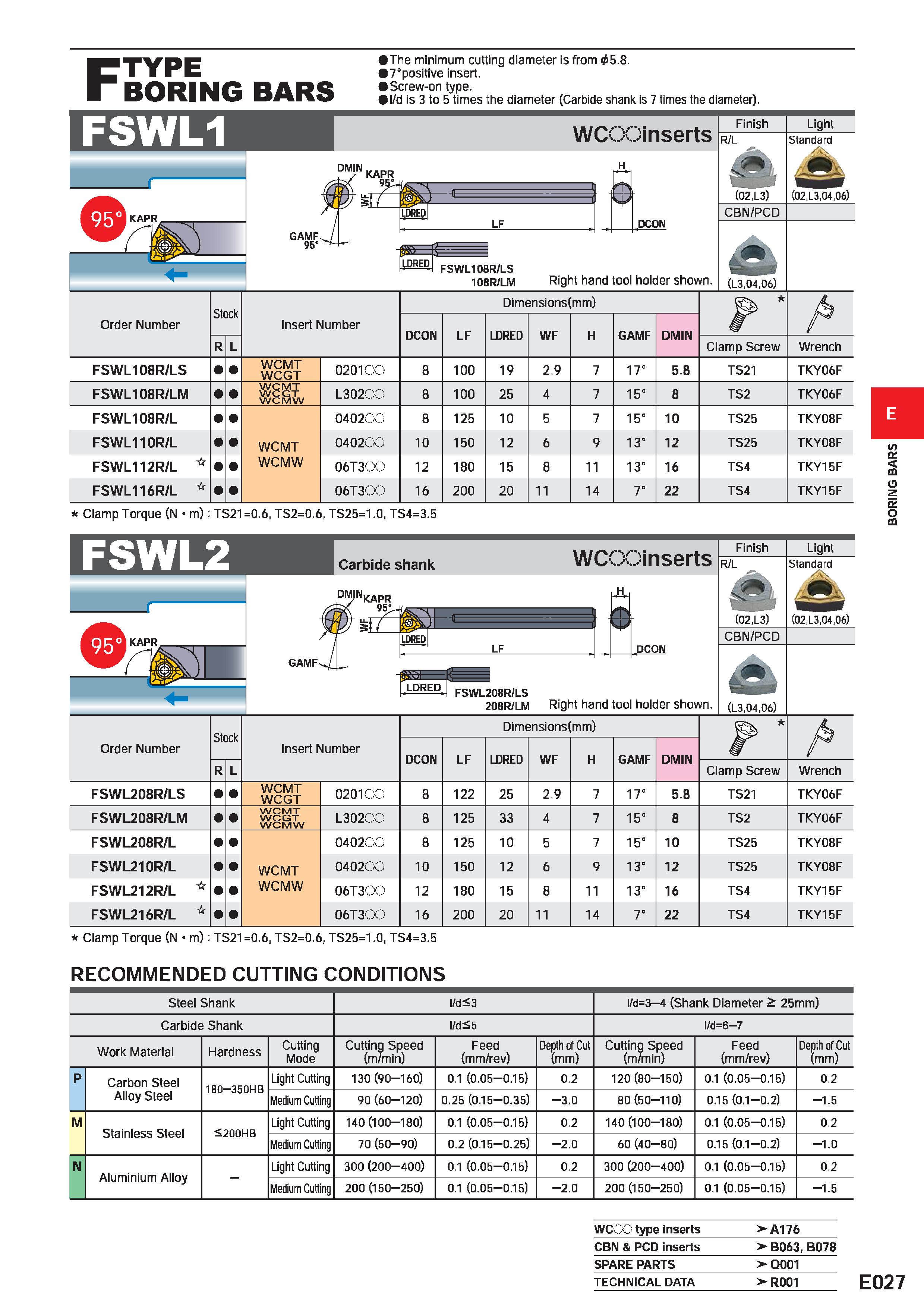

Ftype BORING BARS The minimum cutting diameter is from 05.8. 7°positive insert. Screw-on type. i/d is 3 to 5 times the diameter (Carbide shank is 7 times the diameter). WCOOinserts KAPR FSWL108R/LS 108R/LM Right hand tool holder shown. Finish CBN/PCD (L3,04,06) Order Number Stock Insert Number Dimensions(mm) DCON LF LDRED WF H GAMF DMIN R L Clamp Screw Wrench FSWL108R/LS WCMT WCGT 0201 8 100 19 2.9 7 17° 5.8 TS21 TKY06F FSWL108R/LM WCMT WCGT WCMW L30200 8 100 25 4 7 15° 8 TS2 TKY06F FSWL108R/L 0402 . .. 8 125 10 5 7 15° 10 TS25 TKY08F FSWL110R/L WCMT 0402..: 10 150 12 6 9 13° 12 TS25 TKY08F FSWL112R/L WCMW 06T300 12 180 15 8 11 13° 16 TS4 TKY15F FSWL116R/L 06T300 16 200 20 11 14 7° 22 TS4 TKY15F Light Clamp Torque (N m) S21 =0.6, TS2=0.6, TS25=1.0, TS4=3.5 Carbide shank DMIN WCOOinserts GAMF FSWL208R/LS 208R/LM Right hand tool holder shown. Finish CBN/PCD (L3.04.06) Order Number Stock Insert Number Dimensions(mm) P ft DCON LF LDRED WF H GAMF DMIN R L Clamp Screw Wrench FSWL208R/LS WCMT WCGT 0201 8 122 25 2.9 7 17° 5.8 TS21 TKY06F FSWL208R/LM WCMT WCGT WCMW L30200 8 125 33 4 7 15° 8 TS2 TKY06F FSWL208R/L 040200 8 125 10 5 7 15° 10 TS25 TKY08F FSWL210R/L WCMT 0402... 10 150 12 6 9 13° 12 TS25 TKY08F FSWL212R/L WCMW 06T300 12 180 15 8 11 13° 16 TS4 TKY15F FSWL216R/L 06T300 16 200 20 11 14 7° 22 TS4 TKY15F Light Clamp Torque (N m) S21 =0.6, TS2=0.6, TS25=1.0, TS4=3.5 RECOMMENDED CUTTING CONDITIONS Steel Shank l/d<3 l/d=3 4 (Shank Diameter > 25mm) Carbide Shank I/d 2 5 l/d=6 7 Work Material Hardness Cutting Mode Cutting Speed (m/m in) Feed (mm/rev) Depth of Cut (mm) Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) P Carbon Steel 180 350HB Light Cutting 130 (90-160) 0.1 (0.05-0.15) 0.2 120 (80-150) 0.1 (0.05-0.15) 0.2 Alloy Steel Medium Cutting 90 (60-120) 0.25 (0.15-0.35) -3.0 80(50-110) 0.15 (0.1 0.2) -1.5 M Stainless Steel 200HB Light Cutting 140(100-180) 0.1 (0.05-0.15) 0.2 140(100-180) 0.1 (0.05-0.15) 0.2 Medium Cutting 70 (50-90) 0.2 (0.15-0.25) -2.0 60 (40-80) 0.15 (0.1 0.2) -1.0 N Aluminium Alloy Light Cutting 300 (200-400) 0.1 (0.05-0.15) 0.2 300 (200-400) 0.1 (0.05-0.15) 0.2 Medium Cutting 200 (150-250) 0.1 (0.05-0.15) -2.0 200 (150-250) 0.1 (0.05-0.15) -1.5 WCOO type inserts >-A176 CBN & PCD inserts > B063, B078 SPARE PARTS >-Q001 TECHNICAL DATA > R001 E E027 BORING BARS
