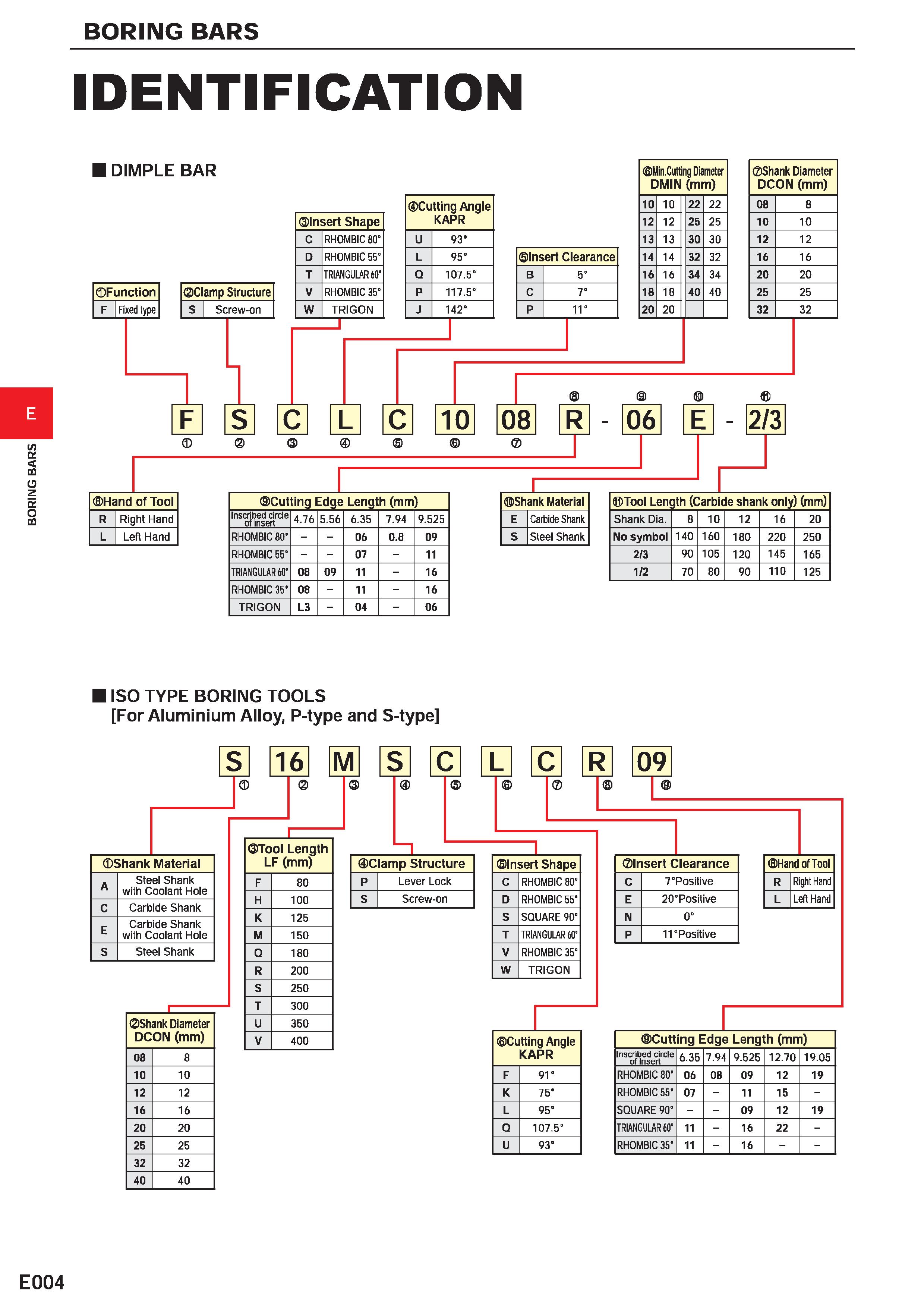

BORING BARS IDENTIFICATION DIMPLE BAR Function F Fixed type Hand of Tool R Right Hand L Left Hand Clamp Structure s Screw-on Insert Shape c RHOMBIC 80° D RHOMBIC 55" T TRIANGULAR 60' V RHOMBIC 35’ w TRIGON Cutting Angle KAPR u 93’ L 95" Q 107.5° P 117.5° J 142° Insert Clearance B 5° C 7° P 11° Min.Cutting Diameter DMIN (mm) 10 10 22 22 12 12 25 25 13 13 30 30 14 14 32 32 16 16 34 34 18 18 40 40 20 20 S C L C 10 08 R - 06 E - 2/3 Cutting Edge Length (mm) Inscribed circle of insert 4.76 5.56 6.35 7.94 9.525 RHOMBIC 80° - - 06 0.8 09 RHOMBIC 55° - - 07 - 11 TRIANGULAR 60' 08 09 11 - 16 RHOMBIC 35’ 08 - 11 - 16 TRIGON L3 - 04 - 06 Shank Material E Carbide Shank S Steel Shank Shank Diameter DCON (mm) 08 8 10 10 12 12 16 16 20 20 25 25 32 32 Tool Len< jth (Carbide shank only) (mm) Shank Dia. 8 10 12 16 20 No symbol 140 160 180 220 250 2/3 90 105 120 145 165 1/2 70 80 90 110 125 ISO TYPE BORING TOOLS For Aluminium Alloy, P-type and S-type Shank Material A Steel Shank with Coolant Hole c Carbide Shank E Carbide Shank with Coolant Hole S Steel Shank Shank Diameter DCON (mm) 08 8 10 10 12 12 16 16 20 20 25 25 32 32 40 40 Tool Length LF (mm) F 80 H 100 K 125 M 150 Q 180 R 200 S 250 T 300 U 350 V 400 S16MSCLCR09 Clamp Structure P Lever Lock s Screw-on Insert Shape C RHOMBIC 80° D RHOMBIC 55“ S SQUARE 90° T TRIANGULAR 60' V RHOMBIC 35° w TRIGON Cutting Angle KAPR F 91° K 75° L 95' Q 107.5° U 93' Insert Clearance C 7°Positive E 20°Positive N 0° P 11 "Positive Hand of Tool R Right Hand L Left Hand Cutting Edge Length (mm) Inscribed circle of insert 6.35 7.94 9.525 12.70 19.05 RHOMBIC 80' 06 08 09 12 19 RHOMBIC 55' 07 - 11 15 - SQUARE 90° - - 09 12 19 TRIANGULAR 60' 11 - 16 22 - RHOMBIC 35' 11 - 16 - - E004
