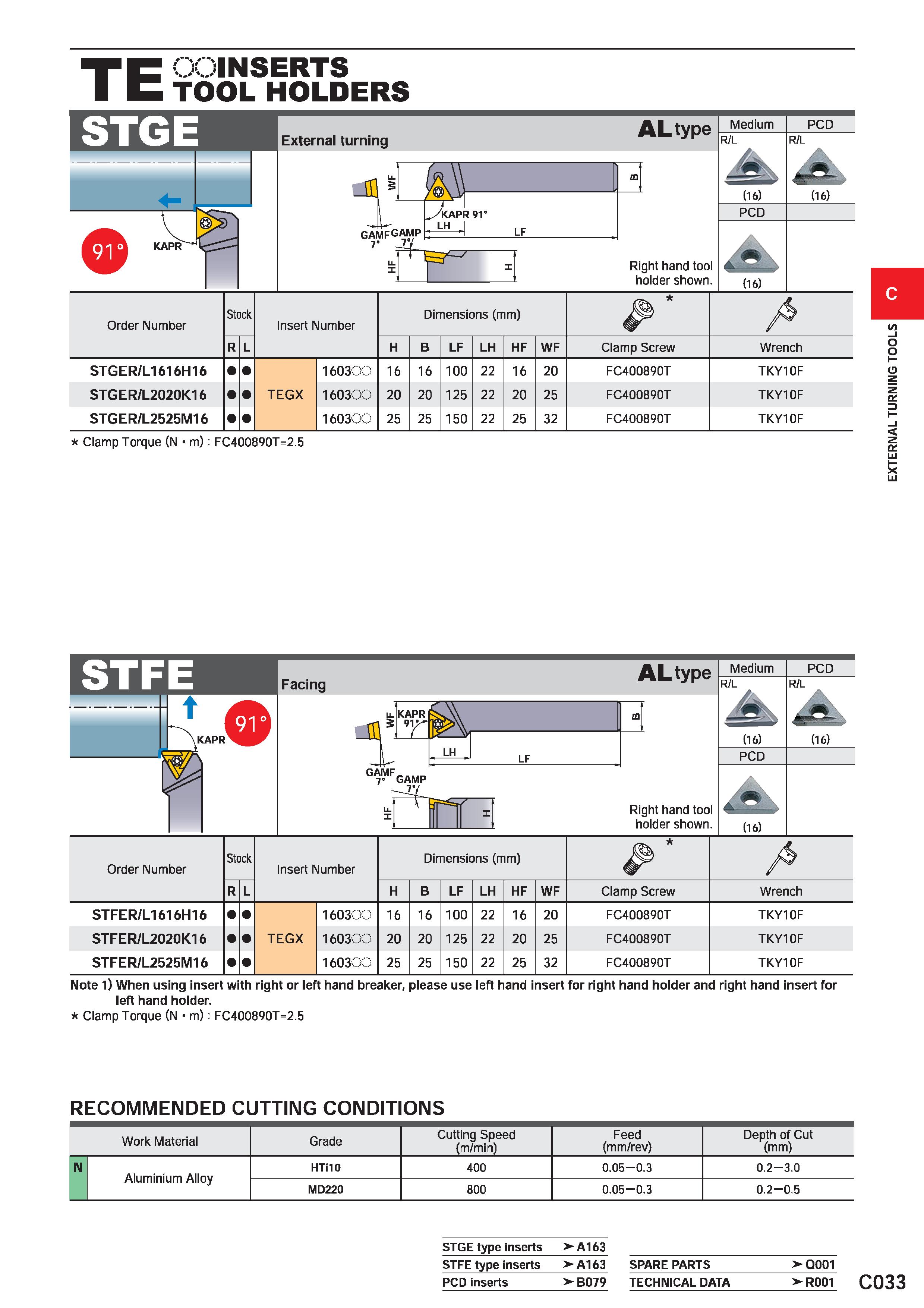

INSERTS TOOL HOLDERS J ’ External turning X GAMFGAMP LF X ALtype Right hand tool holder shown. Medium PCD PCD Order Number Stock Insert Number Dimensions (mm) A R L H B LF LH HF WF Clamp Screw Wrench STGER/L1616H16 160300 16 16 100 22 16 20 FC400890T TKY10F STGER/L2020K16 TEGX 160300 20 20 125 22 20 25 FC400890T TKY10F STGER/L2525M16 160300 25 25 150 22 25 32 FC400890T TKY10F Clamp Torque (N m) : FC400890T=2.5 STFE Facing ALtype KAPR SA m 91V" 1 \v LH LF GAMF V GAMP Right hand tool holder shown. Medium PCD (16) PCD Order Number Stock Insert Number Dimensions (mm) / R L H B LF LH HF WF Clamp Screw Wrench STFER/L1616H16 160300 16 16 100 22 16 20 FC400890T TKY10F STFER/L2020K16 TEGX 160300 20 20 125 22 20 25 FC400890T TKY10F STFER/L2525M16 160300 25 25 150 22 25 32 FC400890T TKY10F Note 1) When using insert with right or left hand breaker, please use left hand insert for right hand holder and right hand insert for left hand holder. Clamp Torque (N m) : FC400890T=2.5 RECOMMENDED CUTTING CONDITIONS Work Material Grade Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) N Aluminium Alloy HTi10 400 0.05-0.3 0.2 3.0 MD220 800 0.05-0.3 0.2 0.5 STGE type inserts > A163 STFE type inserts > A163 SPARE PARTS >Q001 PCD inserts >B079 TECHNICAL DATA > rooi C033 EXTERNAL TURNING TOOLS
