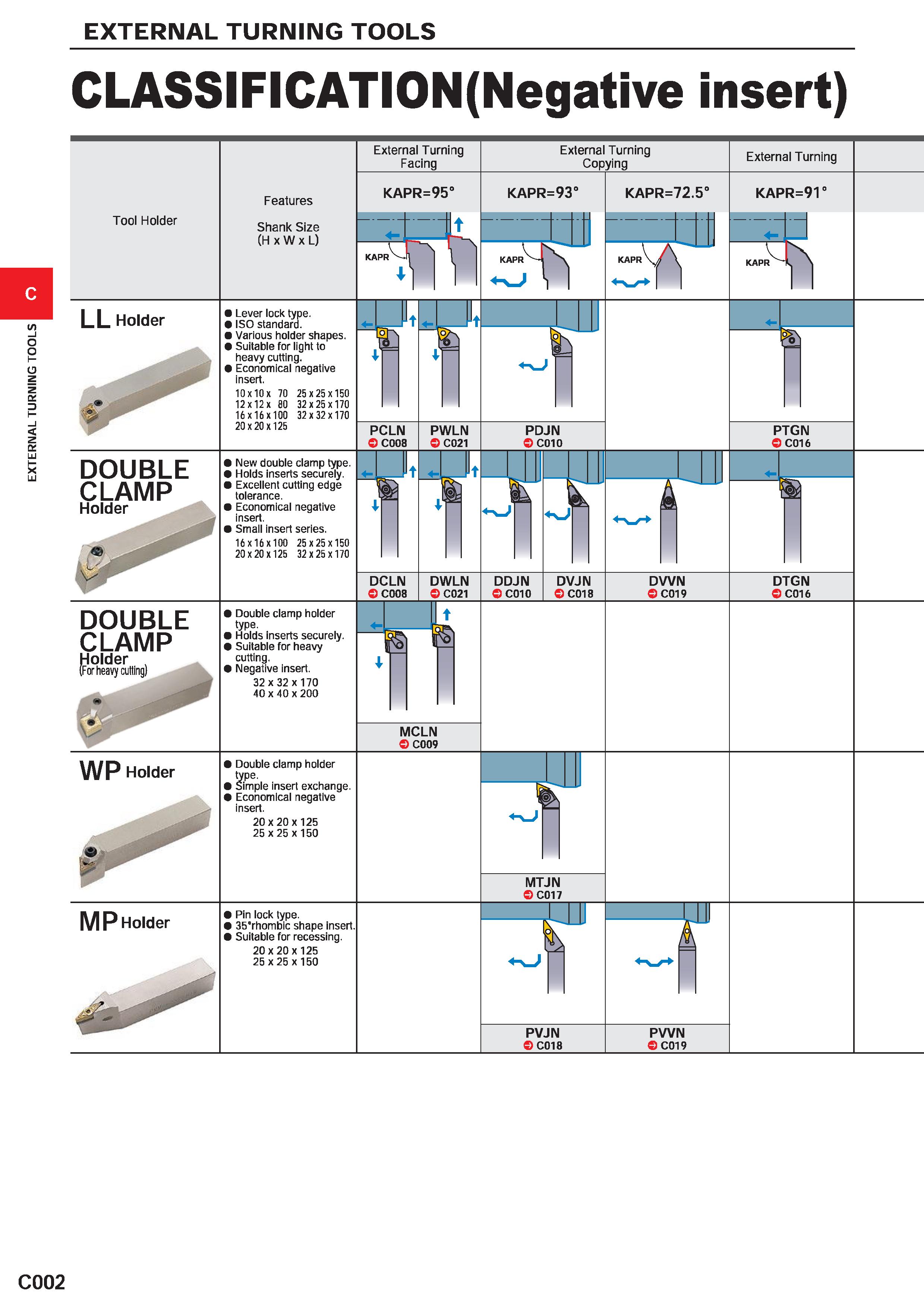

EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS CLASSIFICATION(Negative insert) Tool Holder Features Shank Size (H x W x L) External Turning Facing External Turning Copying External Turning LL Holder Lever lock type. ISO standard. Various holder shapes. Suitable for light to heavy cutting. Economical negative insert. 10x10x 70 25x25x150 12x 12x 80 32x25x170 16 x16x100 32x32x170 20 x 20x125 PCLN C008 PWLN C021 PDJN coio PTGN C016 DOUBLE CLAMP Holder New double clamp type. Holds inserts securely. Excellent cutting edge tolerance. Economical negative insert. Small insert series. 16x16x100 25 x 25x150 20x20x125 32x25x170 DCLN C008 DWLN C021 DDJN COIO DVJN C018 DVVN C019 DTGN C016 DOUBLE CLAMP Holder , (For heavy cutting) Double clamp holder type. Holds inserts securely. Suitable for heavy cutting. Negative insert. 32x32x 170 40 x 40 x 200 tfj MCLN C009 WP Holder Double clamp holder type. Simple insert exchange. Economical negative insert. 20x20x125 25x25x150 MTJN C017 cnr MP Holder i Pin lock type, i 35'rhombic shape insert, i Suitable for recessing. 20x20x125 25x25x150 PVJN C018 PVVN C019 KAPR=93° KAPR KAPR=911 m KAPR=72.5° C002
