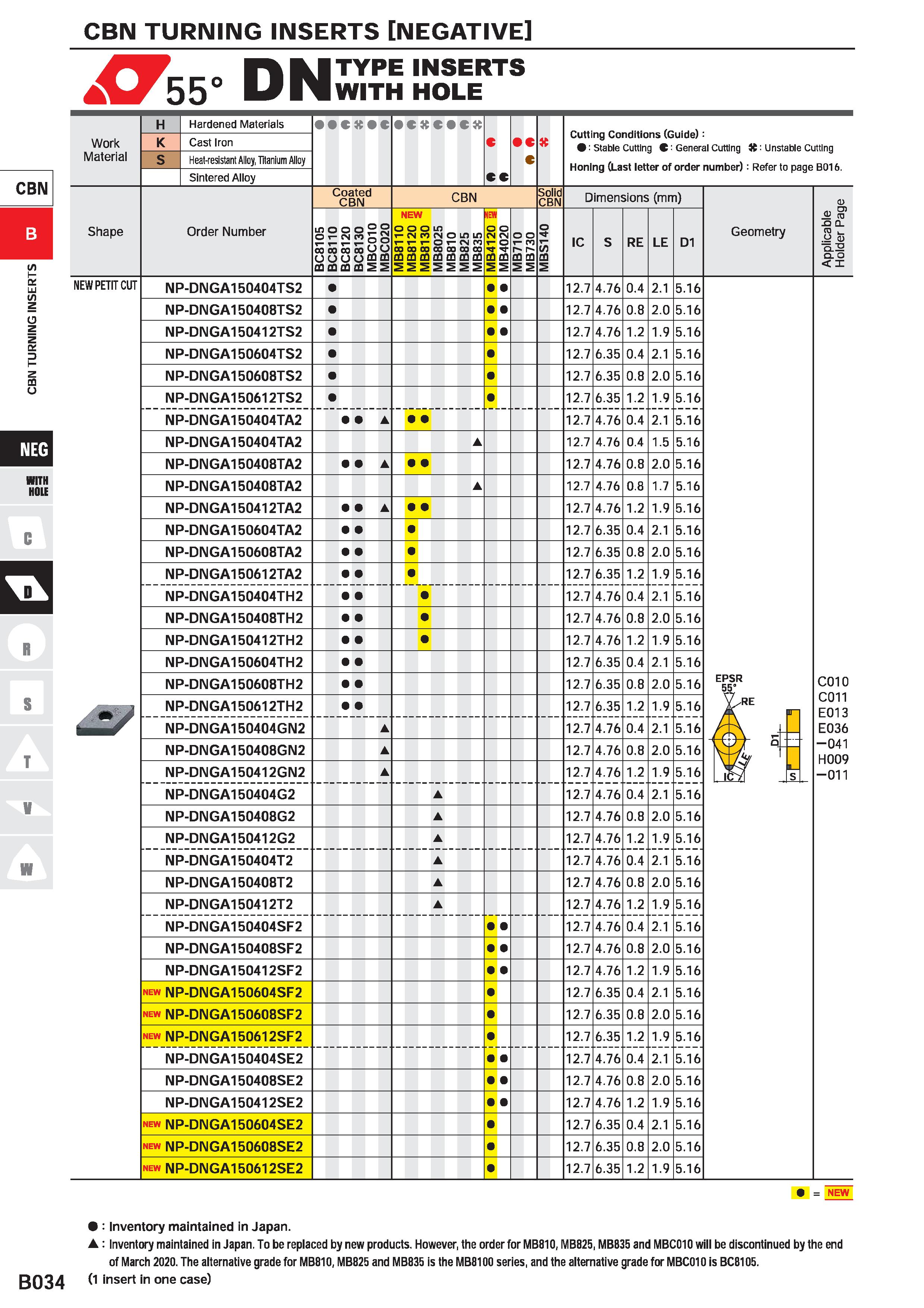

CBN TURNING INSERTS NEGATIVE X755° DN TYPE INSERTS WITH HOLE Work Material CBN Hardened Materials Cast Iron Heat-resistant Alloy, Titanium Alloy Sintered Alloy CC c c Cutting Conditions (Guide): : Stable Cutting C: General Cutting : Unstable Cutting Honing (Last letter of order number): Refer to page B016. Shape Coated CBN CBN Solid CBN Dimensions (mm) Order Number 1 BC8105 o 00 O GO BC8120 BC8130 MBC010 IMBC020 I NEW O 00 00 00 m m m sss MB8025 o CO 0 5 MB825 I MB835 I MB4120 i I MB4020 I MB710 I MB730 I MBS140 IC S RE LE D1 NP-DIMGA150404TS2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408TS2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412TS2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150604TS2 12.7 6.35 0.4 2.1 5.16 NP-DIMGA150608TS2 12.7 6.35 0.8 2.0 5.16 NP-DIMGA150612TS2 12.7 6.35 1.2 1.9 5.16 NP-DIMGA150404TA2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150404TA2 12.7 4.76 0.4 1.5 5.16 NP-DIMGA150408TA2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150408TA2 12.7 4.76 0.8 1.7 5.16 NP-DIMGA150412TA2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150604TA2 12.7 6.35 0.4 2.1 5.16 NP-DIMGA150608TA2 12.7 6.35 0.8 2.0 5.16 NP-DIMGA150612TA2 12.7 6.35 1.2 1.9 5.16 NP-DIMGA150404TH2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408TH2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412TH2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150604TH2 12.7 6.35 0.4 2.1 5.16 NP-DIMGA150608TH2 12.7 6.35 0.8 2.0 5.16 NP-DIMGA150612TH2 12.7 6.35 1.2 1.9 5.16 NP-DIMGA150404GN2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408GN2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412GN2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150404G2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408G2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412G2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150404T2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408T2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412T2 12.7 4.76 1.2 1.9 5.16 NP-DIMGA150404SF2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408SF2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412SF2 12.7 4.76 1.2 1.9 5.16 new NP-DIMGA150604SF2 12.7 6.35 0.4 2.1 5.16 new NP-DIMGA150608SF2 12.7 6.35 0.8 2.0 5.16 new NP-DIMGA150612SF2 12.7 6.35 1.2 1.9 5.16 NP-DIMGA150404SE2 12.7 4.76 0.4 2.1 5.16 NP-DIMGA150408SE2 12.7 4.76 0.8 2.0 5.16 NP-DIMGA150412SE2 12.7 4.76 1.2 1.9 5.16 new NP-DIMGA150604SE2 12.7 6.35 0.4 2.1 5.16 new NP-DIMGA150608SE2 12.7 6.35 0.8 2.0 5.16 new NP-DIMGA150612SE2 12.7 6.35 1.2 1.9 5.16 Geometry 0 .22 -Q Q. ro y 5j ‘a. 2 Q. O I NEW PETIT CUT C3 co o WITH HOIE TV R S T V C010 C011 E013 E036 -041 H009 -011 = NEW : Inventory maintained in Japan. : Inventory maintained in Japan. To be replaced by new products. However, the order for MB810, MB825, MB835 and MBC010 will be discontinued by the end of March 2020. The alternative grade for MB810, MB825 and MB835 is the MB8100 series, and the alternative grade for MBC010 is BC8105. B034 (1 insert in one case)
