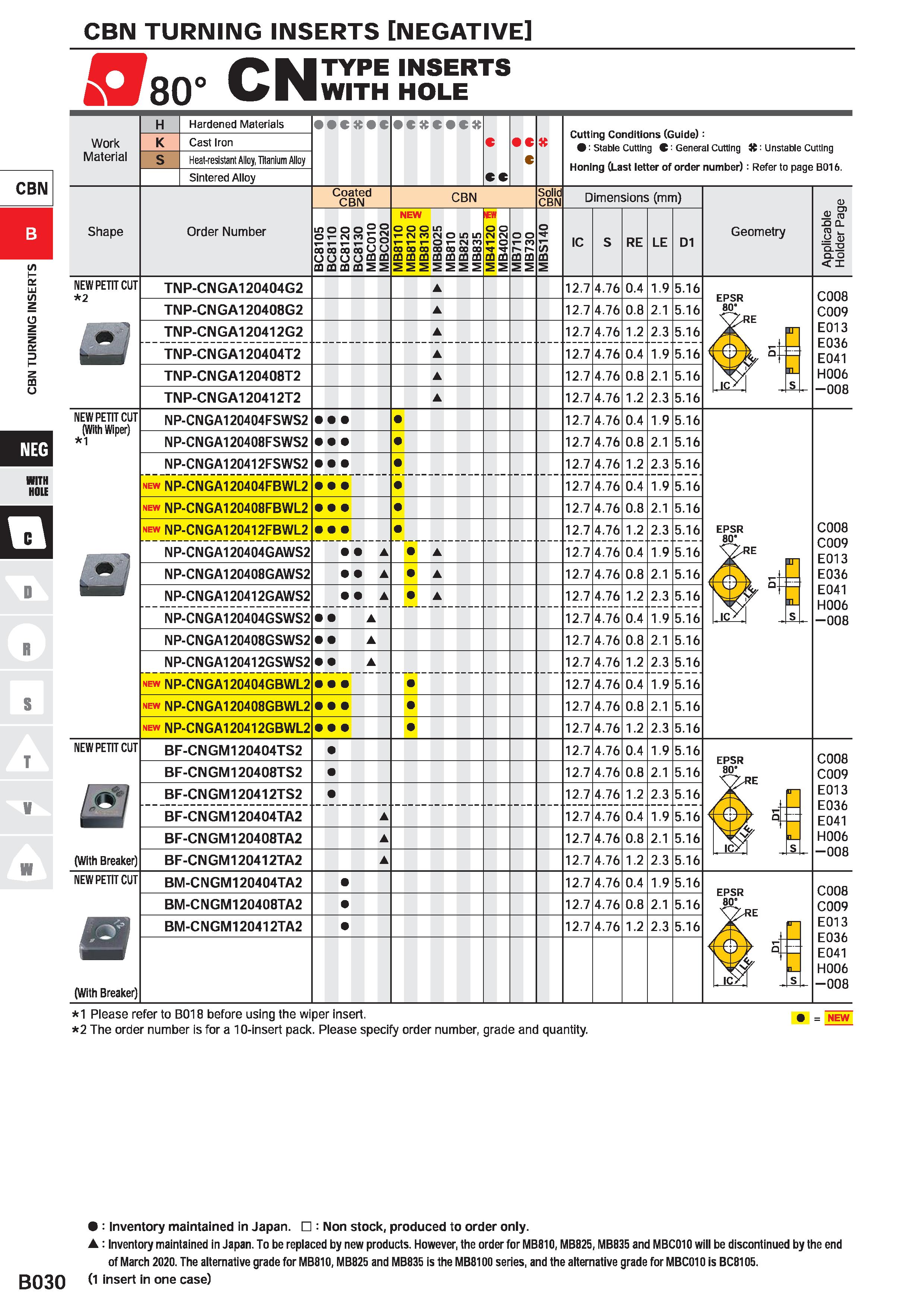

CBN TURNING INSERTS NEGATIVE 08o° CN TYPE INSERTS WITH HOLE CBN Work Material Hardened Materials Cast Iron Heat-resistant Alloy, Titanium Alloy Sintered Alloy C cc Cutting Conditions (Guide): : Stable Cutting C: General Cutting : Unstable Cutting Honing (Last letter of order number): Refer to page B016. Coated CBN CBN Solid CBN Dimensions (mm) Shape Order Number BC8105 BC8110 BC8120 BC8130 MBC010 IMBC020 I NEW o r- N "5 00 00 00 CO Q co sss MB8025 MB810 MB825 I MB835 I MB4120 I MB4020 MB710 MB730 I MBS140 IC S RE LE D1 TNP-CNGA120404G2 12.7 4.76 0.4 1.9 5.16 TNP-CNGA120408G2 12 7 4.76 0.8 2.1 5.16 TNP-CNGA120412G2 12.7 4.76 1.2 2.3 5.16 TNP-CNGA120404T2 12.7 4.76 0.4 1.9 5.16 TNP-CNGA120408T2 12.7 4.76 0.8 2.1 5.16 TNP-CNGA120412T2 12.7 4.76 1.2 2.3 5.16 NP-CNGA120404FSWS2 12.7 4.76 0.4 1.9 5.16 NP-CNGA120408FSWS2 12.7 4.76 0.8 2.1 5.16 NP-CNGA120412FSWS2 12.7 4.76 1.2 2.3 5.16 new NP-CNGA120404FBWL2 12.7 4.76 0.4 1.9 5.16 new NP-CNGA120408FBWL2 12.7 4.76 0.8 2.1 5.16 new NP-CNGA120412FBWL2 12.7 4.76 1.2 2.3 5.16 NP-CNGA120404GAWS2 12.7 4.76 0.4 1.9 5.16 NP-CNGA120408GAWS2 12.7 4.76 0.8 2.1 5.16 NP-CNGA120412GAWS2 12.7 4.76 1.2 2.3 5.16 NP-CNGA120404GSWS2 12.7 4.76 0.4 1.9 5.16 NP-CNGA120408GSWS2 12.7 4.76 0.8 2.1 5.16 NP-CNGA120412GSWS2 12.7 4.76 1.2 2.3 5.16 new NP-CNGA120404GBWL2 12.7 4.76 0.4 1.9 5.16 new NP-CNGA120408GBWL2 12.7 4.76 0.8 2.1 5.16 new NP-CNGA120412GBWL2 12.7 4.76 1.2 2.3 5.16 BF-CNGM120404TS2 12.7 4.76 0.4 1.9 5.16 BF-CNGM120408TS2 12.7 4.76 0.8 2.1 5.16 BF-CNGM120412TS2 12.7 4.76 1.2 2.3 5.16 BF-CNGM120404TA2 12.7 4.76 0.4 1.9 5.16 BF-CNGM120408TA2 12.7 4.76 0.8 2.1 5.16 BF-CNGM120412TA2 12 7 4.76 1.2 2.3 5.16 BM-CNGM120404TA2 12.7 4.76 0.4 1.9 5.16 BM-CNGM120408TA2 12.7 4.76 0.8 2.1 5.16 BM-CNGM120412TA2 12.7 4.76 1.2 2.3 5.16 Geometry 0 .22 -Q Q. ro y 5j ‘a. 2 Q. O I 13 CD O NEW PETIT CUT 2 'j= C008 C009 E013 E036 E041 H006 -008 WITH H01E D R S T V NEW PETIT CUT (With Wiper) 1 'j= C008 C009 E013 E036 E041 H006 -008 NEW PETIT CUT r (With Breaker) C008 C009 E013 E036 E041 H006 -008 NEW PETIT CUT (With Breaker) C008 C009 E013 E036 E041 H006 -008 1 Please refer to B018 before using the wiper insert. 2 The order number is for a 10-insert pack. Please specify order number, grade and quantity. NEW : Inventory maintained in Japan. : Non stock, produced to order only. : Inventory maintained in Japan. To be replaced by new products. However, the order for MB810, MB825, MB835 and MBC010 will be discontinued by the end of March 2020. The alternative grade for MB810, MB825 and MB835 is the MB8100 series, and the alternative grade for MBC010 is BC8105. B030 (1 insert in one case)
