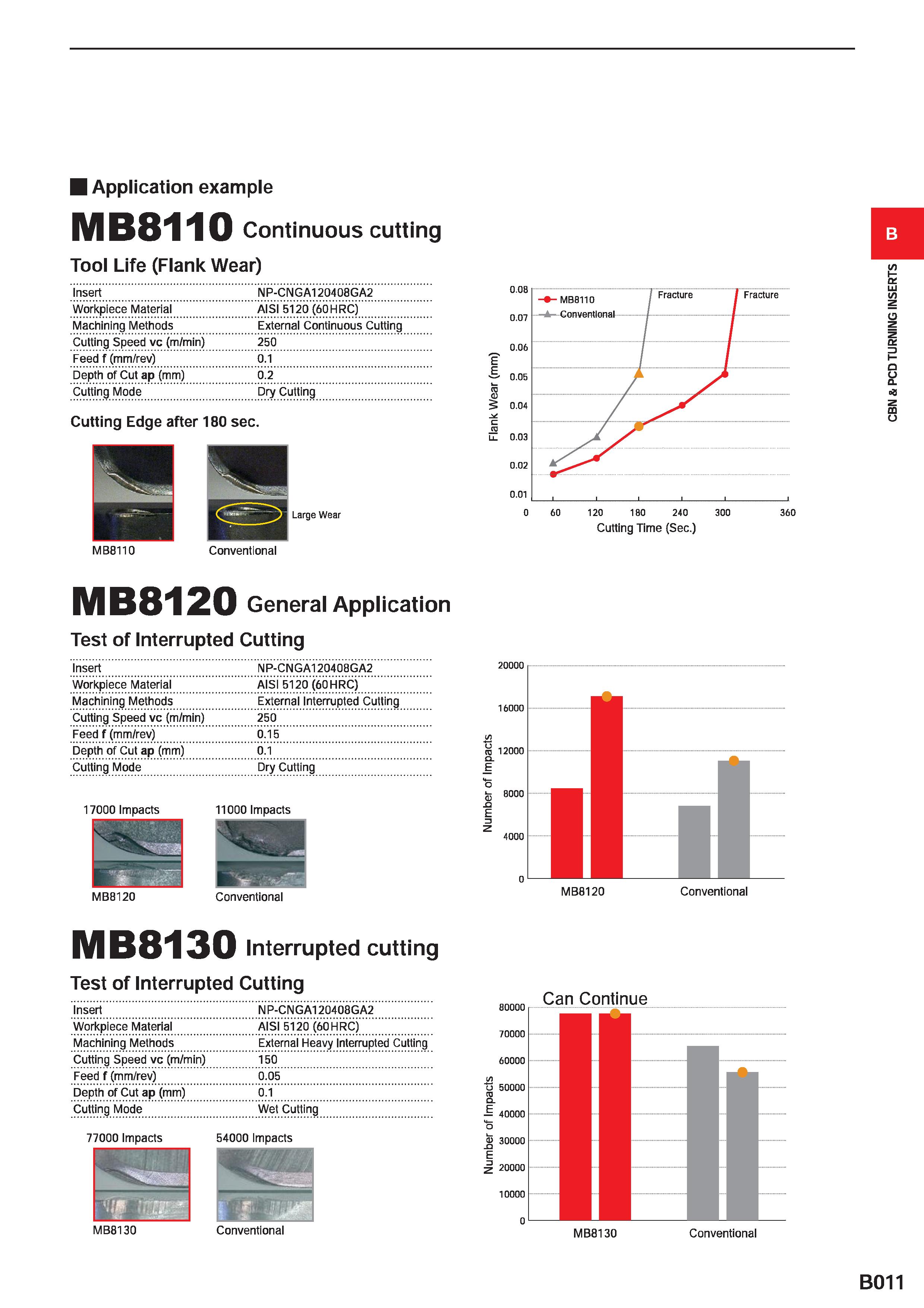

Application example MB8110 Continuous cutting Tool Life (Flank Wear) Insert Workpiece Material Machining Methods Cutting Speed vc (m/min) Feed f (mm/rev) Depth of Cut ap (mm) Cutting Mode NP-CNGA120408GA2 ' Al'sj 5120’(66hRC) External Continuous Cutting "250 0.1 0.2 Dry Cutting Cutting Edge after 180 sec. Large Wear Cutting Time (Sec.) MB8110 Conventional MB8120 General Application Test of Interrupted Cutting Insert NP-CNGA120408GA2 Workpiece Material AISI 5120 (60HRC) Machining Methods External Interrupted Cutting Cutting Speed vc (m/min) 250 Feed f (mm/rev) 0.15 Depth of Cut ap (mm) 0.1 Cutting Mode Dry Cutting 17000 Impacts 11000 Impacts '' . J MB8120 Conventional MB8130 Interrupted cutting Test of Interrupted Cutting insert ...NP-CNGA120408GA2 .80000 Workpiece Material’ .Aisi’5120 (60HRC) .70000 Machining Methods External Heavy Interrupted Cutting Cutting Speed vc (m/min) 150 60000 Feed f (mm/rev) 0.05 u. Depth of Cut ap (mm) 0.1 ro 50000 Cutting Mode Wet Cutting E 40000 4 O 77000 Impacts 54000 Impacts a> 30000 Q E -I 20000 MB8120 Conventional Can Continue fig jrJIEg MB8130 Conventional 10000 0 MB8130 Conventional B011 CBN & PCD TURNING INSERTS
