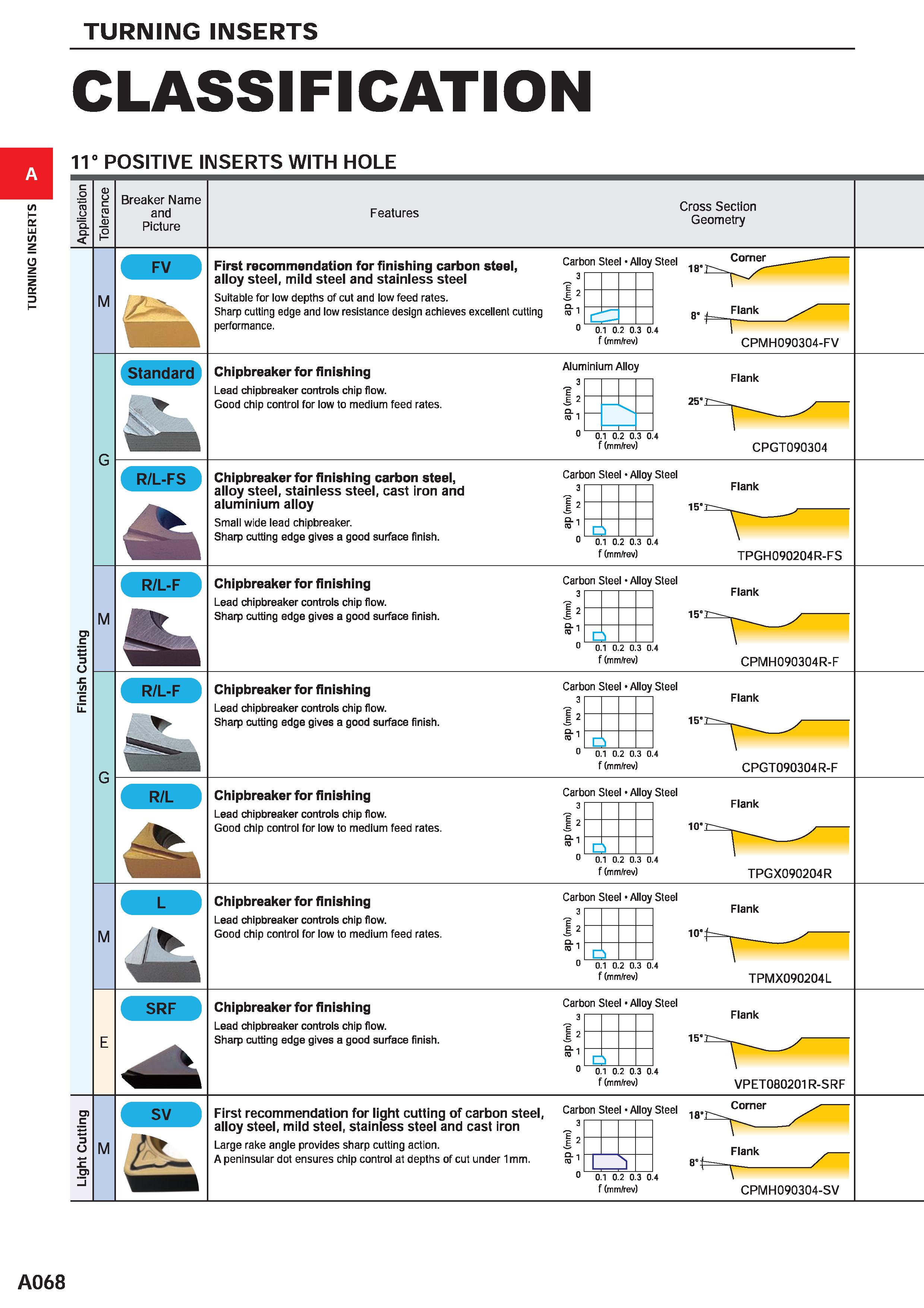

TURNING INSERTS CLASSIFICATION 11° POSITIVE INSERTS WITH HOLE c 0 D O TO O C TO Q. D 1 Breaker Name and Picture Features Cross Section Geometry M FV A First recommendation for finishing carbon steel, alloy steel, mild steel and stainless steel Suitable for low depths of cut and low feed rates. Sharp cutting edge and low resistance design achieves excellent cutting performance. Carbon Steel Alloy Steel 3 I2 Chipbreaker for finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. R/L-FS Chipbreaker for finishing carbon steel, alloy steel, stainless steel, cast iron and aluminium alloy Small wide lead chipbreaker. Sharp cutting edge gives a good surface finish. R/L-F M Chipbreaker for finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. R/L-F Chipbreaker for finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. Chipbreaker for finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. M Chipbreaker for finishing Lead chipbreaker controls chip flow. Good chip control for low to medium feed rates. Chipbreaker for finishing Lead chipbreaker controls chip flow. Sharp cutting edge gives a good surface finish. 0.1 0.2 0.3 0.4 f (mm/rev) ' =“ Flank CPMH090304-FV Aluminium Alloy 3 I2 ro 1 0 0 1 0.2 0.3 0.4 (mm/rev) Flank CPGT090304 Carbon Steel Alloy Steel 3 r Flank 0.1 0.2 0.3 0.4 f (mm/rev) TPGH090204R-FS Carbon Steel Alloy Steel 3 r 12 ° 0.10.2 0.3 0.4 f (mm/rev) Flank CPMH090304R-F Carbon Steel Alloy Steel a r I2 0 0.10.2 0.3 0.4 f (mm/rev) Flank CPGT090304 R-F Carbon Steel Alloy Steel 3 " 2 Flank 0 0.1 0.2 0.3 0.4 f (mm/rev) TPGX090204R Carbon Steel Alloy Steel 3 I2 Flank 0.1 0.2 0.3 0.4 f (mm/rev) TPMX090204L Carbon Steel Alloy Steel 3 I 2 -1 j=j 0.1 0.2 0.3 0.4 f (mm/rev) Flank VPET080201R-SRF O £ O) M First recommendation for light cutting of carbon steel, alloy steel, mild steel, stainless steel and cast iron Large rake angle provides sharp cutting action. A peninsular dot ensures chip control at depths of cut under 1mm. Carbon Steel Alloy Steel 1 3 - Corner 1 'i Flank 0.1 0.2 0.3 0.4 f (mm/rev) CPMH090304-SV A068
