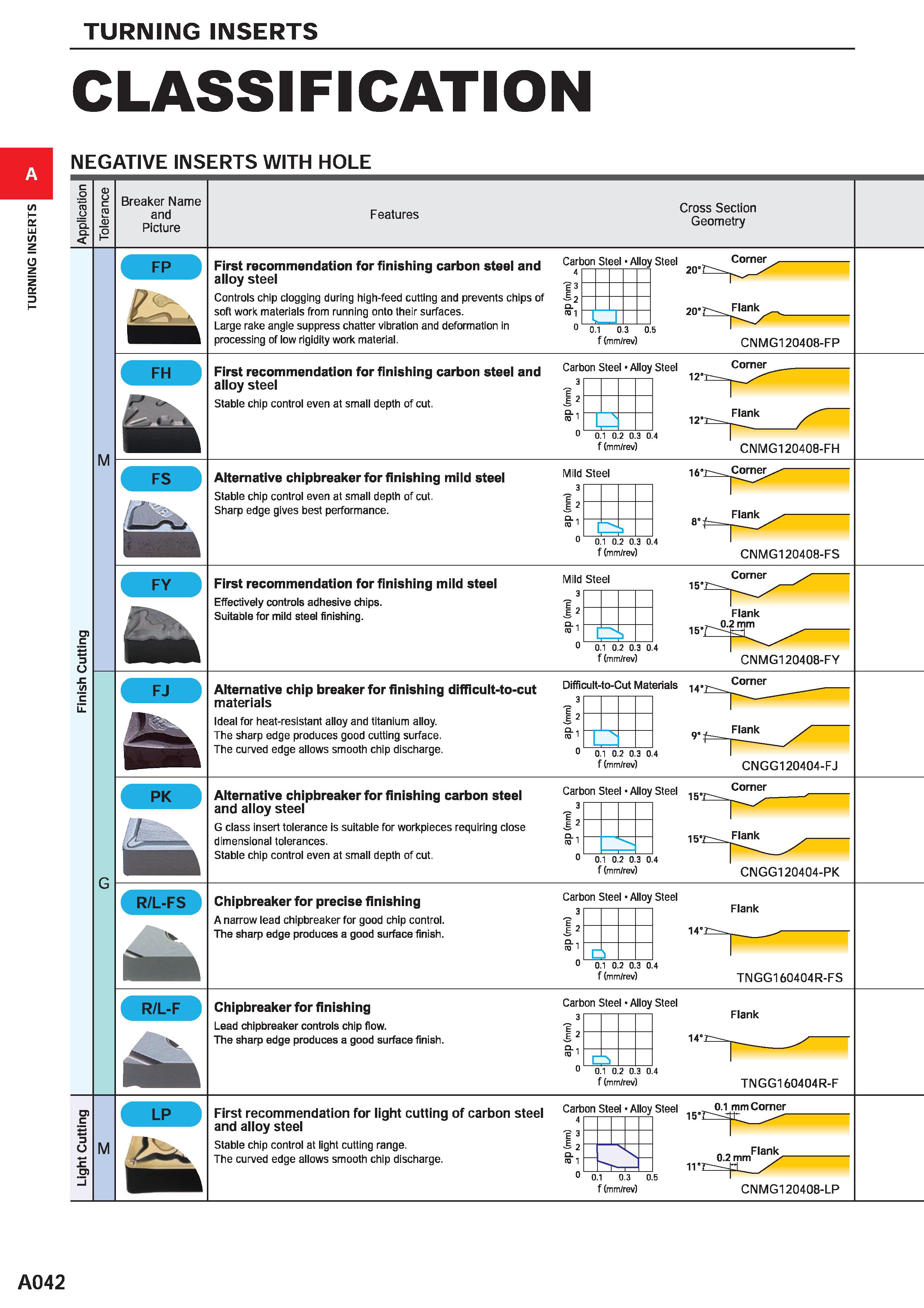

TURNING INSERTS CLASSIFICATION NEGATIVE INSERTS WITH HOLE c 0 D O TO O C TO Q. D I Breaker Name and Picture Features Cross Section Geometry B First recommendation for finishing carbon steel and alloy steel Controls chip clogging during high-feed cutting and prevents chips of soft work materials from running onto their surfaces. Large rake angle suppress chatter vibration and deformation in processing of low rigidity work material. Carbon Steel Alloy Steel 41 13 - 2 Corner rai 0 0.1 0.3 0.5 f (mm/rev) CNMG120408-FP M First recommendation for finishing carbon steel and alloy steel Stable chip control even at small depth of cut, Carbon Steel Alloy Steel 3 12 Corner u U. I V.Z U.3 f (mm/rev) CNMG120408-FH Alternative chipbreaker for finishing mild steel Stable chip control even at small depth of cut. Sharp edge gives best performance. Mild Steel 3 I2 0.1 0.2 0.3 0.4 f (mm/rev) CNMG120408-FS FY First recommendation for finishing mild steel Effectively controls adhesive chips. Suitable for mild steel finishing. Mild Steel 3 I2 i 0.1 0.2 0.3 0.4 f (mm/rev) CNMG120408-FY fj Alternative chip breaker for finishing difficult-to-cut materials Ideal for heat-resistant alloy and titanium alloy. The sharp edge produces good cutting surface. The curved edge allows smooth chip discharge. Difficult-to-Cut Materials 3 r I2 0 0.1 0.2 0.3 0.4 f (mm/rev) Corner Flank CNGG120404-FJ PK Alternative chipbreaker for finishing carbon steel and alloy steel G class insert tolerance is suitable for workpieces requiring close dimensional tolerances. Stable chip control even at small depth of cut. Carbon Steel Alloy Steel 3 12 15°j Corner 0.1 0.2 0.3 0.4 f (mm/rev) CNGG120404-PK R/L-FS Chipbreaker for precise finishing A narrow lead chipbreaker for good chip control. The sharp edge produces a good surface finish. Carbon Steel Alloy Steel 3 12 Flank 14°: 0.1 0.2 0.3 0.4 f (mm/rev) TNGG160404R-FS Chipbreaker for finishing Lead chipbreaker controls chip flow. The sharp edge produces a good surface finish. Carbon Steel Alloy Steel 3 12 0.10 2 0 3 0. Flank TNGG160404R-F O .C O) M First recommendation for light cutting of carbon steel and alloy steel Stable chip control at light cutting range. The curved edge allows smooth chip discharge. Carbon Steel Alloy Steel 0.1 mm Corner 0.2 mm irt= =p. CNMG120408-LP A042
