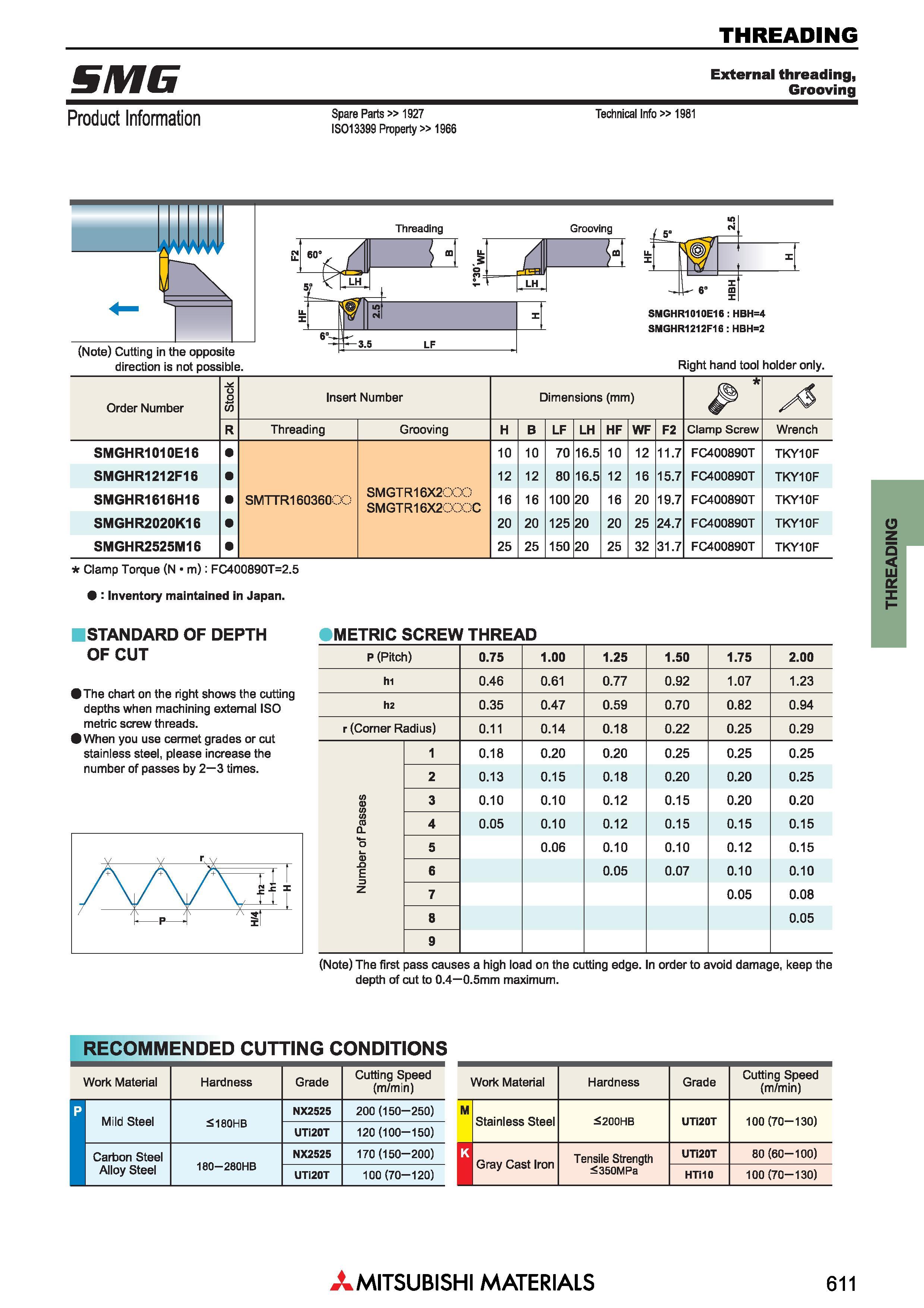

Токарный резьбонарезной инструмент Mitsubishi THREADING Державки и пластины SMG External threading, Grooving Product Information Spare Parts 1927 ISO 13399 Property 1966 Technical Info 1981 Threading Grooving 60 vZ B (Note) Cutting in the opposite direction is not possible. = w un oi X 6%. 3.5 LF i" LH SMGHR1010E16 HBH=4 SMGHR1212F16 HBH=2 Right hand tool holder only. Обозначение Order Number Stock Обозначение сменной режущей пластины Insert Number Размеры в мм Dimensions (mm) R Threading Grooving H B LF LH HF WF F2 Clamp Screw Wrench SMGHR1010E16 10 10 70 16.5 10 12 11.7 FC400890T TKY10F SMGHR1212F16 12 12 80 16.5 12 16 15.7 FC400890T TKY10F SMGHR1616H16 SMTTR16036000 SMGTR16X2 SMGTR16X2. C 16 16 100 20 16 20 19.7 FC400890T TKY10F SMGHR2020K16 20 20 125 20 20 25 24.7 FC400890T TKY10F SMGHR2525M16 25 25 150 20 25 32 31.7 FC400890T TKY10F Clamp Torque (N m): FC400890T=2.5 Inventory maintained in Japan. STANDARD OF DEPTH OF CUT The chart on the right shows the cutting depths when machining external ISO metric screw threads. t When you use cermet grades or cut stainless steel, please increase the number of passes by 2 3 times. 4 METRIC SCREW THREAD P (Pitch) 0.75 1.00 1.25 1.50 1.75 2.00 hi 0.46 0.61 0.77 0.92 1.07 1.23 h2 0.35 0.47 0.59 0.70 0.82 0.94 r (Corner Radius) 0.11 0.14 0.18 0.22 0.25 0.29 1 0.18 0.20 0.20 0.25 0.25 0.25 2 0.13 0.15 0.18 0.20 0.20 0.25 U) Q> (O (O (0 CL 3 0.10 0.10 0.12 0.15 0.20 0.20 4 0.05 0.10 0.12 0.15 0.15 0.15 n O
