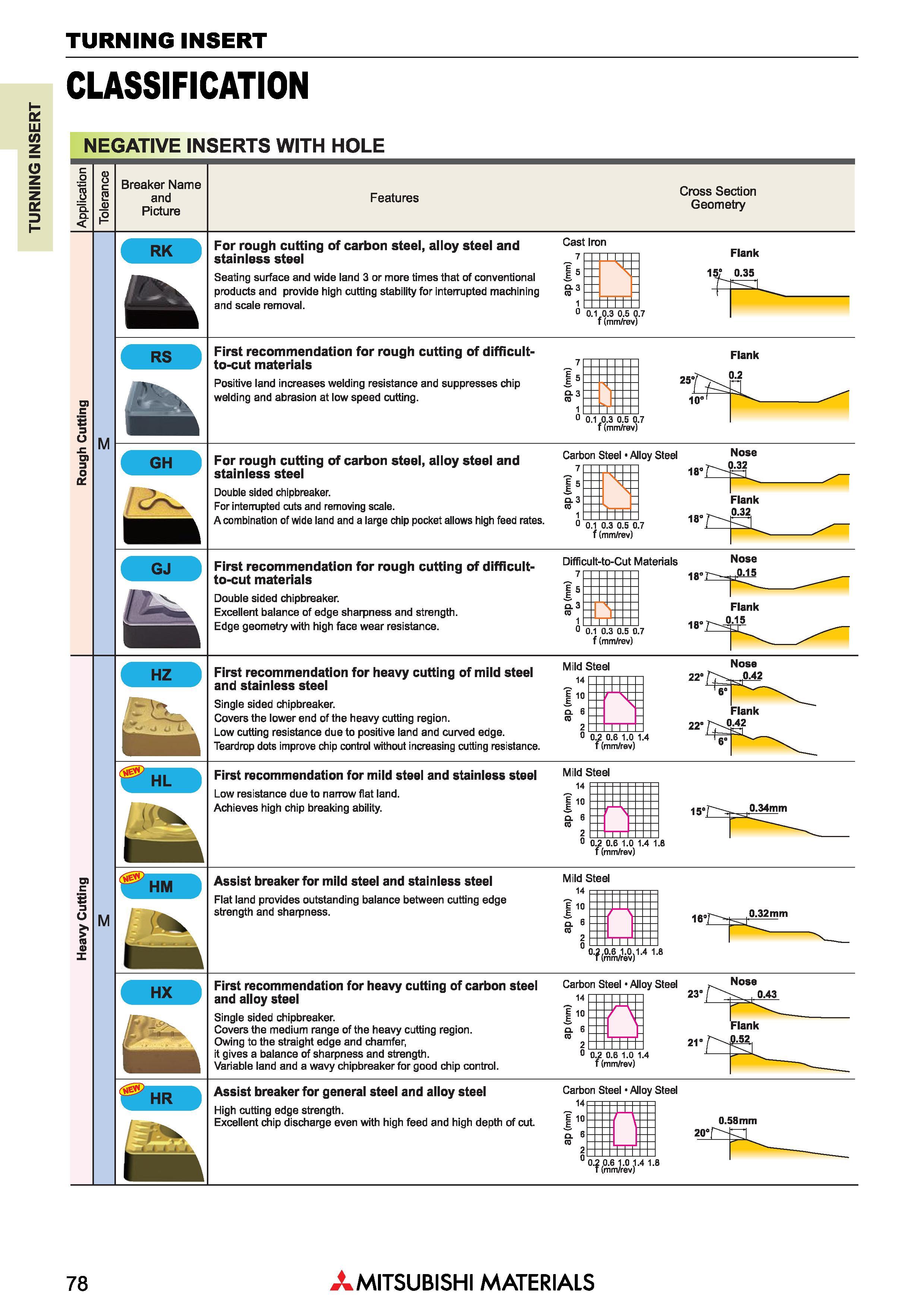

Токарные пластины Mitsubishi TURNING INSERT _ CLASSIFICATION NEGATIVE INSERTS WITH HOLE Q. CL < Breaker Name and Picture Features Cross Section Geometry For rough cutting of carbon steel, alloy steel and stainless steel Seating surface and wide land 3 or more times that of conventional products and provide high cutting stability for interrupted machining and scale removal. Cast Iron 7 1 &3 1 j±t Flank 15 0.35 0 0.1 0.3 0.5 0.7 f (mm/rev) Ui c 5 3 a .c Ui 3 O O' M First recommendation for rough cutting of difficult-to-cut materials Positive land increases welding resistance and suppresses chip welding and abrasion at low speed cutting. 7 I5 9-3 m Flank 0.2 0 0.1.0.3 0.5 0.7 f (mm/rev) GH For rough cutting of carbon steel, alloy steel and stainless steel Double sided chipbreaker. For interrupted cuts and removing scale. A combination of wide land and a large chip pocket allows high feed rates. Carbon Steel Alloy Steel 7 I5 ±tt Nose 0.32 0 0.1 0.3 0.5 0.7 f (mm/rev) Flank ’ cja GJ First recommendation for rough cutting of difficult-to-cut materials Double sided chipbreaker. Excellent balance of edge sharpness and strength. Edge geometry with high face wear resistance. Difficult-to-Cut Materials =:, r f (mm/rev) HZ First recommendation for heavy cutting of mild steel and stainless steel Single sided chipbreaker. Covers the lower end of the heavy cutting region. Low cutting resistance due to positive land and curved edge. Teardrop dots improve chip control without increasing cutting resistance. Mild Steel 14 I10 1 m Nose 22“ 0.42 o 0.2 0.6 1.0 1.4 f (mm/rev) First recommendation for mild steel and stainless steel Low resistance due to narrow flat land. Achieves high chip breaking ability. 0.34mm - ..INI 0 0.2 0.6 1.0 1.4 1.8 f (mm/rev) Cl c S 3 o r 0) HM M Assist breaker for mild steel and stainless steel Flat land provides outstanding balance between cutting edge strength and sharpness. Mild Steel 14 I10 m i6°r - 0.32mm 0.2.0.6 ,1.0.1.4 1.8 t (mm/rev) HX First recommendation for heavy cutting of carbon steel and alloy steel Single sided chipbreaker. Covers the medium range of the heavy cutting region. Owing to the straight edge and chamfer, it gives a balance of sharpness and strength. Variable land and a wavy chipbreaker for good chip control. Carbon Steel Alloy Steel 14 10 Nose 23’ , 0.43 0 0.2 O.a 1.0 1.4 f (mm/rev) Assist breaker for general steel and alloy steel High cutting edge strength. Excellent chip discharge even with high feed and high depth of cut. Carbon Steel Alloy Steel 14 p 110 m 0.58 mm 0.20.6 1.0 ,1.4 1.8 78 Mitsubishi Materials
