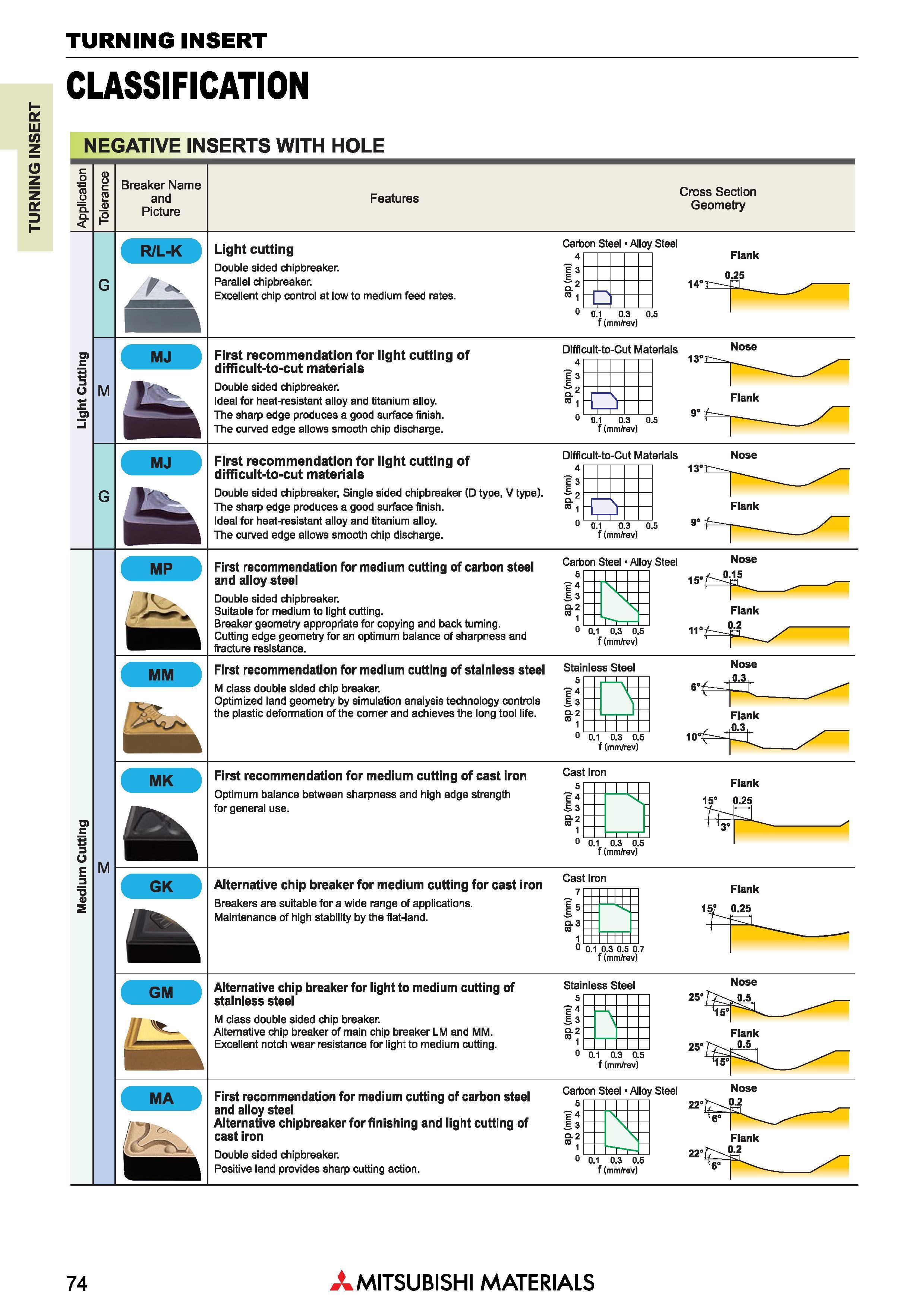

Токарные пластины Mitsubishi TURNING INSERT _ CLASSIFICATION NEGATIVE INSERTS WITH HOLE CL CL < Breaker Name and Picture Features Cross Section Geometry Light cutting Double sided chipbreaker. Parallel chipbreaker. Excellent chip control at low to medium feed rates. Carbon Steel Alloy Steel 4 E 3 E X2 0.1 0.3 0 f (mm/rev) o - .c Ui M First recommendation for light cutting of difficult-to-cut materials Double sided chipbreaker. Ideal for heat-resistant alloy and titanium alloy. The sharp edge produces a good surface finish. The curved edge allows smooth chip discharge. Difficult-to-Cut Materials 4 Nose 0.1 0.3 0.5 f (mm/rev) MJ First recommendation for light cutting of difficult-to-cut materials Double sided chipbreaker, Single sided chipbreaker (D type, V type). The sharp edge produces a good surface finish. Ideal for heat-resistant alloy and titanium alloy. The curved edge allows smooth chip discharge. Difficult-to-Cut Materials 4r Nose 0 0.1 0.3 0.5 f (mm/rev) First recommendation for medium cutting of carbon steel and alloy steel Double sided chipbreaker. Suitable for medium to light cutting. Breaker geometry appropriate for copying and back turning. Cutting edge geometry for an optimum balance of sharpness and fracture resistance. Carbon Steel Alloy Steel 5 MM First recommendation for medium cutting of stainless steel M class double sided chip breaker. Optimized land geometry by simulation analysis technology controls the plastic deformation of the corner and achieves the long tool life. Stainless Steel 5 £4 13 S'2 "l 0 0.1 0.3 0.5 f (mm/rev) O) c S S o M First recommendation for medium cutting of cast iron Optimum balance between sharpness and high edge strength for general use. Cast Iron 5 E" 4 S 3 °-2 CD Z 1 0 0.1 15° Flank 0.25 . 0.3 0.5 f (mm/rev) Alternative chip breaker for medium cutting for cast iron Breakers are suitable for a wide range of applications. Maintenance of high stability by the flat-land. Cast Iron I 5 &3 1 0 0.1 0.3 0.5 0.7 f (mm/rev) Alternative chip breaker for light to medium cutting of stainless steel M class double sided chip breaker. Alternative chip breaker of main chip breaker LM and MM. Excellent notch wear resistance for light to medium cutting. Stainless Steel 5 13 S'2 1 o 0.1 0.3 0.5 f (mm/rev) First recommendation for medium cutting of carbon steel and alloy steel Alternative chipbreaker for finishing and light cutting of cast iron Double sided chipbreaker. Positive land provides sharp cutting action. Carbon Steel Alloy Steel 5 e 13 S'2 "1 0 0.1 0.3 0.5 f (mm/rev) 74 Mitsubishi Materials
