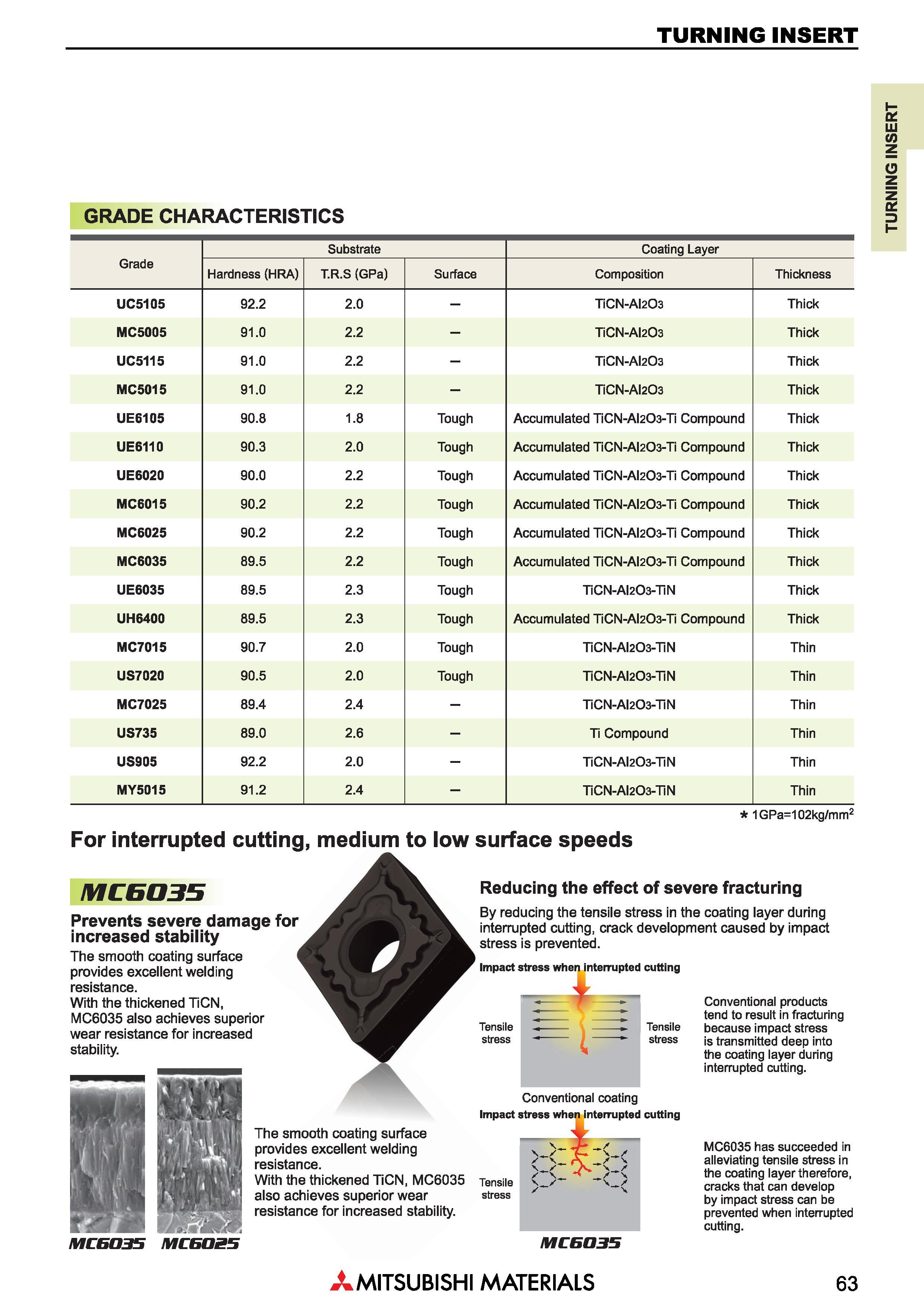

Токарные пластины Mitsubishi TURNING INSERT _ GRADE CHARACTERISTICS Grade Substrate Coating Layer Hardness (HRA) T.R.S (GPa) Surface Composition Thickness UC5105 92.2 2.0 - TiCN-Al203 Thick MC5005 91.0 2.2 - TiCN-Al203 Thick UC5115 91.0 2.2 - TiCN-Al203 Thick MC5015 91.0 2.2 - TiCN-Al203 Thick UE6105 90.8 1.8 Tough Accumulated TiCN-Al203-Ti Compound Thick UE6110 90.3 2.0 Tough Accumulated TiCN-Al203-Ti Compound Thick UE6020 90.0 2.2 Tough Accumulated TiCN-Al203-Ti Compound Thick MC6015 90.2 2.2 Tough Accumulated TiCN-Al203-Ti Compound Thick MC6025 90.2 2.2 Tough Accumulated TiCN-Al203-Ti Compound Thick MC6035 89.5 2.2 Tough Accumulated TiCN-Al203-Ti Compound Thick UE6035 89.5 2.3 Tough TiCN-Al203-71N Thick UH6400 89.5 2.3 Tough Accumulated TiCN-Al203-Ti Compound Thick MC7015 90.7 2.0 Tough TiCN-Al203-71N Thin US7020 90.5 2.0 Tough TiCN-Al203-71N Thin MC7025 89.4 2.4 - TiCN-Al203-71N Thin US735 89.0 2.6 - Ti Compound Thin US905 92.2 2.0 - TiCN-Al203-HN Thin MY5015 91.2 2.4 - TiCN-Al203-71N Thin 1GPa=102kg/mm2 For interrupted cutting, medium to low surface speeds MCGD35 Prevents severe damage for increased stability The smooth coating surface provides excellent welding rpcicta npp With the thickened TiCN, MC6035 also achieves superior wear resistance for increased stability. Reducing the effect of severe fracturing By reducing the tensile stress in the coating layer during interrupted cutting, crack development caused by impact stress is prevented. Impact stress when interrupted cutting Tensile Conventional coating Impact stress when interrupted cutting The smooth coating surface provides excellent welding resistance. With the thickened TiCN, MC6035 Tensile also achieves superior wear stress resistance for increased stability. MCE035 mi MCGOB5 MCBU35 Conventional products tend to result in fracturing because impact stress is transmitted deep into the coating layer during interrupted cutting. MC6035 has succeeded in alleviating tensile stress in the coating layer therefore, cracks that can develop by impact stress can be prevented when interrupted cutting. Mitsubishi Materials 63 TURNING INSERT
