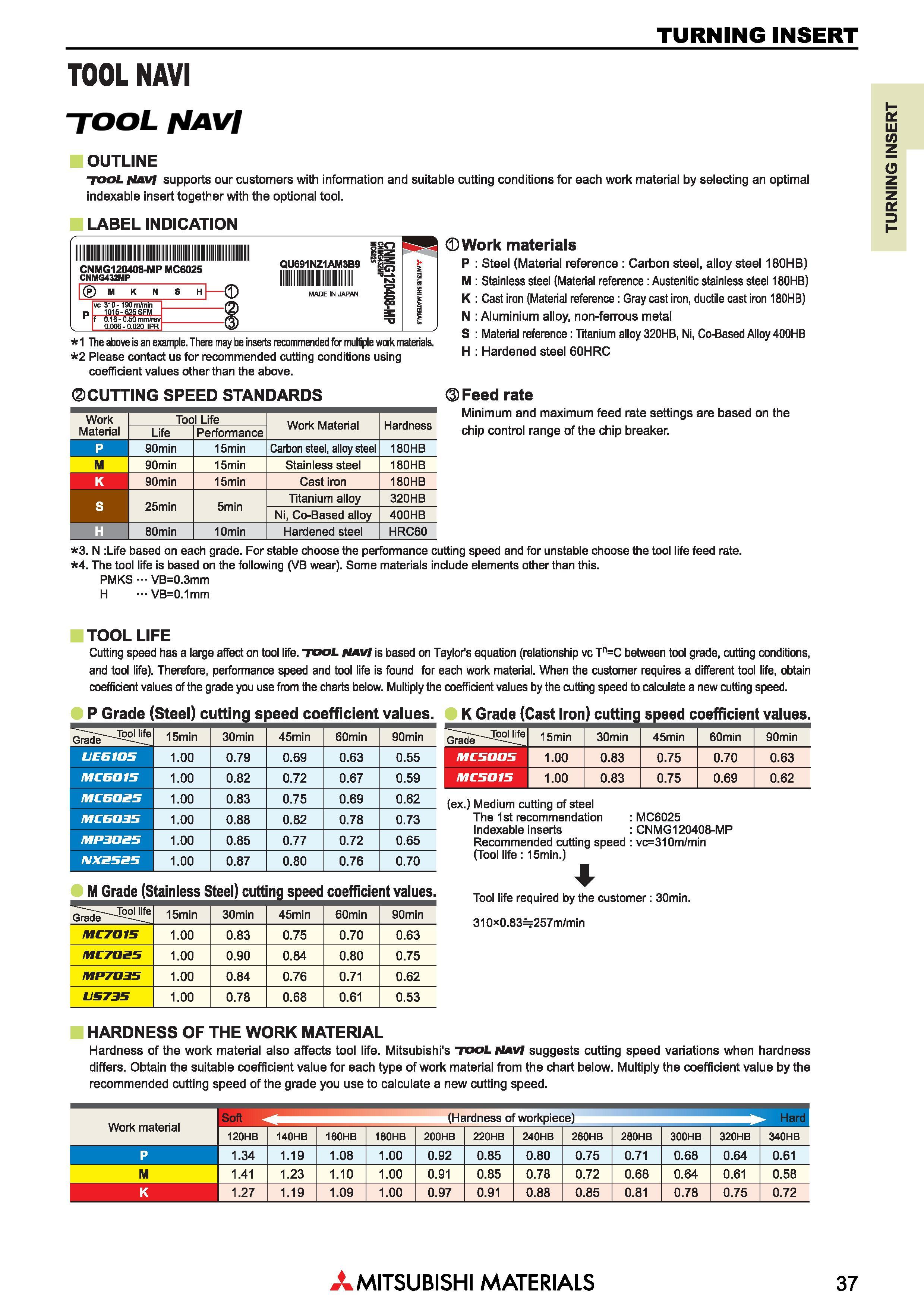

Токарные пластины Mitsubishi TURNING INSERT _ TOOL NAVI tool Navi OUTLINE tool flAvf supports our customers with information and suitable cutting conditions for each work material by selecting an optimal indexable insert together with the optional tool. LABEL INDICATION CNMG120408-MP MC6025 CNMG432MP QUG91NZ1AM3B9 go m 0.16-0.50 mm/rev 0.006-0.020 IPR 13 MADE IN JAPAN 1 The above is an example. There may be inserts recommended for multiple work materials. 2 Please contact us for recommended cutting conditions using coefficient values other than the above. CUTTING SPEED STANDARDS Work Tool Life Обрабатываемые материалы Work Material Hardness Material Life Performance si 90min 15min Carton steel, alloy steel 180HB 90min 15min Нержавеющая сталь Stainless steel 180HB K 90min 15min Cast iron 180HB S 25min 5min Titanium alloy 320HB Ni, Co-Based alloy 400HB H 80min 10min Hardened steel HRC60 Work materials P Steel (Material reference Carbon steel, alloy steel 180HB) M: Нержавеющая сталь Stainless steel (Material reference: Austenitic stainless steel 180HB) K Cast iron (Material reference Gray cast iron, ductile cast iron 180MB) N Aluminium alloy, non-ferrous metal S Material reference: Titanium alloy 320HB, Ni, Co-Based Alloy 400HB H Hardened steel 60HRC Feed rate Minimum and maximum feed rate settings are based on the chip control range of the chip breaker. 3. N :Life based on each grade. For stable choose the performance cutting speed and for unstable choose the tool life feed rate. 4. The tool life is based on the following (VB wear). Some materials include elements other than this. PMKS - VB=0.3mm H VB=0.1mm TOOL LIFE Cutting speed has a large affect on tool life, tool Navi is based on Taylor's equation (relationship vc Tn=C between tool grade, cutting conditions, and tool life). Therefore, performance speed and tool life is found for each work material. When the customer requires a different tool life, obtain coefficient values of the grade you use from the charts below. Multiply the coefficient values by the cutting speed to calculate a new cutting speed. P Grade (Steel) cutting s peed coefficient values. Tpoi life Grade 15min 30min 45m in 60min 90min UEE105 1.00 0.79 0.69 0.63 0.55 MCG015 1.00 0.82 0.72 0.67 0.59 iticeaes 1.00 0.83 0.75 0.69 0.62 MCED35 1.00 0.88 0.82 0.78 0.73 MP3025 1.00 0.85 0.77 0.72 0.65 IVXBBBS 1.00 0.87 0.80 0.76 0.70 M Grade (Stainless S iteel) cutt njsgeed coefficient values. r r -Iool life Grade 15min 30min 45m in 60min 90min MC7015 1.00 0.83 0.75 0.70 0.63 MC7025 1.00 0.90 0.84 0.80 0.75 MP7035 1.00 0.84 0.76 0.71 0.62 US73S 1.00 0.78 0.68 0.61 0.53 K Grade (Cast Iron) cutting speed coefficient values. -Jooi life Grade 15min 30min 45min 60min 90min mcsaas 1.00 0.83 0.75 0.70 0.63 MC50I5 1.00 0.83 0.75 0.69 0.62 (ex.) Medium cutting of steel The 1st recommendation MC6025 Indexable inserts CNMG120408-MP Recommended cutting speed vc=310m/min (Tool life 15min.) Tool life required by the customer: 30min. 310x0.83=257m/min HARDNESS OF THE WORK MATERIAL Hardness of the work material also affects tool life. Mitsubishi's tooL Uwi suggests cutting speed variations when hardness differs. Obtain the suitable coefficient value for each type of work material from the chart below. Multiply the coefficient value by the recommended cutting speed of the grade you use to calculate a new cutting speed. Soft Hard 120HB 140HB 160HB 180MB 200HB 220HB 240HB 260HB 280HB 300HB 320HB 340HB 1.34 1.19 1.08 1.00 0.92 0.85 0.80 0.75 0.71 0.68 0.64 0.61 1.41 1.23 1.10 1.00 0.91 0.85 0.78 0.72 0.68 0.64 0.61 0.58 1.27 1.19 1.09 1.00 0.97 0.91 0.88 0.85 0.81 0.78 0.75 0.72 Mitsubishi Materials 37 TURNING INSERT
