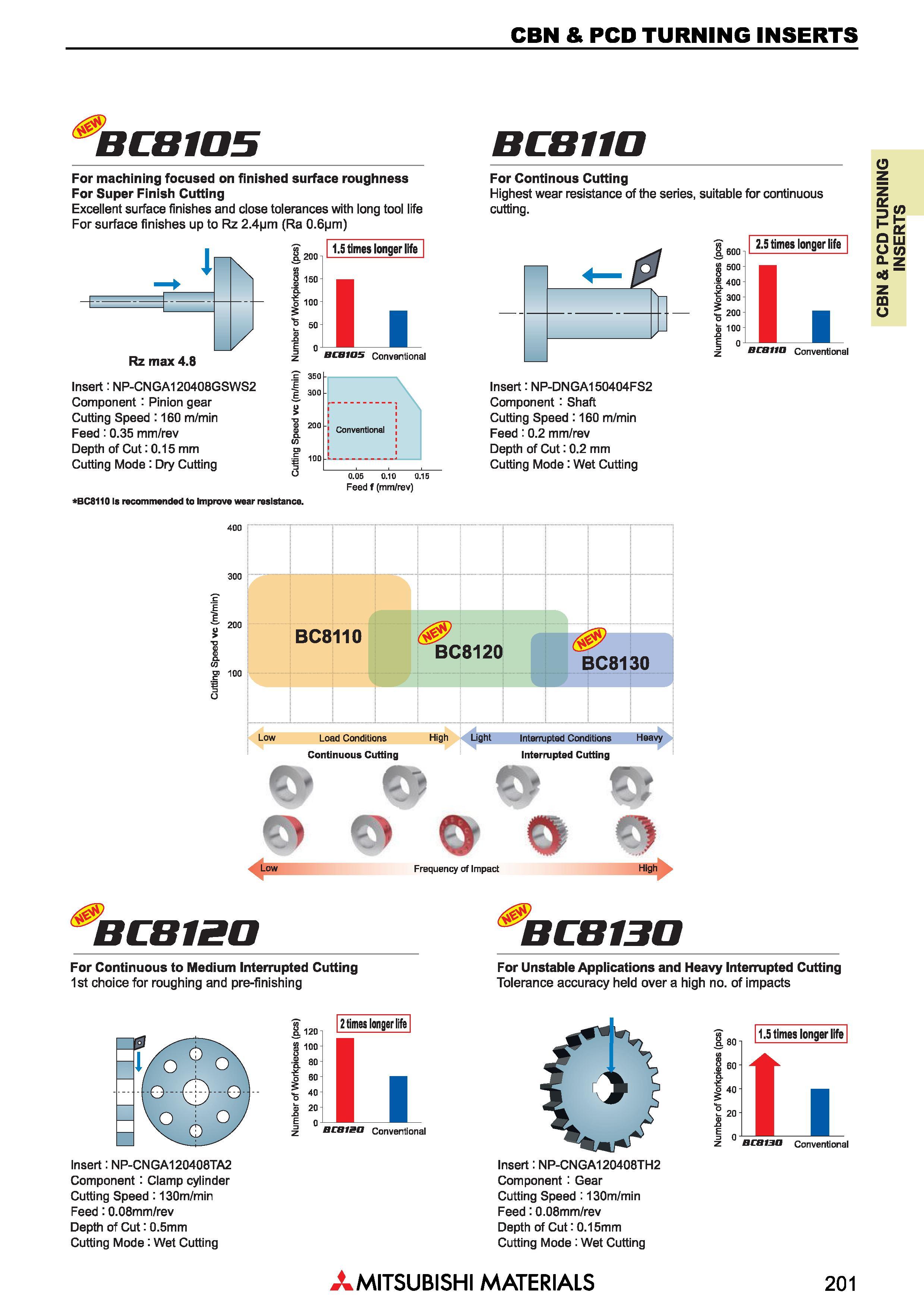

Пластины Mitsubishi из сверхтвердых режущих материалов КНБ и ПКА CBN & PCD TURNING INSERTS _BC81B5 For machining focused on finished surface roughness For Super Finish Cutting Excellent surface finishes and close tolerances with long tool life For surface finishes up to Rz 2.4pm (Ra 0.6pm) Rz max 4.8 Insert: NP-CNGA120408GSWS2 I Component: Pinion gear Cutting Speed 160 m/min -S Feed 0.35 mm/rev S. (0 Depth of Cut :0.15mm > Cutting Mode Dry Cutting 1 BC8110 Is recommended to Improve wear resistance. BCBias Conventional 350 300 0.05 0.10 0.15 Feed f (mm/rev) BCB11B For Continous Cutting Highest wear resistance of the series, suitable for continuous cutting. BCB11B Conventional Insert: NP-DNGA150404FS2 Component Shaft Cutting Speed 160 m/min Feed 0.2 mm/rev Depth of Cut: 0.2 mm Cutting Mode Wet Cutting 05 100 B BC8110 BC8120 & BC81 30 Low Load Conditions Continuous Cutting ug High Light Interrupted Conditions Heavy Interrupted Cutting o Low Frequency of Impact High BCB1BB For Continuous to Medium Interrupted Cutting 1st choice for roughing and pre-finishing BCB13B For Unstable Applications and Heavy Interrupted Cutting Tolerance accuracy held over a high no. of impacts Insert: NP-CNGA120408TA2 Component: Clamp cylinder Cutting Speed: 130m/min Feed: 0.08mm/rev Depth of Cut: 0.5mm Cutting Mode: Wet Cutting BCBIBO Conventional Insert: NP-CNGA120408TH2 Component Gear Cutting Speed 130m/min Feed: 0.08mm/rev Depth of Cut: 0.15mm Cutting Mode Wet Cutting BCB130 Conventional Mitsubishi Materials 201 CBN & PCD TURNING INSERTS
