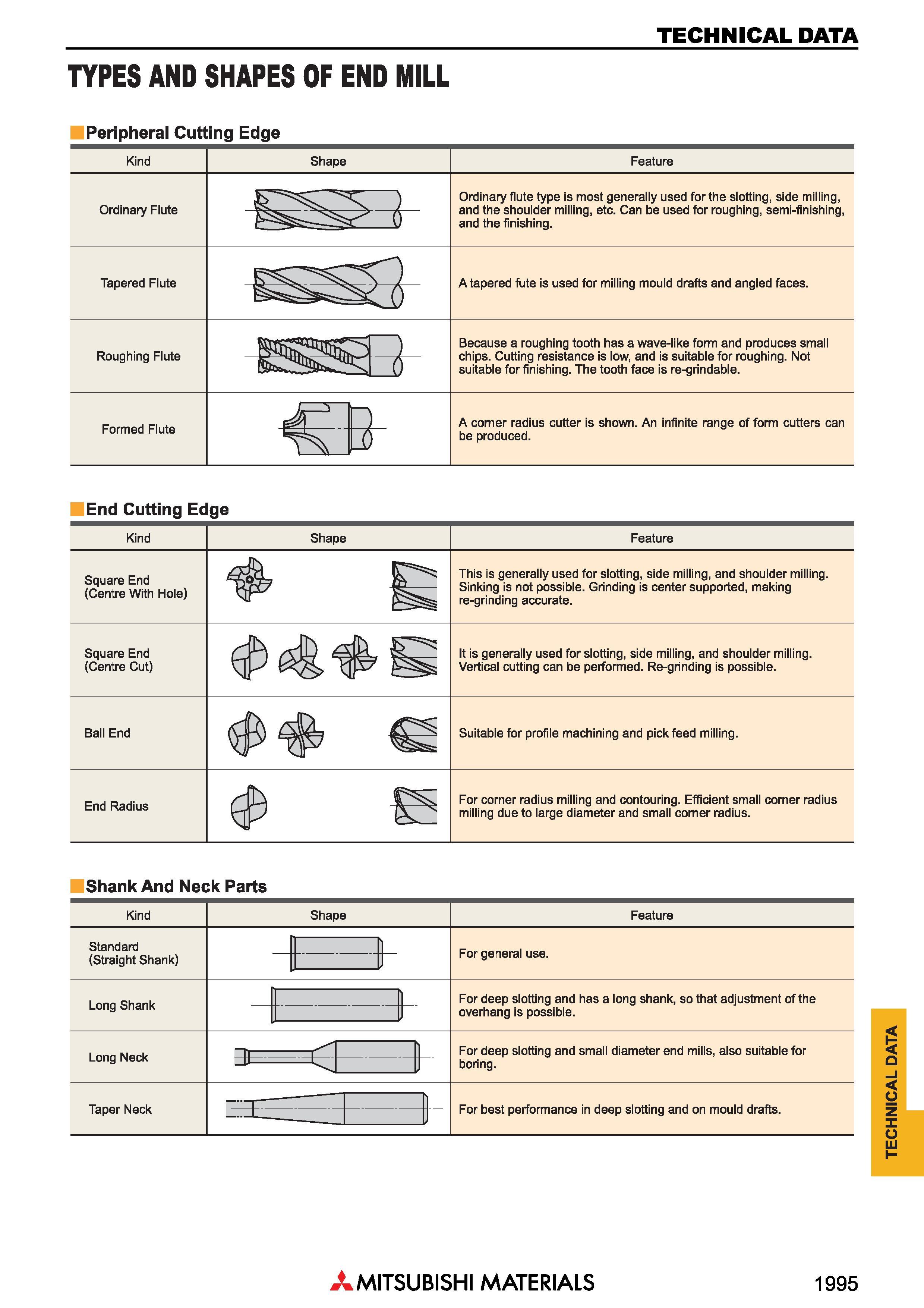

Краткий справочник по резанию материалов на металлообрабатывающих станках TECHNICAL DATA _ TYPES AND SHAPES OF END MILL Peripheral Cutting Edge Kind Shape Feature Ordinary Flute Ordinary flute type is most generally used for the slotting, side milling, and the shoulder milling, etc. Can be used for roughing, semi-finishing, and the finishing. Tapered Flute A tapered fute is used for milling mould drafts and angled faces. Roughing Flute Because a roughing tooth has a wave-like form and produces small chips. Cutting resistance is low, and is suitable for roughing. Not suitable for finishing. The tooth face is re-grindable. Formed Flute -J- A comer radius cutter is shown. An infinite range of form cutters can be produced. End Cutting Edge Kind Shape Feature Square End (Centre With Hole) £ This is generally used for slotting, side milling, and shoulder milling. Sinking is not possible. Grinding is center supported, making re-grinding accurate. Square End (Centre Cut) It is generally used for slotting, side milling, and shoulder milling. Vertical cutting can be performed. Re-grinding is possible. Ball End Suitable for profile machining and pick feed milling. End Radius For corner radius milling and contouring. Efficient small corner radius milling due to large diameter and small comer radius. Shank And Neck Parts Kind Shape Feature Standard (Straight Shank) For general use. Long Shank For deep slotting and has a long shank, so that adjustment of the overhang is possible. Long Neck 3: For deep slotting and small diameter end mills, also suitable for boring. Taper Neck For best performance in deep slotting and on mould drafts. Mitsubishi Materials 1995 TECHNICAL DATA
