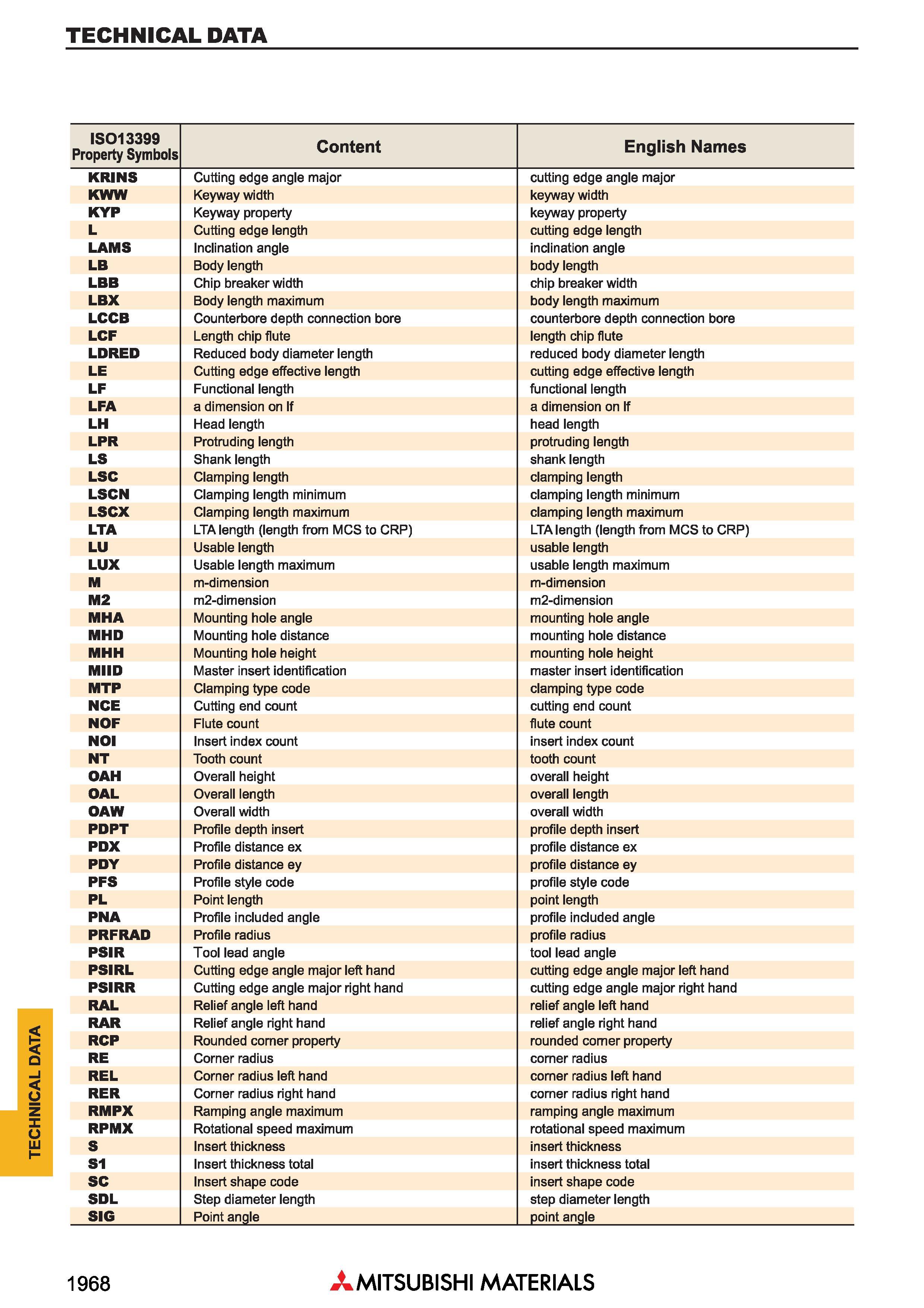

Краткий справочник по резанию материалов на металлообрабатывающих станках TECHNICAL DATA _ TECHNIC ISO 13399 Property Symbols Content English Names KRINS Cutting edge angle major cutting edge angle major KWW Keyway width keyway width KYP Keyway property keyway property L Cutting edge length cutting edge length LAMS Inclination angle inclination angle LB Body length body length LBB Chip breaker width chip breaker width LBX Body length maximum body length maximum LCCB Counterbore depth connection bore counterbore depth connection bore LCF Length chip flute length chip flute LDRED Reduced body diameter length reduced body diameter length LE Cutting edge effective length cutting edge effective length LF Functional length functional length LFA a dimension on If a dimension on If LH Head length head length LPR Protruding length protruding length LS Shank length shank length LSC Clamping length clamping length LSCN Clamping length minimum clamping length minimum LSCX Clamping length maximum clamping length maximum LTA LTA length (length from MCS to CRP) LTA length (length from MCS to CRP) LU Usable length usable length LUX Usable length maximum usable length maximum M m-dimension m-dimension M2 m2-dimension m2-dimension MHA Mounting hole angle mounting hole angle MHD Mounting hole distance mounting hole distance MHH Mounting hole height mounting hole height MUD Master insert identification master insert identification MTP Clamping type code clamping type code NCE Cutting end count cutting end count HOF Flute count flute count HOI Insert index count insert index count HT Tooth count tooth count OAH Overall height overall height OAL Overall length overall length OAW Overall width overall width PDPT Profile depth insert profile depth insert PDX Profile distance ex profile distance ex PDY Profile distance ey profile distance ey PFS Profile style code profile style code PL Point length point length PHA Profile included angle profile included angle PRFRAD Profile radius profile radius PSIR Tool lead angle tool lead angle PSIRL Cutting edge angle major left hand cutting edge angle major left hand PSIRR Cutting edge angle major right hand cutting edge angle major right hand RAL Relief angle left hand relief angle left hand RAR Relief angle right hand relief angle right hand RCP Rounded corner property rounded comer property RE Corner radius corner radius REL Corner radius left hand corner radius left hand RER Corner radius right hand corner radius right hand RMPX Ramping angle maximum ramping angle maximum RPMX Rotational speed maximum rotational speed maximum S Insert thickness insert thickness S1 Insert thickness total insert thickness total SC Insert shape code insert shape code SDL Step diameter length step diameter length SIG Point angle point angle 1968 Mitsubishi Materials
