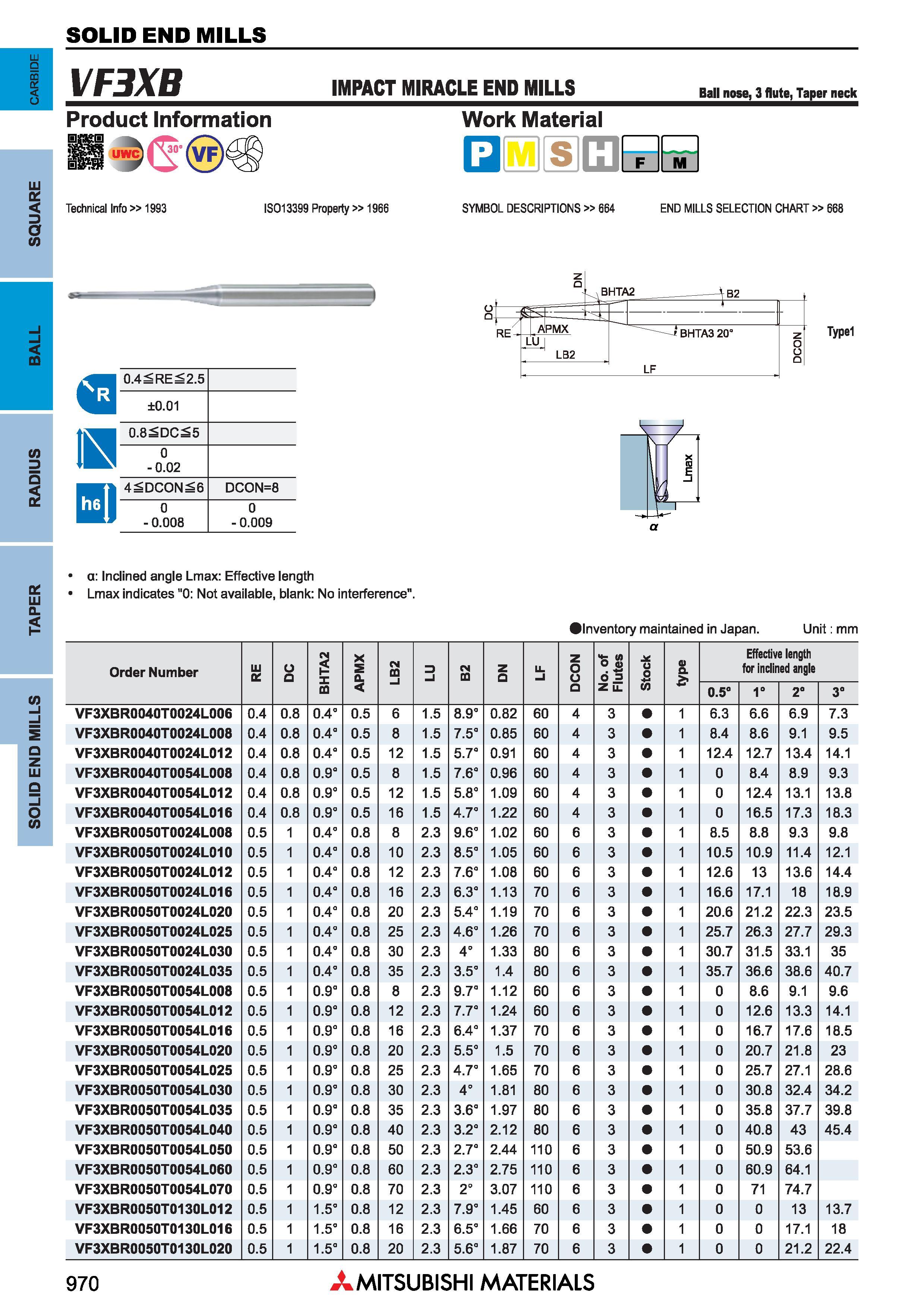

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ I/F3XB IMPACT MIRACLE END MILLS Ball nose, 3 flute, Taper neck Product Information Bjraeii uwc 30’ VF Обрабатываемые материалы Work Material no F M Technical Info 1993 ISO 13399 Property 1966 SYMBOL DESCRIPTIONS 664 END MILLS SELECTION CHART 668 0.4 RE 2.5 ±0.01 0.8 DC 5 . o.02 4 DCON 6 DCON=8 HI - 0.008 0 - 0.009 Typel a: Inclined angle Lmax: Effective length Lmax indicates "0: Not available, blank: No interference". inventory maintained in Japan. Unit: mm Обозначение Order Number LU oc o O BHTA2 APMX LB2 3 l cv m z Q u. i DCON No. of Flutes Stock type Effective length for inclined angle 0.5° 1° 2° 3° VF3XBR0040T0024L006 0.4 0.8 0.4° 0.5 6 1.5 8.9° 0.82 60 4 3 1 6.3 6.6 6.9 7.3 VF3XBR0040T0024L008 0.4 0.8 0.4° 0.5 8 1.5 7.5° 0.85 60 4 3 1 8.4 8.6 9.1 9.5 VF3XBR0040T0024L012 0.4 0.8 0.4° 0.5 12 1.5 5.7° 0.91 60 4 3 1 12.4 12.7 13.4 14.1 VF3XBR0040T0054L008 0.4 0.8 0.9° 0.5 8 1.5 7.6° 0.96 60 4 3 1 0 8.4 8.9 9.3 VF3XBR0040T0054L012 0.4 0.8 0.9° 0.5 12 1.5 5.8° 1.09 60 4 3 1 0 12.4 13.1 13.8 VF3XBR0040T0054L016 0.4 0.8 0.9° 0.5 16 1.5 4.7° 1.22 60 4 3 1 0 16.5 17.3 18.3 VF3XBR0050T0024L008 0.5 1 0.4° 0.8 8 2.3 9.6° 1.02 60 6 3 1 8.5 8.8 9.3 9.8 VF3XBR0050T0024L010 0.5 1 0.4° 0.8 10 2.3 00 01 o 1.05 60 6 3 1 10.5 10.9 11.4 12.1 VF3XBR0050T0024L012 0.5 1 0.4° 0.8 12 2.3 7.6° 1.08 60 6 3 1 12.6 13 13.6 14.4 VF3XBR0050T0024L016 0.5 1 0.4° 0.8 16 2.3 6.3° 1.13 70 6 3 1 16.6 17.1 18 18.9 VF3XBR0050T0024L020 0.5 1 0.4° 0.8 20 2.3 5.4° 1.19 70 6 3 1 20.6 21.2 22.3 23.5 VF3XBR0050T0024L025 0.5 1 0.4° 0.8 25 2.3 4.6° 1.26 70 6 3 1 25.7 26.3 27.7 29.3 VF3XBR0050T0024L030 0.5 1 0.4° 0.8 30 2.3 4° 1.33 80 6 3 1 30.7 31.5 33.1 35 VF3XBR0050T0024L035 0.5 1 0.4° 0.8 35 2.3 3.5° 1.4 80 6 3 1 35.7 36.6 38.6 40.7 VF3XBR0050T0054L008 0.5 1 0.9° 0.8 8 2.3 9.7° 1.12 60 6 3 1 0 8.6 9.1 9.6 VF3XBR0050T0054L012 0.5 1 0.9° 0.8 12 2.3 7.7° 1.24 60 6 3 1 0 12.6 13.3 14.1 VF3XBR0050T0054L016 0.5 1 0.9° 0.8 16 2.3 6.4° 1.37 70 6 3 1 0 16.7 17.6 18.5 VF3XBR0050T0054L020 0.5 1 0.9° 0.8 20 2.3 5.5° 1.5 70 6 3 1 0 20.7 21.8 23 VF3XBR0050T0054L025 0.5 1 0.9° 0.8 25 2.3 4.7° 1.65 70 6 3 1 0 25.7 27.1 28.6 VF3XBR0050T0054L030 0.5 1 0.9° 0.8 30 2.3 4° 1.81 80 6 3 1 0 30.8 32.4 34.2 VF3XBR0050T0054L035 0.5 1 0.9° 0.8 35 2.3 3.6° 1.97 80 6 3 1 0 35.8 37.7 39.8 VF3XBR0050T0054L040 0.5 1 0.9° 0.8 40 2.3 3.2° 2.12 80 6 3 1 0 40.8 43 45.4 VF3XBR0050T0054L050 0.5 1 0.9° 0.8 50 2.3 2.7° 2.44 110 6 3 1 0 50.9 53.6 VF3XBR0050T0054L060 0.5 1 0.9° 0.8 60 2.3 2.3° 2.75 110 6 3 1 0 60.9 64.1 VF3XBR0050T0054L070 0.5 1 0.9° 0.8 70 2.3 2° 3.07 110 6 3 1 0 71 74.7 VF3XBR0050T0130L012 0.5 1 1.5° 0.8 12 2.3 7.9° 1.45 60 6 3 1 0 0 13 13.7 VF3XBR0050T0130L016 0.5 1 1.5° 0.8 16 2.3 6.5° 1.66 70 6 3 1 0 0 17.1 18 VF3XBR0050T0130L020 0.5 1 1.5° 0.8 20 2.3 5.6° 1.87 70 6 3 1 0 0 21.2 22.4 970 Mitsubishi Materials
