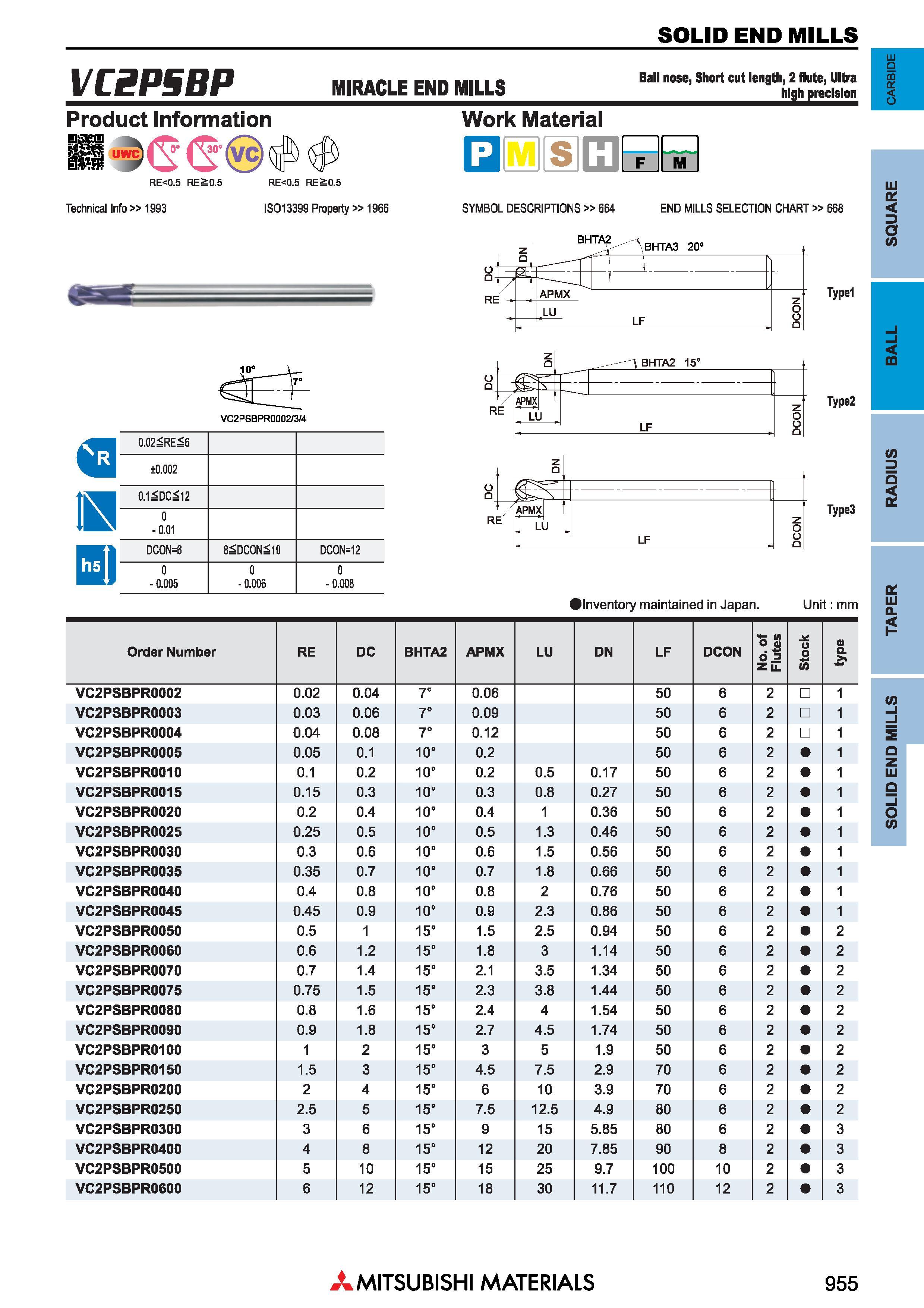

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ VCgPSBP MIRACLE END MILLS Ball nose, Short cut length, 2 flute, Ultra high precision Product Information RE<0.5 RE a 0.5 Technical Info 1993 RE<0.5 RE60.5 ISO 13399 Properly 1966 Обрабатываемые материалы Work Material no F M SYMBOL DESCRIPTIONS 664 BHTA2 8 RE APMX LU END MILLS SELECTION CHART 668 \ BHTA3 20° i LF Typel 10 V 7’ VC2PSBPR0002/3/4 0.02 RE 6 ±0.002 0.1 DC 12 o j - 0.01 1 DCON=6 8 DCON 10 DC0N=12 o 9 -0.005 0 0.006 0 -0.008 Q BHTA2 15° ) rH J I / RE APMX LL z o LF o Q w E' APMX LI J z O LF O Q Type2 Type3 Inventory maintained in Japan. Unit: mm Обозначение Order Number RE DC BHTA2 APMX LU DN LF DCON No. of 1 Flutes O o in type VC2PSBPR0002 0.02 0.04 7° 0.06 50 6 2 1 VC2PSBPR0003 0.03 0.06 7° 0.09 50 6 2 1 VC2PSBPR0004 0.04 0.08 7° 0.12 50 6 2 1 VC2PSBPR0005 0.05 0.1 10° 0.2 50 6 2 1 VC2PSBPR0010 0.1 0.2 10° 0.2 0.5 0.17 50 6 2 1 VC2PSBPR0015 0.15 0.3 10° 0.3 0.8 0.27 50 6 2 1 VC2PSBPR0020 0.2 0.4 10° 0.4 1 0.36 50 6 2 1 VC2PSBPR0025 0.25 0.5 10° 0.5 1.3 0.46 50 6 2 1 VC2PSBPR0030 0.3 0.6 10° 0.6 1.5 0.56 50 6 2 1 VC2PSBPR0035 0.35 0.7 10° 0.7 1.8 0.66 50 6 2 1 VC2PSBPR0040 0.4 0.8 10° 0.8 2 0.76 50 6 2 1 VC2PSBPR0045 0.45 0.9 10° 0.9 2.3 0.86 50 6 2 1 VC2PSBPR0050 0.5 1 15° 1.5 2.5 0.94 50 6 2 2 VC2PSBPR0060 0.6 1.2 15° 1.8 3 1.14 50 6 2 2 VC2PSBPR0070 0.7 1.4 15° 2.1 3.5 1.34 50 6 2 2 VC2PSBPR0075 0.75 1.5 15° 2.3 3.8 1.44 50 6 2 2 VC2PSBPR0080 0.8 1.6 15° 2.4 4 1.54 50 6 2 2 VC2PSBPR0090 0.9 1.8 15° 2.7 4.5 1.74 50 6 2 2 VC2PSBPR0100 1 2 15° 3 5 1.9 50 6 2 2 VC2PSBPR0150 1.5 3 15° 4.5 7.5 2.9 70 6 2 2 VC2PSBPR0200 2 4 15° 6 10 3.9 70 6 2 2 VC2PSBPR0250 2.5 5 15° 7.5 12.5 4.9 80 6 2 2 VC2PSBPR0300 3 6 15° 9 15 5.85 80 6 2 3 VC2PSBPR0400 4 8 15° 12 20 7.85 90 8 2 3 VC2PSBPR0500 5 10 15° 15 25 9.7 100 10 2 3 VC2PSBPR0600 6 12 15° 18 30 11.7 110 12 2 3 Mitsubishi Materials 955 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
