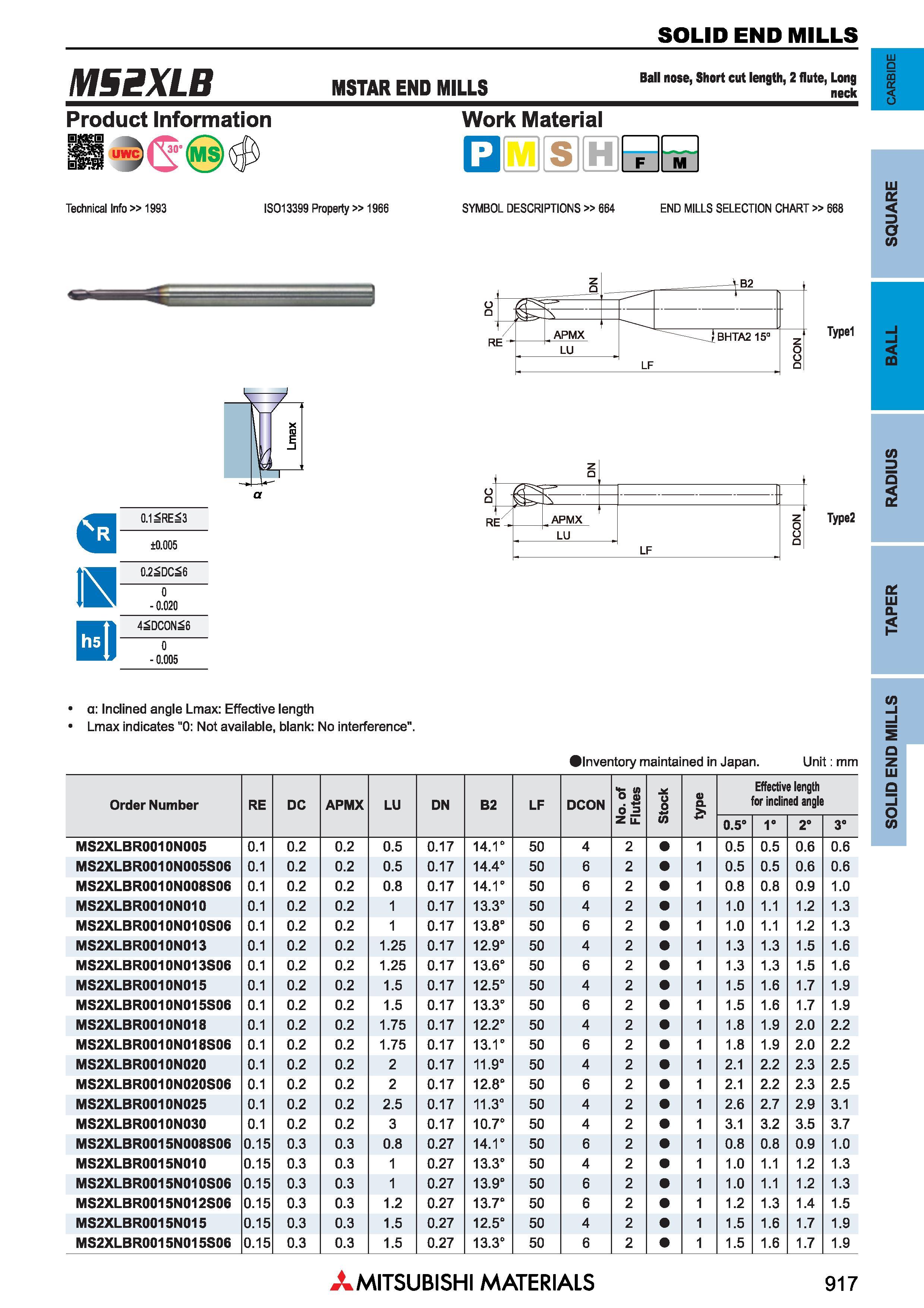

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ MSZXLB MSTAR END MILLS Ball nose, Short cut length, 2 flute, Long neck Product Information uwc 30’ IS Обрабатываемые материалы Work Material USSEi M Technical Info 1993 ISO 13399 Property 1966 SYMBOL DESCRIPTIONS 664 END MILLS SELECTION CHART f 0.1 RE 3 ±0.005 (SI m 0.2 DCS6 0 -0.020 0 -0.005 4 DCON 6 Typel Type2 a: Inclined angle Lmax: Effective length Lmax indicates "0: Not available, blank: No interference". lnventory maintained in Japan. Unit: mm Обозначение Order Number RE DC APMX LU DN B2 LF DCON No. of Flutes Stock type Effective length for inclined angle 0.5° 1° 2° 3° MS2XLBR0010N005 0.1 0.2 0.2 0.5 0.17 14.1° 50 4 2 1 0.5 0.5 0.6 0.6 MS2XLBR0010N005S06 0.1 0.2 0.2 0.5 0.17 14.4° 50 6 2 1 0.5 0.5 0.6 0.6 MS2XLBR0010N008S06 0.1 0.2 0.2 0.8 0.17 14.1° 50 6 2 1 0.8 0.8 0.9 1.0 MS2XLBR0010N010 0.1 0.2 0.2 1 0.17 13.3° 50 4 2 1 1.0 1.1 1.2 1.3 MS2XLBR0010N010S06 0.1 0.2 0.2 1 0.17 13.8° 50 6 2 1 1.0 1.1 1.2 1.3 MS2XLBR0010N013 0.1 0.2 0.2 1.25 0.17 12.9° 50 4 2 1 1.3 1.3 1.5 1.6 MS2XLBR0010N013S06 0.1 0.2 0.2 1.25 0.17 13.6° 50 6 2 1 1.3 1.3 1.5 1.6 MS2XLBR0010N015 0.1 0.2 0.2 1.5 0.17 12.5° 50 4 2 1 1.5 1.6 1.7 1.9 MS2XLBR0010N015S06 0.1 0.2 0.2 1.5 0.17 13.3° 50 6 2 1 1.5 1.6 1.7 1.9 MS2XLBR0010N018 0.1 0.2 0.2 1.75 0.17 12.2° 50 4 2 1 1.8 1.9 2.0 2.2 MS2XLBR0010N018S06 0.1 0.2 0.2 1.75 0.17 13.1° 50 6 2 1 1.8 1.9 2.0 2.2 MS2XLBR0010N020 0.1 0.2 0.2 2 0.17 11.9° 50 4 2 1 2.1 2.2 2.3 2.5 MS2XLBR0010N020S06 0.1 0.2 0.2 2 0.17 12.8° 50 6 2 1 2.1 2.2 2.3 2.5 MS2XLBR0010N025 0.1 0.2 0.2 2.5 0.17 11.3° 50 4 2 1 2.6 2.7 2.9 3.1 MS2XLBR0010N030 0.1 0.2 0.2 3 0.17 10.7° 50 4 2 1 3.1 3.2 3.5 3.7 MS2XLBR0015N008S06 0.15 0.3 0.3 0.8 0.27 14.1° 50 6 2 1 0.8 0.8 0.9 1.0 MS2XLBR0015N010 0.15 0.3 0.3 1 0.27 13.3° 50 4 2 1 1.0 1.1 1.2 1.3 MS2XLBR0015N010S06 0.15 0.3 0.3 1 0.27 13.9° 50 6 2 1 1.0 1.1 1.2 1.3 MS2XLBR0015N012S06 0.15 0.3 0.3 1.2 0.27 13.7° 50 6 2 1 1.2 1.3 1.4 1.5 MS2XLBR0015N015 0.15 0.3 0.3 1.5 0.27 12.5° 50 4 2 1 1.5 1.6 1.7 1.9 MS2XLBR0015N015S06 0.15 0.3 0.3 1.5 0.27 13.3° 50 6 2 1 1.5 1.6 1.7 1.9 Mitsubishi Materials 917 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
