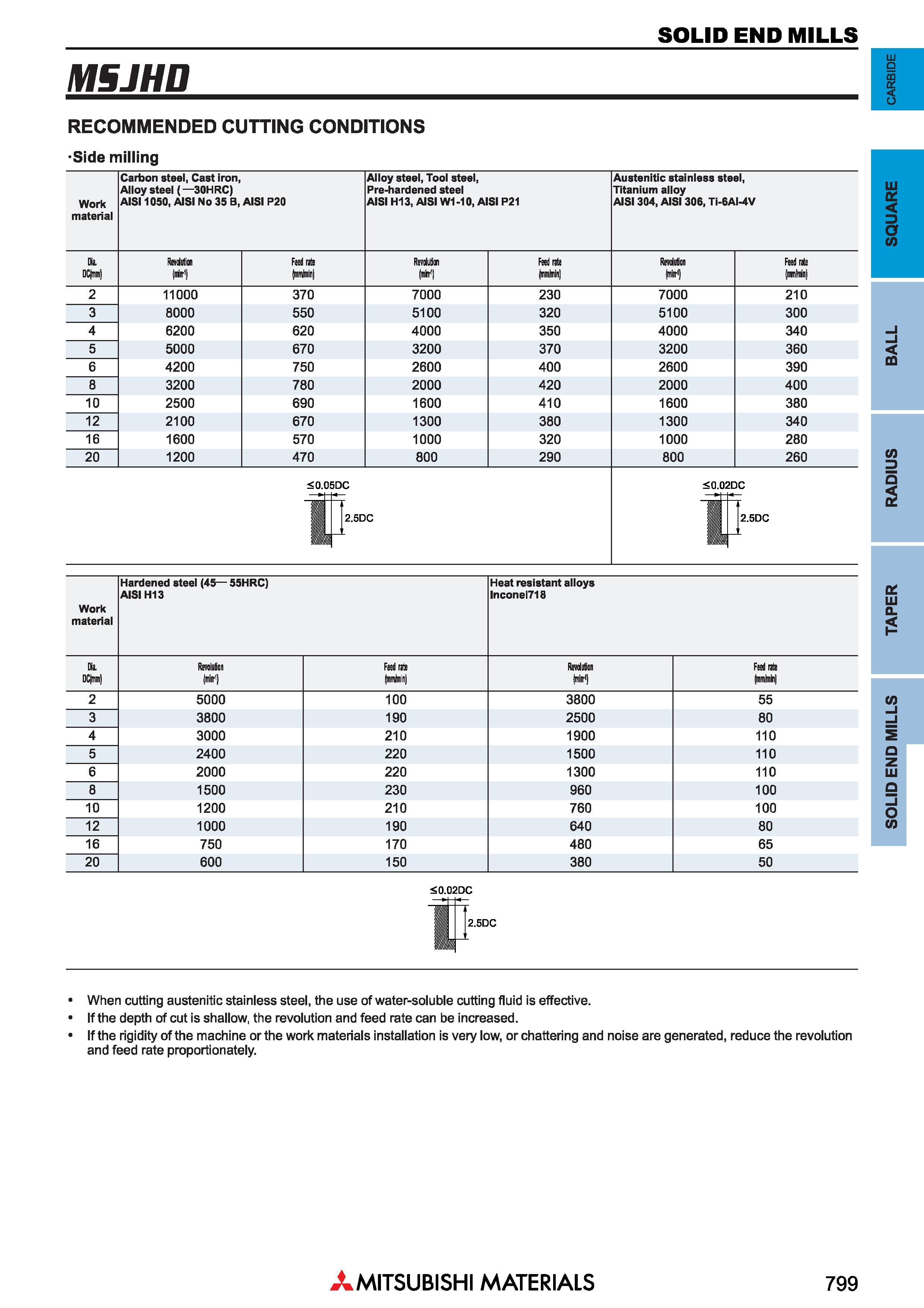

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ MSJHD Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS -Side milling Work material Carbon steel, Cast iron, Alloy steel ( 30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Dia. DC(mm Revolution (niir1 Feed nte (mmlmin) Revolution (mr'l Feed nte (mmlmin Revolution (miir1 Feed nte innMn) 2 11000 370 7000 230 7000 210 3 8000 550 5100 320 5100 300 4 6200 620 4000 350 4000 340 5 5000 670 3200 370 3200 360 6 4200 750 2600 400 2600 390 8 3200 780 2000 420 2000 400 10 2500 690 1600 410 1600 380 12 2100 670 1300 380 1300 340 16 1600 570 1000 320 1000 280 20 1200 470 800 290 800 260 <0.0 5DC VI 1 >DC i 2.5D 2.5DC Work material Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. Revolution Feed nte Revolution Feed nte DCH (miir' tnmlminj fir1 (mmtnh 2 5000 100 3800 55 3 3800 190 2500 80 4 3000 210 1900 110 5 2400 220 1500 110 6 2000 220 1300 110 8 1500 230 960 100 10 1200 210 760 100 12 1000 190 640 80 16 750 170 480 65 20 600 150 380 50 0.02 DC fi- When cutting austenitic stainless steel, the use of water-soluble cutting fluid is effective. If the depth of cut is shallow, the revolution and feed rate can be increased. If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. Mitsubishi Materials 799 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
