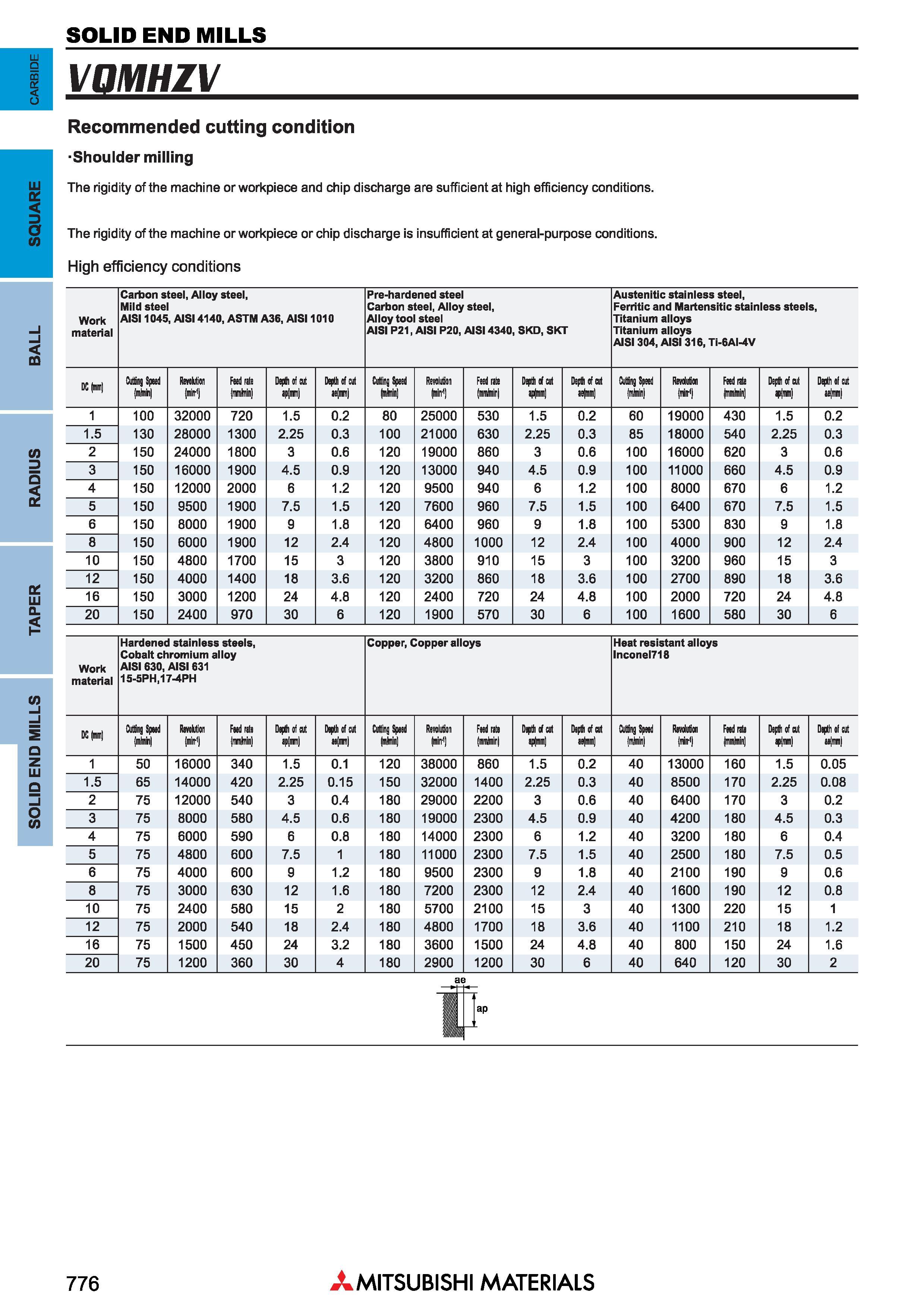

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ ygMHZV Recommended cutting condition Shoulder milling The rigidity of the machine or workpiece and chip discharge are sufficient at high efficiency conditions. The rigidity of the machine or workpiece or chip discharge is insufficient at general-purpose conditions. High efficiency conditions Work material Carbon steel, Alloy steel, Mild steel AIS11045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloys Titanium alloys AISI 304, AISI 316, Ti-6AI-4V DCtynm fting Spud (nih Rewkition miir'l Feed rite imMn) Depth of cut De Mh of cut ie mmj Ciing Speed (niin Revolution (miir'l Feed rate (mm/mir Defitti of cut eptnm Depth of cut ie(ni Cutting Speed Iniminl Revolution jiriiH) Feed nte (mmlmin Depth of cut i Depth ol cut lejrnn) 1 100 32000 720 1.5 0.2 80 25000 530 1.5 0.2 60 19000 430 1.5 0.2 1.5 130 28000 1300 2.25 0.3 100 21000 630 2.25 0.3 85 18000 540 2.25 0.3 2 150 24000 1800 3 0.6 120 19000 860 3 0.6 100 16000 620 3 0.6 3 150 16000 1900 4.5 0.9 120 13000 940 4.5 0.9 100 11000 660 4.5 0.9 4 150 12000 2000 6 1.2 120 9500 940 6 1.2 100 8000 670 6 1.2 5 150 9500 1900 7.5 1.5 120 7600 960 7.5 1.5 100 6400 670 7.5 1.5 6 150 8000 1900 9 1.8 120 6400 960 9 1.8 100 5300 830 9 1.8 8 150 6000 1900 12 2.4 120 4800 1000 12 2.4 100 4000 900 12 2.4 10 150 4800 1700 15 3 120 3800 910 15 3 100 3200 960 15 3 12 150 4000 1400 18 3.6 120 3200 860 18 3.6 100 2700 890 18 3.6 16 150 3000 1200 24 4.8 120 2400 720 24 4.8 100 2000 720 24 4.8 20 150 2400 970 30 6 120 1900 570 30 6 100 1600 580 30 6 Work material Hardened stainless steels, Cobalt chromium alloy AISI 630, AISI 631 15-5PH.17-4PH Copper, Copper alloys Heat resistant alloys lnconel718 DC nm bitting Spud (mimh) Revolution (miir1) Feed nte (mntnin) Depth it cut ipH Depth of cut M nu Cutting Speed (mWn Revolution Quin1) Feed nte (mmfmir) Depth of cut ipfmm) Depth of cut aefmm) Cutting Speed Iniminl Revolution (niir1) Feed nte (mmlmin Depth of cut n Depth ol cut ie(nin) 1 50 16000 340 1.5 0.1 120 38000 860 1.5 0.2 40 13000 160 1.5 0.05 1.5 65 14000 420 2.25 0.15 150 32000 1400 2.25 0.3 40 8500 170 2.25 0.08 2 75 12000 540 3 0.4 180 29000 2200 3 0.6 40 6400 170 3 0.2 3 75 8000 580 4.5 0.6 180 19000 2300 4.5 0.9 40 4200 180 4.5 0.3 4 75 6000 590 6 0.8 180 14000 2300 6 1.2 40 3200 180 6 0.4 5 75 4800 600 7.5 1 180 11000 2300 7.5 1.5 40 2500 180 7.5 0.5 6 75 4000 600 9 1.2 180 9500 2300 9 1.8 40 2100 190 9 0.6 8 75 3000 630 12 1.6 180 7200 2300 12 2.4 40 1600 190 12 0.8 10 75 2400 580 15 2 180 5700 2100 15 3 40 1300 220 15 1 12 75 2000 540 18 2.4 180 4800 1700 18 3.6 40 1100 210 18 1.2 16 75 1500 450 24 3.2 180 3600 1500 24 4.8 40 800 150 24 1.6 20 75 1200 360 30 4 180 2900 1200 30 6 40 640 120 30 2 ae 776 Mitsubishi Materials
