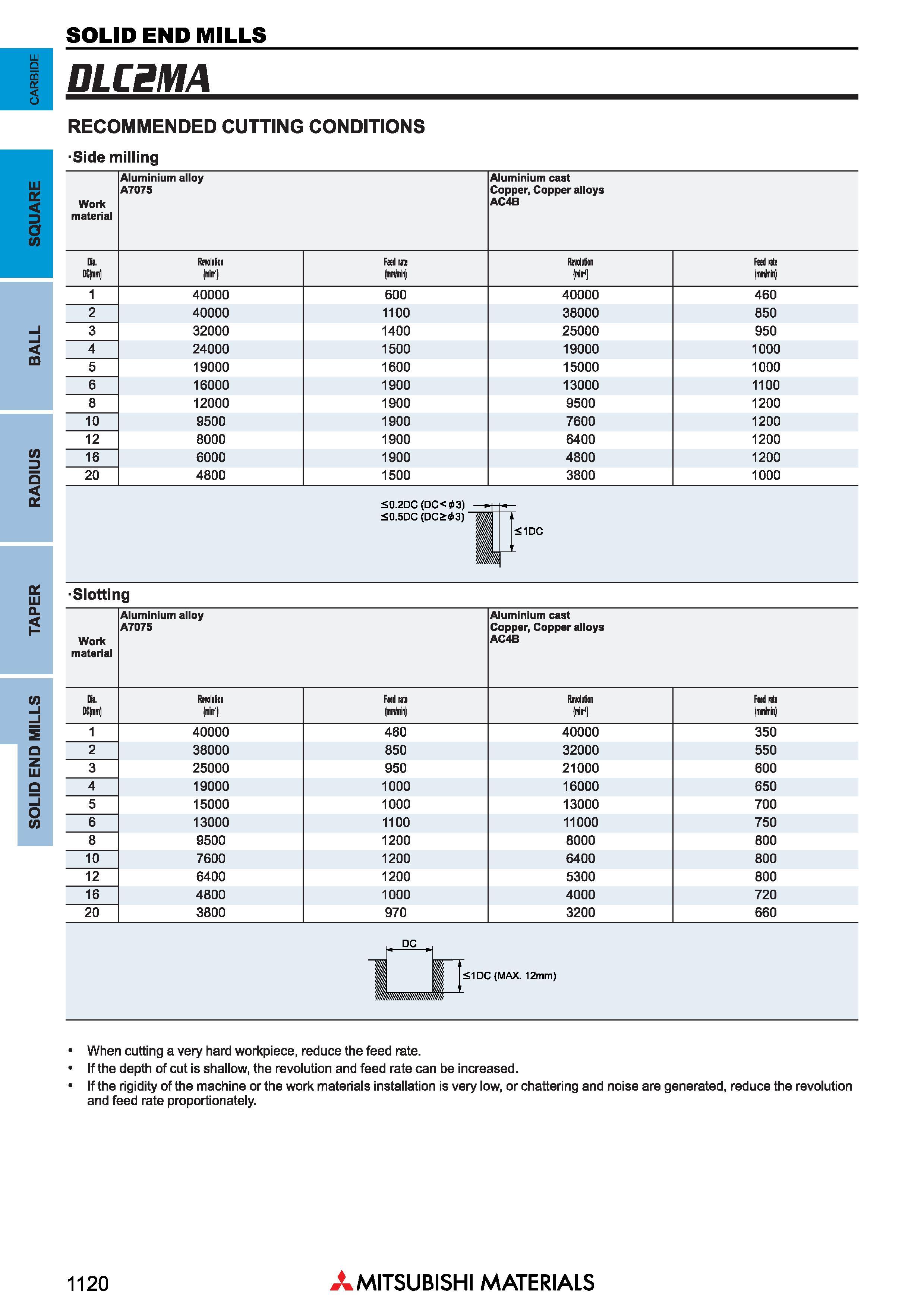

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ DLC2MA Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Side milling Work material Aluminium alloy A7075 Aluminium cast Copper, Copper alloys AC4B Dil. Revolution Feed rate Revdution Feed nte DCfrnm) (miir') (miir1) mnMn 1 40000 600 40000 460 2 40000 1100 38000 850 3 32000 1400 25000 950 4 24000 1500 19000 1000 5 19000 1600 15000 1000 6 16000 1900 13000 1100 8 12000 1900 9500 1200 10 9500 1900 7600 1200 12 8000 1900 6400 1200 16 6000 1900 4800 1200 20 4800 1500 3800 1000 <0.2DC(DC< 3) . 0.5DC (DC£03) M III 1DC Slotting Work material Aluminium alloy A7075 Aluminium cast Copper, Copper alloys AC4B Dil. DCfnim) Revolution (miir'l Feed nte (mmlmi Revolution fiiir1 Feed nil ( Mn 1 40000 460 40000 350 2 38000 850 32000 550 3 25000 950 21000 600 4 19000 1000 16000 650 5 15000 1000 13000 700 6 13000 1100 11000 750 8 9500 1200 8000 800 10 7600 1200 6400 800 12 6400 1200 5300 800 16 4800 1000 4000 720 20 3800 970 3200 660 dc L (MAX. 12mm) i W <1DC I-1 When cutting a very hard workpiece, reduce the feed rate. If the depth of cut is shallow, the revolution and feed rate can be increased. If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. 1120 Mitsubishi Materials
