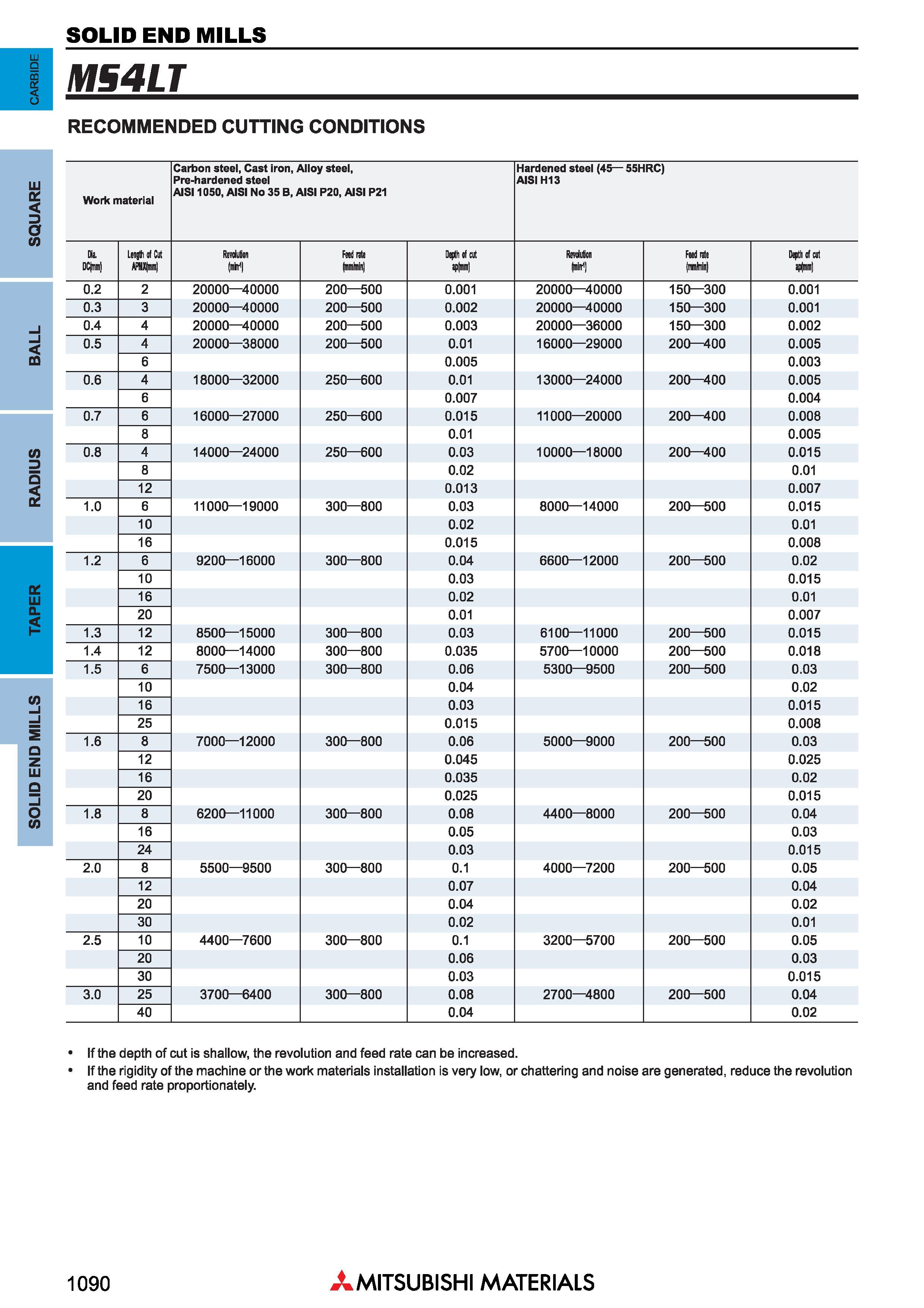

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ MS4LT Рекомендуемые режимы резания при обработке на станке RECOMMENDED CUTTING CONDITIONS Work material Carbon steel, Cast iron, Alloy steel, Pre-hardened steel AIS11050, AISI No 35 B, AISI P20, AISI P21 Hardened steel (45 55HRC) AISI H13 Dii Lengdi of Cut Multan Mntt Dqth of cut ItodihH Feed mt Detitli of cvt Dtynm) APIUqmm) (niir'l (mmlmin) ipM (miir' irniMn) ip(mm 0.2 2 20000 40000 200 500 0.001 20000 40000 150 300 0.001 0.3 3 20000 40000 200 500 0.002 20000 40000 150 300 0.001 0.4 4 20000 40000 200 500 0.003 20000 36000 150 300 0.002 0.5 4 20000 38000 200 500 0.01 16000 29000 200 400 0.005 6 0.005 0.003 0.6 4 18000 32000 250 600 0.01 13000 24000 200 400 0.005 6 0.007 0.004 0.7 6 16000 27000 250 600 0.015 11000 20000 200 400 0.008 8 0.01 0.005 0.8 4 14000 24000 250 600 0.03 10000 18000 200 400 0.015 8 0.02 0.01 12 0.013 0.007 1.0 6 11000 19000 300 800 0.03 8000 14000 200 500 0.015 10 0.02 0.01 16 0.015 0.008 1.2 6 9200 16000 300 800 0.04 6600 12000 200 500 0.02 10 0.03 0.015 16 0.02 0.01 20 0.01 0.007 1.3 12 8500 15000 300 800 0.03 6100 11000 200 500 0.015 1.4 12 8000 14000 300 800 0.035 5700 10000 200 500 0.018 1.5 6 7500 13000 300 800 0.06 5300 9500 200 500 0.03 10 0.04 0.02 16 0.03 0.015 25 0.015 0.008 1.6 8 7000 12000 300 800 0.06 5000 9000 200 500 0.03 12 0.045 0.025 16 0.035 0.02 20 0.025 0.015 1.8 8 6200 11000 300 800 0.08 4400 8000 200 500 0.04 16 0.05 0.03 24 0.03 0.015 2.0 8 5500 9500 300 800 0.1 4000 7200 200 500 0.05 12 0.07 0.04 20 0.04 0.02 30 0.02 0.01 2.5 10 4400 7600 300 800 0.1 3200 5700 200 500 0.05 20 0.06 0.03 30 0.03 0.015 3.0 25 3700 6400 300 800 0.08 2700 4800 200 500 0.04 40 0.04 0.02 If the depth of cut is shallow, the revolution and feed rate can be increased. If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. 1090 Mitsubishi Materials
