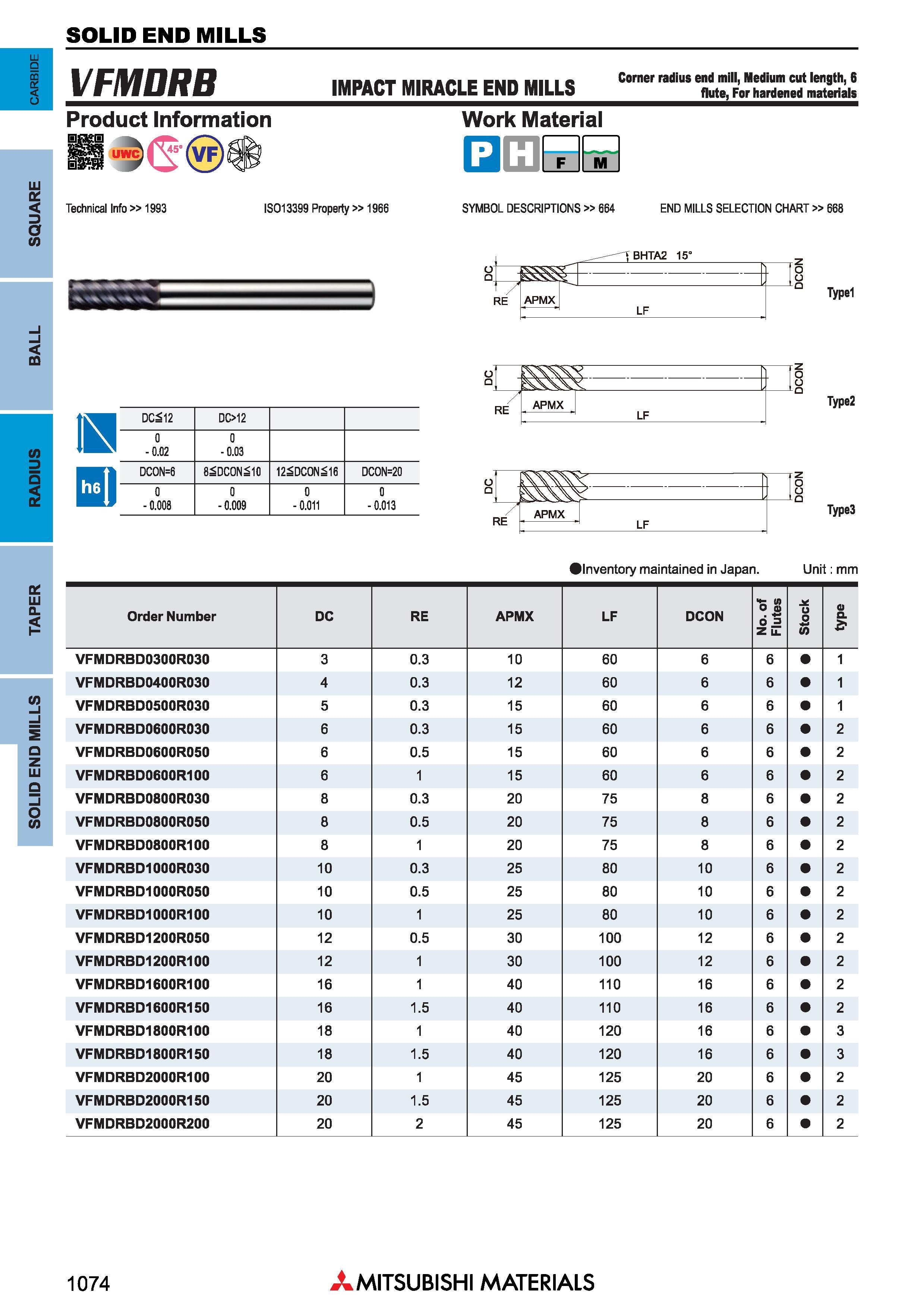

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ I/FMDRB IMPACT MIRACLE END MILLS Corner radius end mill, Medium cut length, 6 flute, For hardened materials Product Information uwc 45’ VF Обрабатываемые материалы Work Material M Technical Info 1993 ISO 13399 Property 1966 SYMBOL DESCRIPTIONS 664 END MILLS SELECTION CHART 668 D DC 12 D012 0 0 -0.02 -0.03 DC0N=6 8 DCON O 12 DCON 16 DCON=20 0 0 0 0 -0.008 -0.009 -0.011 -0.013 o I J \\s\x RE APMX LF RE APMX LF rZ O u IQ o u IQ Type2 Type3 Inventory maintained in Japan. Unit: mm Обозначение Order Number DC RE APMX LF DCON No. of Flutes 1 o 2 Ui type VFMDRBD0300R030 3 0.3 10 60 6 6 1 VFMDRBD0400R030 4 0.3 12 60 6 6 1 VFMDRBD0500R030 5 0.3 15 60 6 6 1 VFMDRBD0600R030 6 0.3 15 60 6 6 2 VFMDRBD0600R050 6 0.5 15 60 6 6 2 VFMDRBD0600R100 6 1 15 60 6 6 2 VFMDRBD0800R030 8 0.3 20 75 8 6 2 VFMDRBD0800R050 8 0.5 20 75 8 6 2 VFMDRBD0800R100 8 1 20 75 8 6 2 VFMDRBD1000R030 10 0.3 25 80 10 6 2 VFMDRBD1000R050 10 0.5 25 80 10 6 2 VFMDRBD1000R100 10 1 25 80 10 6 2 VFMDRBD1200R050 12 0.5 30 100 12 6 2 VFMDRBD1200R100 12 1 30 100 12 6 2 VFMDRBD1600R100 16 1 40 110 16 6 2 VFMDRBD1600R150 16 1.5 40 110 16 6 2 VFMDRBD1800R100 18 1 40 120 16 6 3 VFMDRBD1800R150 18 1.5 40 120 16 6 3 VFMDRBD2000R100 20 1 45 125 20 6 2 VFMDRBD2000R150 20 1.5 45 125 20 6 2 VFMDRBD2000R200 20 2 45 125 20 6 2 1074 Mitsubishi Materials
