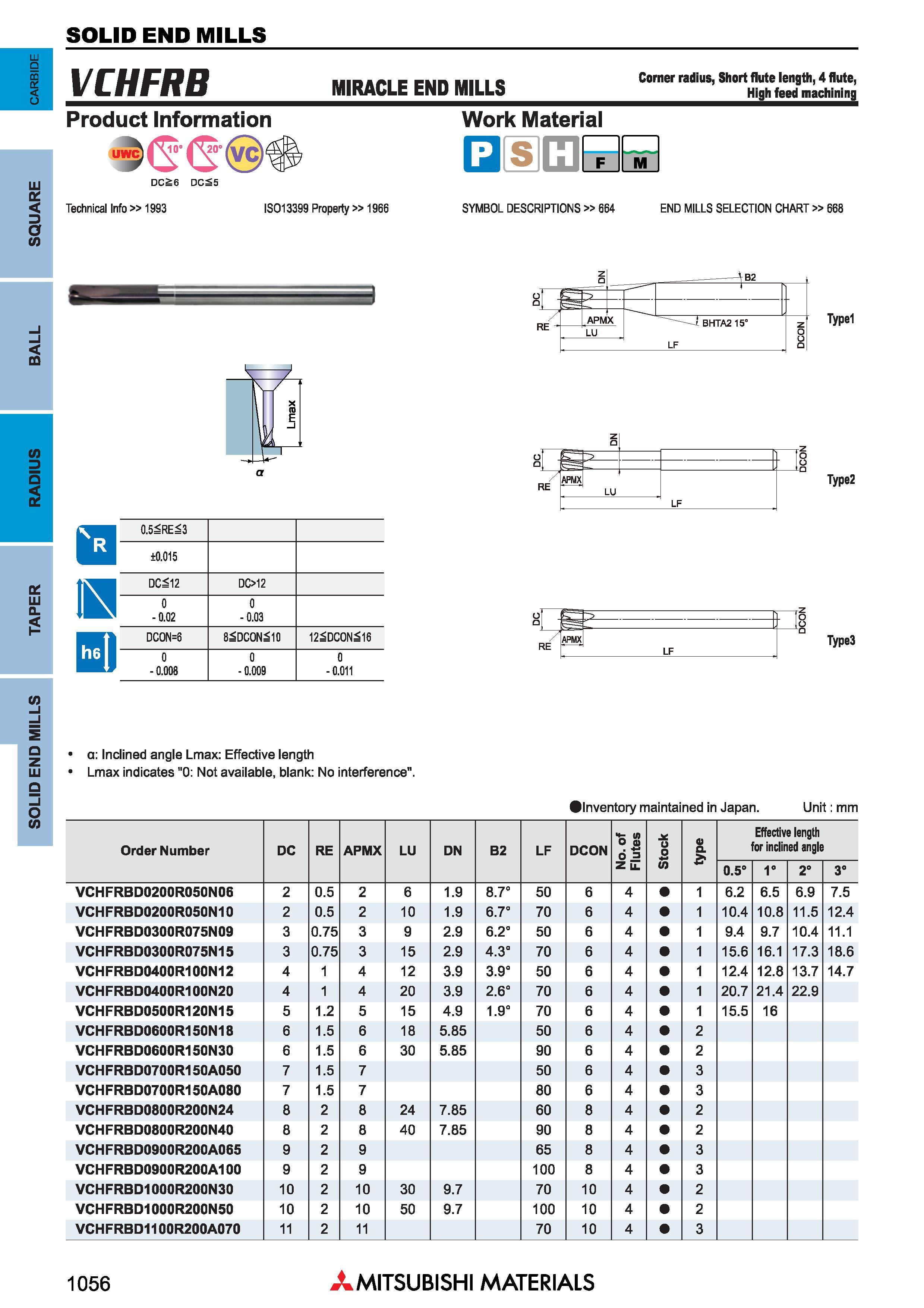

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ VCHFRB MIRACLE END MILLS Corner radius, Short flute length, 4 flute, High feed machining Product Information UWCJ DCS6 0CS5 Technical Info 1993 ISO 13399 Property 1966 Обрабатываемые материалы Work Material CH F M SYMBOL DESCRIPTIONS 664 END MILLS SELECTION CHART f 0.5 RE 3 +0.015 DC 12 DC>12 o - 0.02 0 -0.03 DCON=6 8 DCON 10 12 DCON 16 o -0.008 0 - 0.009 0 -0.011 B2 APMX LU Typel 1 APMX Kb LU LF Type2 RE APMX LF Type3 a: Inclined angle Lmax: Effective length Lmax Indicates "0: Not available, blank: No Interference". inventory maintained in Japan. Unit: mm Обозначение Order Number DC RE APMX LU DN B2 LF DCON No. of Flutes Stock type Effective length for inclined angle 0.5° 1° 2° 3° VCHFRBD0200R050N06 2 0.5 2 6 1.9 OO “ >J o 50 6 4 1 6.2 6.5 6.9 7.5 VCHFRBD0200R050N10 2 0.5 2 10 1.9 6.7° 70 6 4 1 10.4 10.8 11.5 12.4 VCHFRBD0300R075N09 3 0.75 3 9 2.9 6.2° 50 6 4 1 9.4 9.7 10.4 11.1 VCHFRBD0300R075N15 3 0.75 3 15 2.9 4.3° 70 6 4 1 15.6 16.1 17.3 18.6 VCHFRBD0400R100N12 4 1 4 12 3.9 3.9° 50 6 4 1 12.4 12.8 13.7 14.7 VCHFRBD0400R100N20 4 1 4 20 3.9 2.6° 70 6 4 1 20.7 21.4 22.9 VCHFRBD0500R120N15 5 1.2 5 15 4.9 1.9° 70 6 4 1 15.5 16 VCHFRBD0600R150N18 6 1.5 6 18 5.85 50 6 4 2 VCHFRBD0600R150N30 6 1.5 6 30 5.85 90 6 4 2 VCHFRBD0700R150A050 7 1.5 7 50 6 4 3 VCHFRBD0700R150A080 7 1.5 7 80 6 4 3 VCHFRBD0800R200N24 8 2 8 24 7.85 60 8 4 2 VCHFRBD0800R200N40 8 2 8 40 7.85 90 8 4 2 VCHFRBD0900R200A065 9 2 9 65 8 4 3 VCHFRBD0900R200A100 9 2 9 100 8 4 3 VCHFRBD1000R200N30 10 2 10 30 9.7 70 10 4 2 VCHFRBD1000R200N50 10 2 10 50 9.7 100 10 4 2 VCHFRBD1100R200A070 11 2 11 70 10 4 3 1056 Mitsubishi Materials
