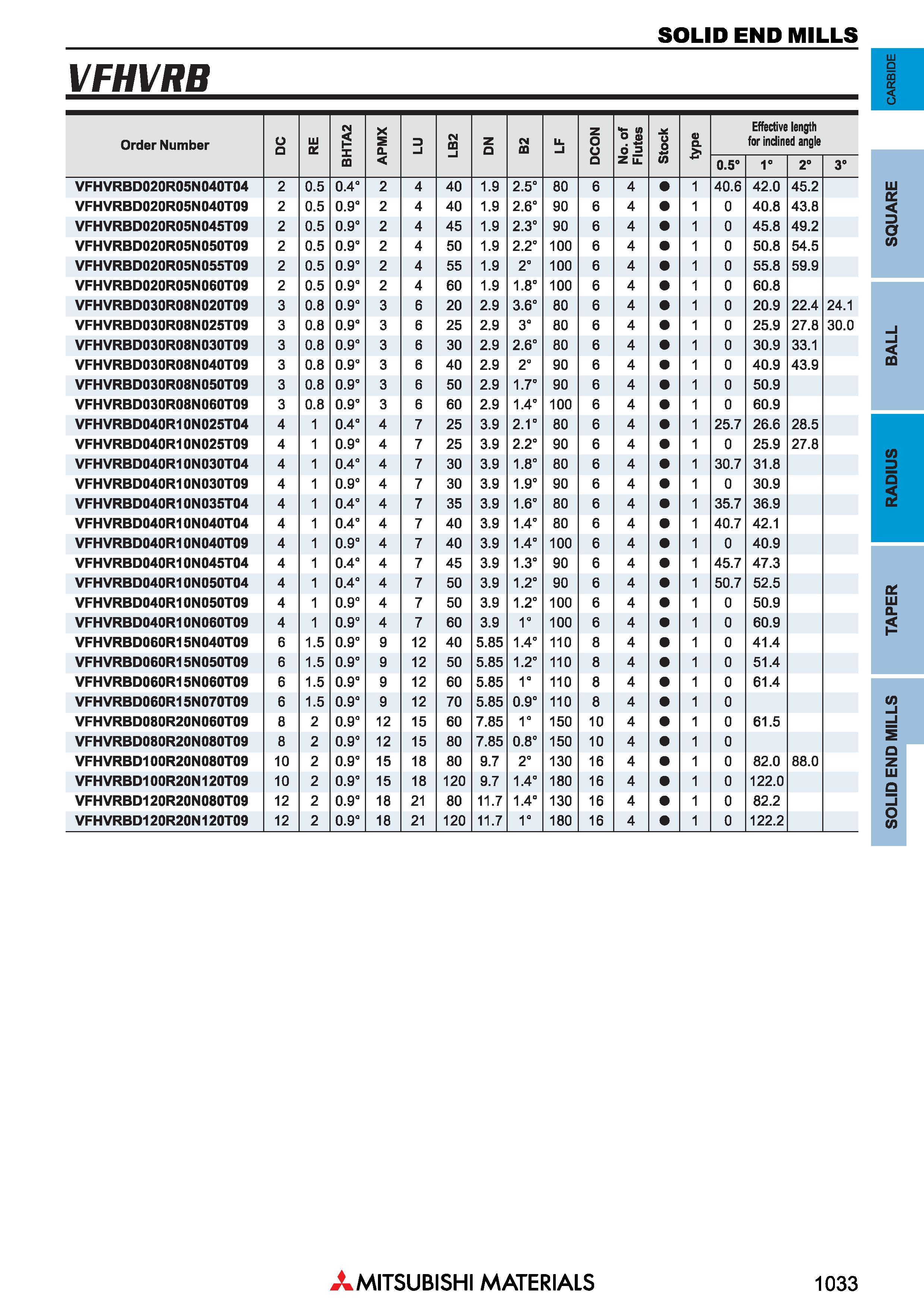

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ VFHVRB Обозначение Order Number O UJ O' 8 z CO XWdV D l Ol ffi i z a CM m u. i z o No. of Flutes JC + in type Effective length for inclined angle 0.5° 1° 2° 3° VFHVRBD020R05N040T04 2 0.5 0.4° 2 4 40 1.9 2.5° 80 6 4 1 40.6 42.0 45.2 VFHVRBD020R05N040T09 2 0.5 0.9° 2 4 40 1.9 2.6° 90 6 4 1 0 40.8 43.8 VFHVRBD020R05N045T09 2 0.5 0.9° 2 4 45 1.9 2.3° 90 6 4 1 0 45.8 49.2 VFHVRBD020R05N050T09 2 0.5 0.9° 2 4 50 1.9 2.2° 100 6 4 1 0 50.8 54.5 VFHVRBD020R05N055T09 2 0.5 0.9° 2 4 55 1.9 2° 100 6 4 1 0 55.8 59.9 VFHVRBD020R05N060T09 2 0.5 0.9° 2 4 60 1.9 1.8° 100 6 4 1 0 60.8 VFHVRBD030R08N020T09 3 0.8 0.9° 3 6 20 2.9 3.6° 80 6 4 1 0 20.9 22.4 24.1 VFHVRBD030R08N025T09 3 0.8 0.9° 3 6 25 2.9 3° 80 6 4 1 0 25.9 27.8 30.0 VFHVRBD030R08N030T09 3 0.8 0.9° 3 6 30 2.9 2.6° 80 6 4 1 0 30.9 33.1 VFHVRBD030R08N040T09 3 0.8 0.9° 3 6 40 2.9 2° 90 6 4 1 0 40.9 43.9 VFHVRBD030R08N050T09 3 0.8 0.9° 3 6 50 2.9 1.7° 90 6 4 1 0 50.9 VFHVRBD030R08N060T09 3 0.8 0.9° 3 6 60 2.9 1.4° 100 6 4 1 0 60.9 VFHVRBD040R10N025T04 4 1 0.4° 4 7 25 3.9 2.1° 80 6 4 1 25.7 26.6 28.5 VFHVRBD040R10N025T09 4 1 0.9° 4 7 25 3.9 2.2° 90 6 4 1 0 25.9 27.8 VFHVRBD040R10N030T04 4 1 0.4° 4 7 30 3.9 1.8° 80 6 4 1 30.7 31.8 VFHVRBD040R10N030T09 4 1 0.9° 4 7 30 3.9 1.9° 90 6 4 1 0 30.9 VFHVRBD040R10N035T04 4 1 0.4° 4 7 35 3.9 1.6° 80 6 4 1 35.7 36.9 VFHVRBD040R10N040T04 4 1 0.4° 4 7 40 3.9 1.4° 80 6 4 1 40.7 42.1 VFHVRBD040R10N040T09 4 1 0.9° 4 7 40 3.9 1.4° 100 6 4 1 0 40.9 VFHVRBD040R10N045T04 4 1 0.4° 4 7 45 3.9 1.3° 90 6 4 1 45.7 47.3 VFHVRBD040R10N050T04 4 1 0.4° 4 7 50 3.9 1.2° 90 6 4 1 50.7 52.5 VFHVRBD040R10N050T09 4 1 0.9° 4 7 50 3.9 1.2° 100 6 4 1 0 50.9 VFHVRBD040R10N060T09 4 1 0.9° 4 7 60 3.9 1° 100 6 4 1 0 60.9 VFHVRBD060R15N040T09 6 1.5 0.9° 9 12 40 5.85 1.4° 110 8 4 1 0 41.4 VFHVRBD060R15N050T09 6 1.5 0.9° 9 12 50 5.85 1.2° 110 8 4 1 0 51.4 VFHVRBD060R15N060T09 6 1.5 0.9° 9 12 60 5.85 1° 110 8 4 1 0 61.4 VFHVRBD060R15N070T09 6 1.5 0.9° 9 12 70 5.85 0.9° 110 8 4 1 0 VFHVRBD080R20N060T09 8 2 0.9° 12 15 60 7.85 1° 150 10 4 1 0 61.5 VFHVRBD080R20N080T09 8 2 0.9° 12 15 80 7.85 0.8° 150 10 4 1 0 VFHVRBD100R20N080T09 10 2 0.9° 15 18 80 9.7 2° 130 16 4 1 0 82.0 88.0 VFHVRBD100R20N120T09 10 2 0.9° 15 18 120 9.7 1.4° 180 16 4 1 0 122.0 VFHVRBD120R20N080T09 12 2 o CD a 18 21 80 11.7 1.4° 130 16 4 1 0 82.2 VFHVRBD120R20N120T09 12 2 0.9° 18 21 120 11.7 1° 180 16 4 1 0 122.2 Mitsubishi Materials 1033 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
