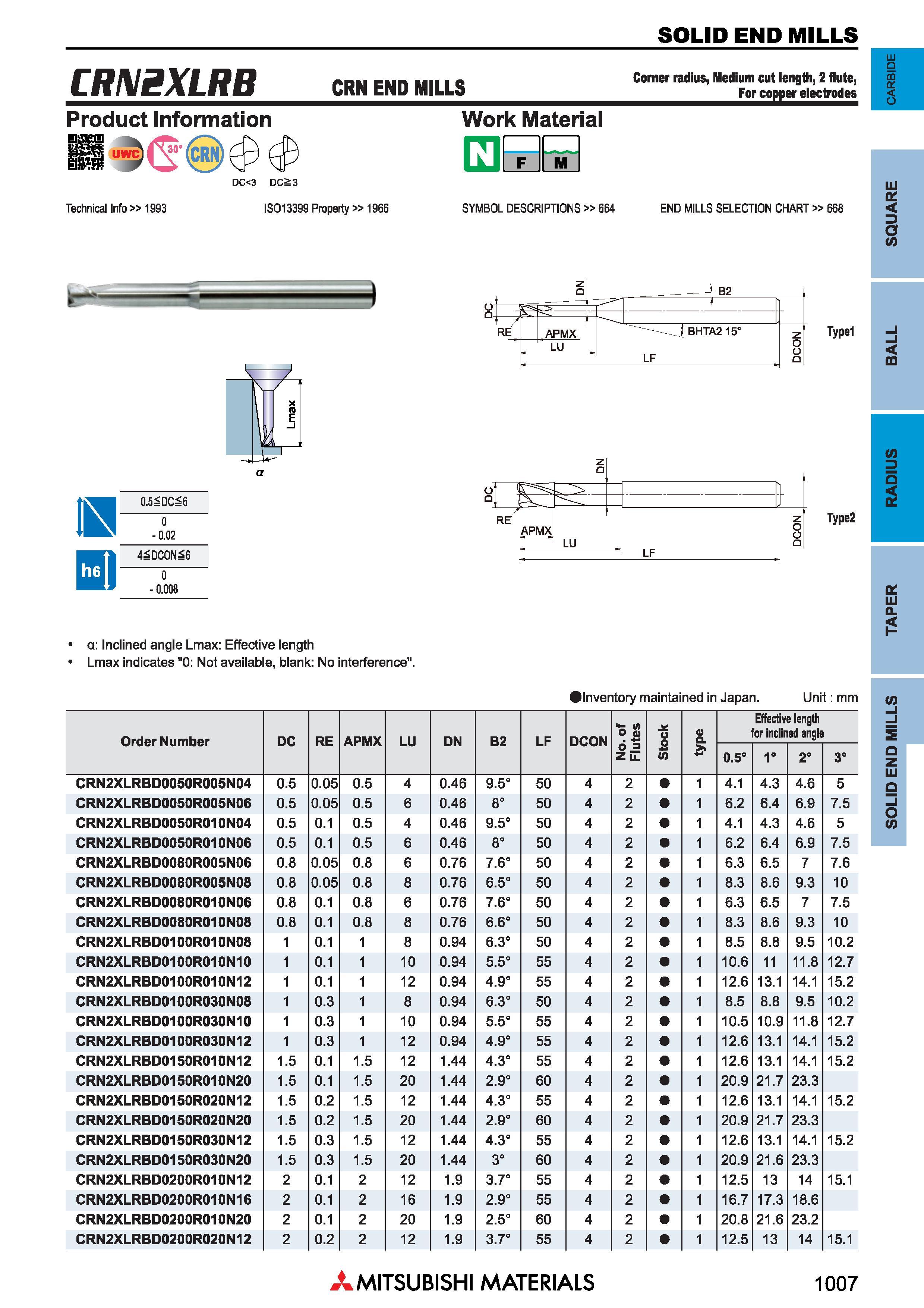

Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ CRNEXLRB CRN END MILLS Corner radius, Medium cut length, 2 flute, For copper electrodes Product Information m Ul 00&r Technical Info 1993 130 CRN Обрабатываемые материалы Work Material G M DC<3 DC a 3 ISO 13399 Property 1966 SYMBOL DESCRIPTIONS 664 END MILLS SELECTION CHART 668 a 1 0.5 DC 6 o ’ - 0.02 h61 4±=DCON 6 o -0.008 - I re' APMX LF DCON LU a: Inclined angle Lmax: Effective length Lmax indicates "0: Not available, blank: No interference". Inventory maintained in Japan. Unit: mm Обозначение Order Number DC RE APMX LU DN B2 LF DCON No. of Flutes Stock type Effective length for inclined angle 0.5° 1° 2° 3° CRN2XLRBD0050R005N04 0.5 0.05 0.5 4 0.46 9.5° 50 4 2 1 4.1 4.3 4.6 5 CRN2XLRBD0050R005N06 0.5 0.05 0.5 6 0.46 8° 50 4 2 1 6.2 6.4 6.9 7.5 CRN2XLRBD0050R010N04 0.5 0.1 0.5 4 0.46 9.5° 50 4 2 1 4.1 4.3 4.6 5 CRN2XLRBD0050R010N06 0.5 0.1 0.5 6 0.46 8° 50 4 2 1 6.2 6.4 6.9 7.5 CRN2XLRBD0080R005N06 0.8 0.05 0.8 6 0.76 7.6° 50 4 2 1 6.3 6.5 7 7.6 CRN2XLRBD0080R005N08 0.8 0.05 0.8 8 0.76 6.5° 50 4 2 1 8.3 8.6 9.3 10 CRN2XLRBD0080R010N06 0.8 0.1 0.8 6 0.76 7.6° 50 4 2 1 6.3 6.5 7 7.5 CRN2XLRBD0080R010N08 0.8 0.1 0.8 8 0.76 6.6° 50 4 2 1 8.3 8.6 9.3 10 CRN2XLRBD0100R010N08 1 0.1 1 8 0.94 6.3° 50 4 2 1 8.5 8.8 9.5 10.2 CRN2XLRBD0100R010N10 1 0.1 1 10 0.94 5.5° 55 4 2 1 10.6 11 11.8 12.7 CRN2XLRBD0100R010N12 1 0.1 1 12 0.94 4.9° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0100R030N08 1 0.3 1 8 0.94 o CO CD 50 4 2 1 8.5 8.8 9.5 10.2 CRN2XLRBD0100R030N10 1 0.3 1 10 0.94 5.5° 55 4 2 1 10.5 10.9 11.8 12.7 CRN2XLRBD0100R030N12 1 0.3 1 12 0.94 4.9° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R010N12 1.5 0.1 1.5 12 1.44 4.3° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R010N20 1.5 0.1 1.5 20 1.44 2.9° 60 4 2 1 20.9 21.7 23.3 CRN2XLRBD0150R020N12 1.5 0.2 1.5 12 1.44 4.3° 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R020N20 1.5 0.2 1.5 20 1.44 2.9° 60 4 2 1 20.9 21.7 23.3 CRN2XLRBD0150R030N12 1.5 0.3 1.5 12 1.44 o CO Sf- 55 4 2 1 12.6 13.1 14.1 15.2 CRN2XLRBD0150R030N20 1.5 0.3 1.5 20 1.44 3° 60 4 2 1 20.9 21.6 23.3 CRN2XLRBD0200R010N12 2 0.1 2 12 1.9 3.7° 55 4 2 1 12.5 13 14 15.1 CRN2XLRBD0200R010N16 2 0.1 2 16 1.9 2.9° 55 4 2 1 16.7 17.3 18.6 CRN2XLRBD0200R010N20 2 0.1 2 20 1.9 2.5° 60 4 2 1 20.8 21.6 23.2 CRN2XLRBD0200R020N12 2 0.2 2 12 1.9 3.7° 55 4 2 1 12.5 13 14 15.1 Mitsubishi Materials 1007 Концевые фрезы Mitsubishi Materials по металлу SOLID END MILLS _ TAPER RADIUS BALL SQUARE carbide
