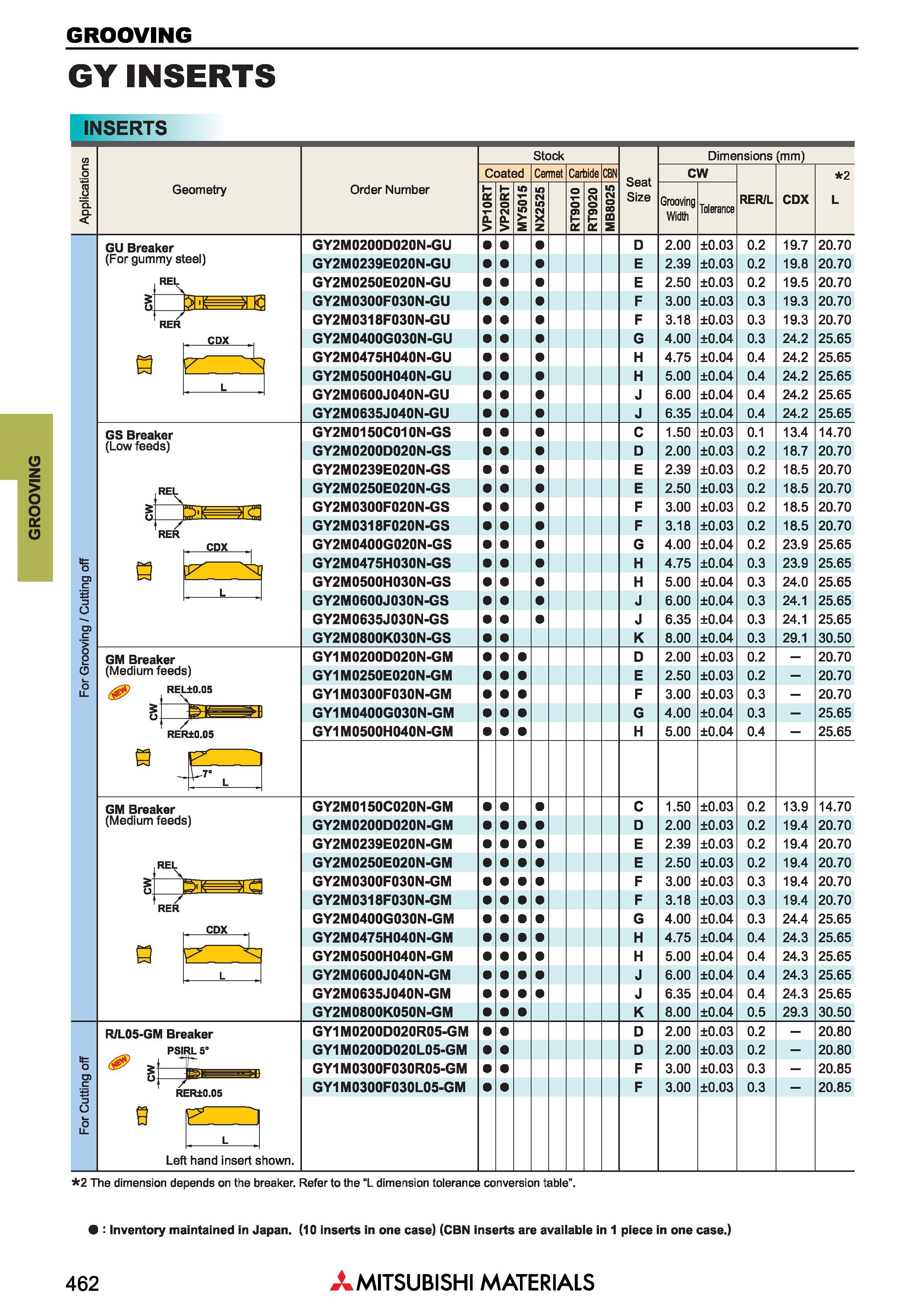

GROOVING GY INSERTS INSERTS Q. Q. < Geometry GU Breaker (For gummy steel) \ / RER Обозначение Order Number Stock Seat Size Dimensions mm) Coated Cermet Carbide CBN CW RER/L CDX 2 L VP10RT VP20RT MY5015 NX2525 RT9010 RT9020 in CM o oo ffi 2 Grooving Width Tolerance GY2M0200D020N-GU D 2.00 ±0.03 0.2 19.7 20.70 GY2M0239E020N-GU E 2.39 ±0.03 0.2 19.8 20.70 GY2M0250E020N-GU E 2.50 ±0.03 0.2 19.5 20.70 GY2M0300F030N-GU F 3.00 ±0.03 0.3 19.3 20.70 GY2M0318F030N-GU F 3.18 ±0.03 0.3 19.3 20.70 GY2M0400G030N-GU G 4.00 ±0.04 0.3 24.2 25.65 GY2M0475H040N-GU H 4.75 ±0.04 0.4 24.2 25.65 GY2M0500H040N-GU H 5.00 ±0.04 0.4 24.2 25.65 GY2M0600J040N-GU J 6.00 ±0.04 0.4 24.2 25.65 GY2M0635J040N-GU J 6.35 ±0.04 0.4 24.2 25.65 GY2M0150C010N-GS C 1.50 ±0.03 0.1 13.4 14.70 GY2M0200D020N-GS D 2.00 ±0.03 0.2 18.7 20.70 GY2M0239E020N-GS E 2.39 ±0.03 0.2 18.5 20.70 GY2M0250E020N-GS E 2.50 ±0.03 0.2 18.5 20.70 GY2M0300F020N-GS F 3.00 ±0.03 0.2 18.5 20.70 GY2M0318F020N-GS F 3.18 ±0.03 0.2 18.5 20.70 G Y2 M0400G020N -GS G 4.00 ±0.04 0.2 23.9 25.65 GY2M0475H030N-GS H 4.75 ±0.04 0.3 23.9 25.65 GY2M0500H030N-GS H 5.00 ±0.04 0.3 24.0 25.65 GY2M0600J030N-GS J 6.00 ±0.04 0.3 24.1 25.65 GY2M0635J030N-GS J 6.35 ±0.04 0.3 24.1 25.65 GY2M0800K030N-GS K 8.00 ±0.04 0.3 29.1 30.50 GY1M0200D020N-GM D 2.00 ±0.03 0.2 20.70 GY1M0250E020N-GM E 2.50 ±0.03 0.2 - 20.70 GY1M0300F030N-GM F 3.00 ±0.03 0.3 20.70 GY1M0400G030N-GM G 4.00 ±0.04 0.3 25.65 GY1M0500H040N-GM H 5.00 ±0.04 0.4 25.65 GY2M0150C020N-GM C 1.50 ±0.03 0.2 13.9 14.70 GY2M0200D020N-GM D 2.00 ±0.03 0.2 19.4 20.70 GY2M0239E020N-GM E 2.39 ±0.03 0.2 19.4 20.70 GY2M0250E020N-GM E 2.50 ±0.03 0.2 19.4 20.70 GY2M0300F030N-GM F 3.00 ±0.03 0.3 19.4 20.70 GY2M0318F030N-GM F 3.18 ±0.03 0.3 19.4 20.70 GY2M0400G030N-GM G 4.00 ±0.04 0.3 24.4 25.65 GY2M0475H040N-GM H 4.75 ±0.04 0.4 24.3 25.65 GY2M0500H040N-GM H 5.00 ±0.04 0.4 24.3 25.65 GY2M0600J040N-GM J 6.00 ±0.04 0.4 24.3 25.65 GY2M0635J040N-GM J 6.35 ±0.04 0.4 24.3 25.65 GY2M0800K050N-GM K 8.00 ±0.04 0.5 29.3 30.50 GY1M0200D020R05-GM D 2.00 ±0.03 0.2 20.80 GY1M0200D020L05-GM D 2.00 ±0.03 0.2 - 20.80 GY1M0300F030R05-GM F 3.00 ±0.03 0.3 20.85 GY1M0300F030L05-GM F 3.00 ±0.03 0.3 20.85 GS Breaker (Low feeds) \ £ / RER s z: CDX GM Breaker (Medium feeds) REL±0.Q5 GM Breaker (Medium feeds) REL RER 0 CDX R/L05-GM Breaker PSIRL 5° ft RER±0.05 Left hand insert shown. 2 The dimension depends on the breaker. Refer to the “L dimension tolerance conversion table”. Inventory maintained in Japan. (10 inserts in one case) (CBN inserts are available in 1 piece in one case.) 462 Mitsubishi Materials
